Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Headlamp Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Canada
Canada

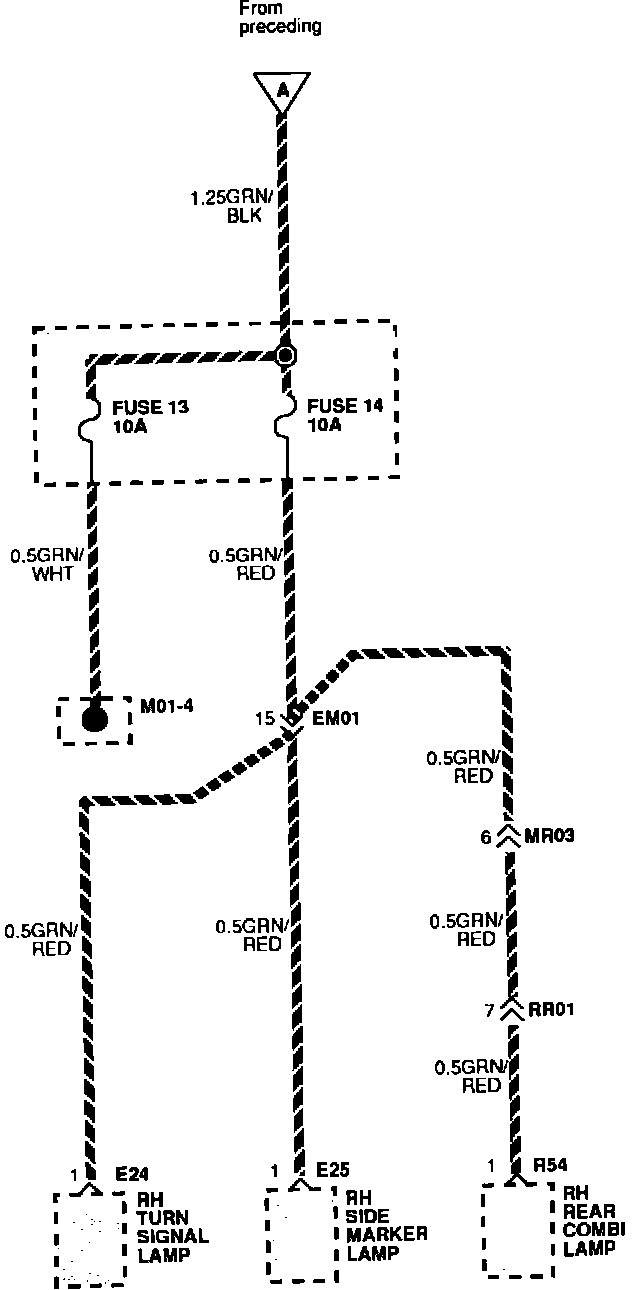

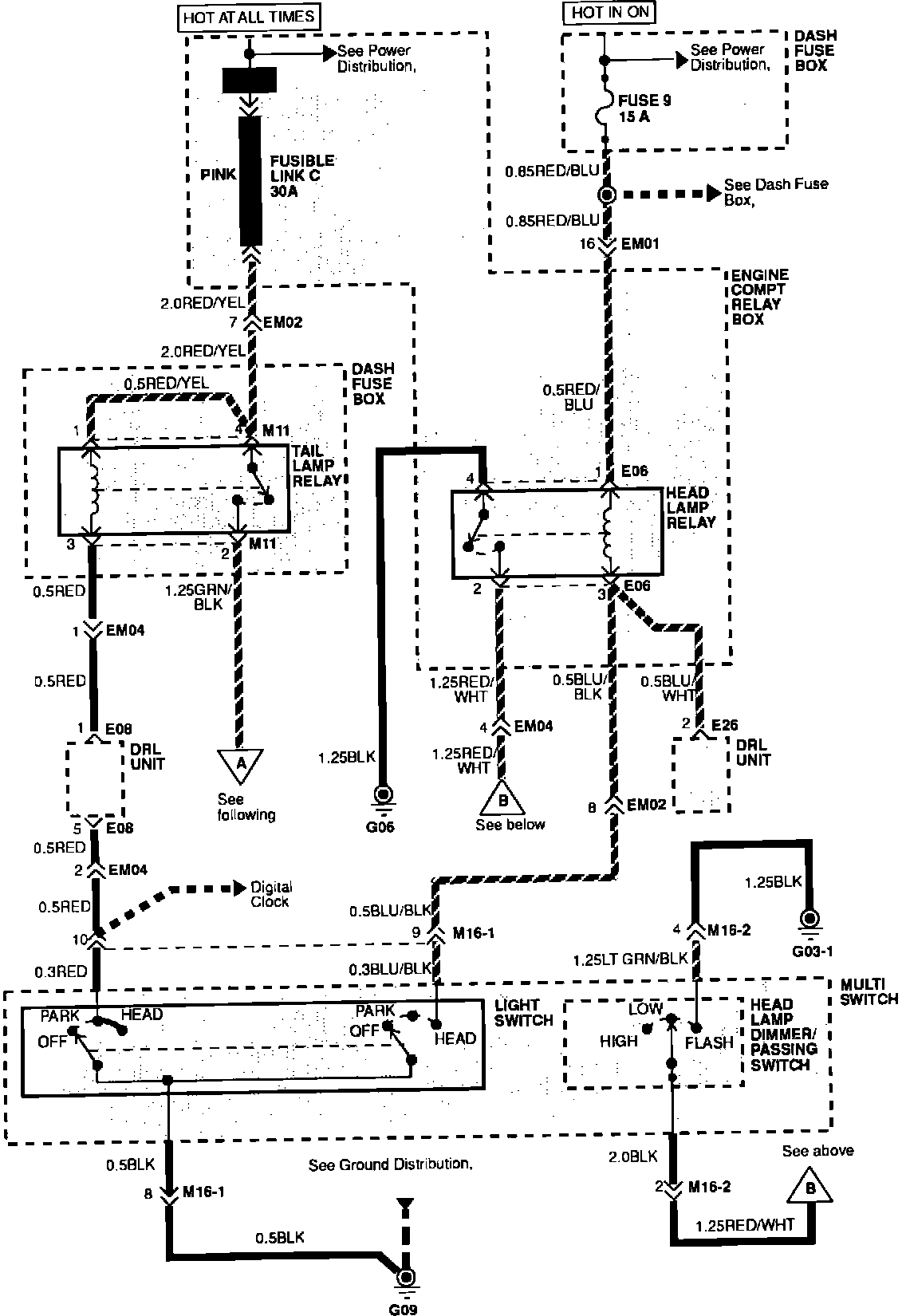

Light Switch Details (Canada):
Light Switch Details (Canada):
