Throttle Full Close Switch: Description and Operation

Idle Switch / Motor Position Sensor Locations:

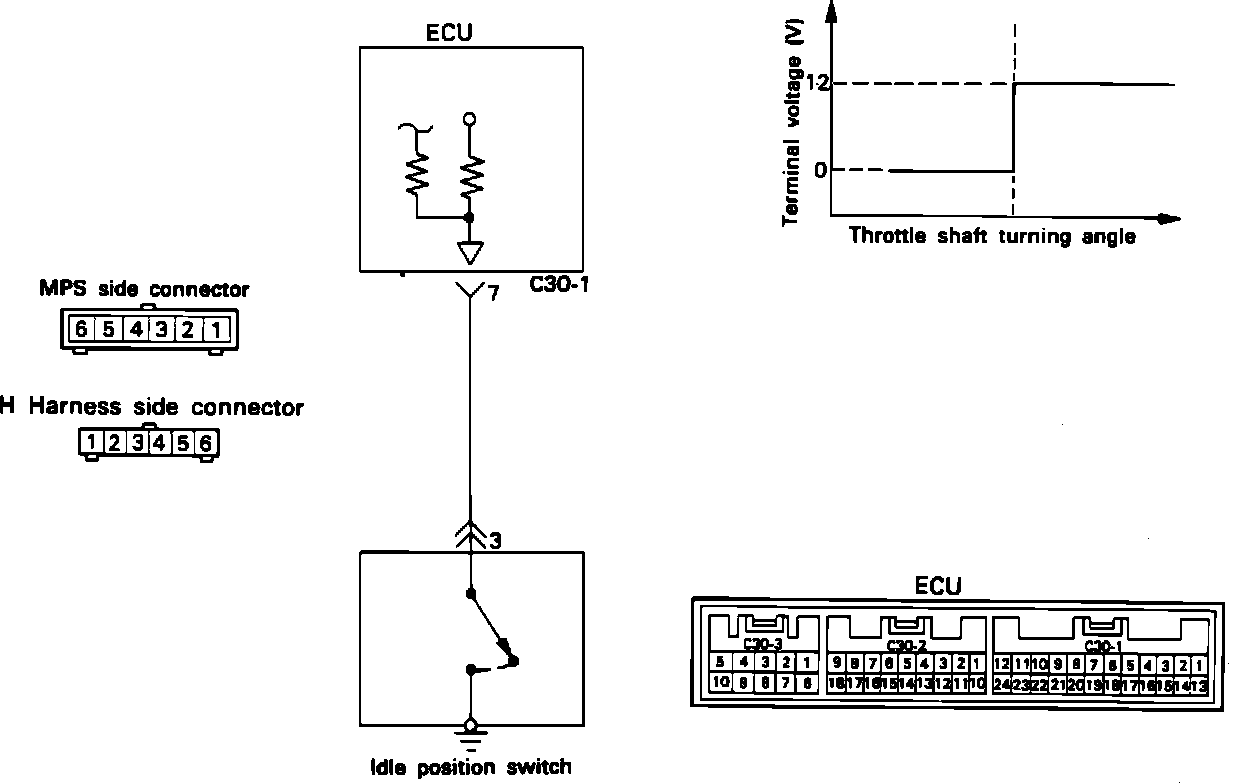

Idle Switch System:

OPERATION
The Idle Switch is a contact type switch. When the throttle valve is in the idle position, the ISC lever pushes the pin and closes the contact.


LOCATION
The switch is installed at the tip of the Idle Speed Control (ISC) servo.
