Engine Control Harness
Engine Control Harness

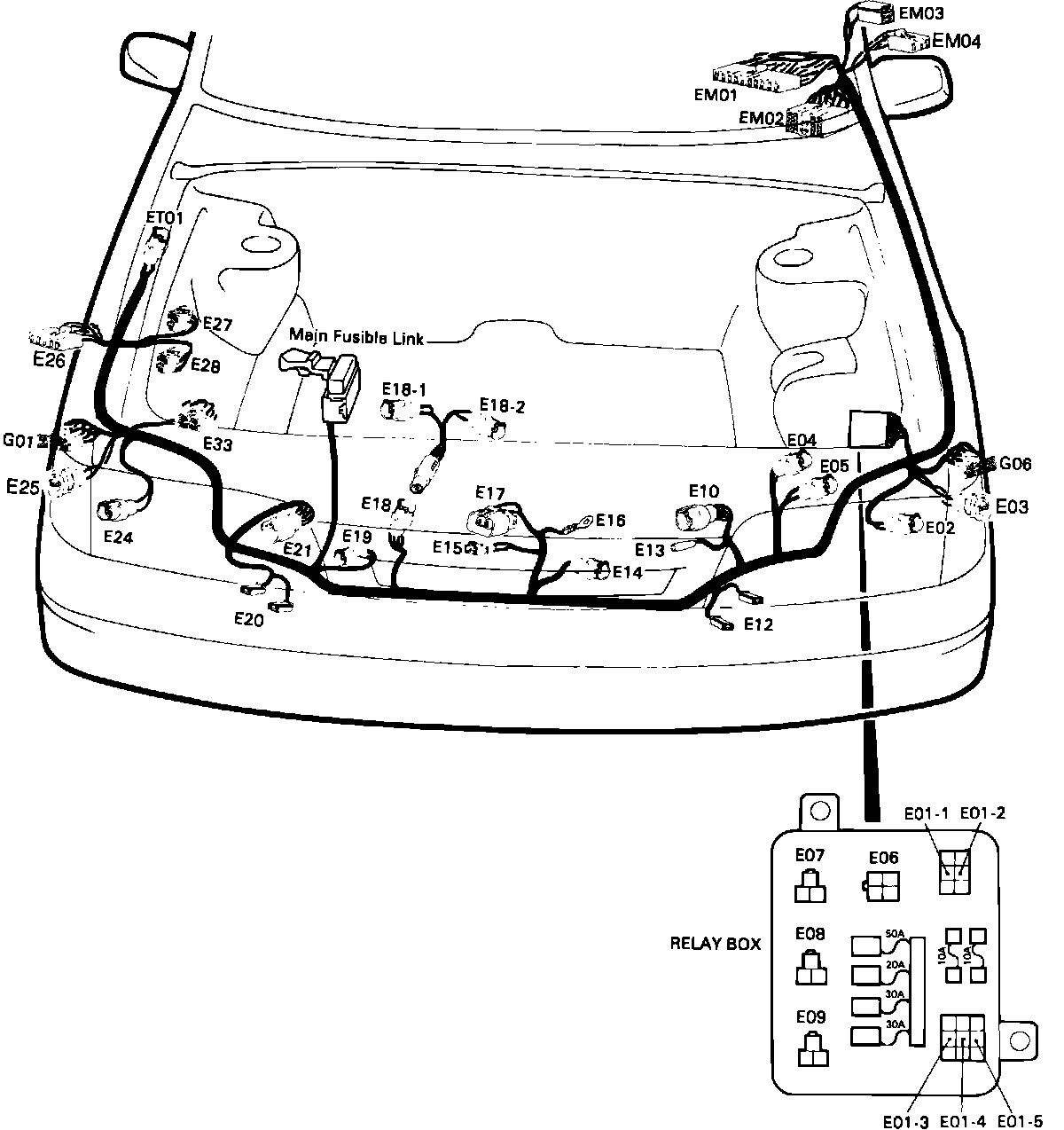

Harness Routing: Engine Compartment:
Harness Layout
Harness Routing: Engine Compartment:

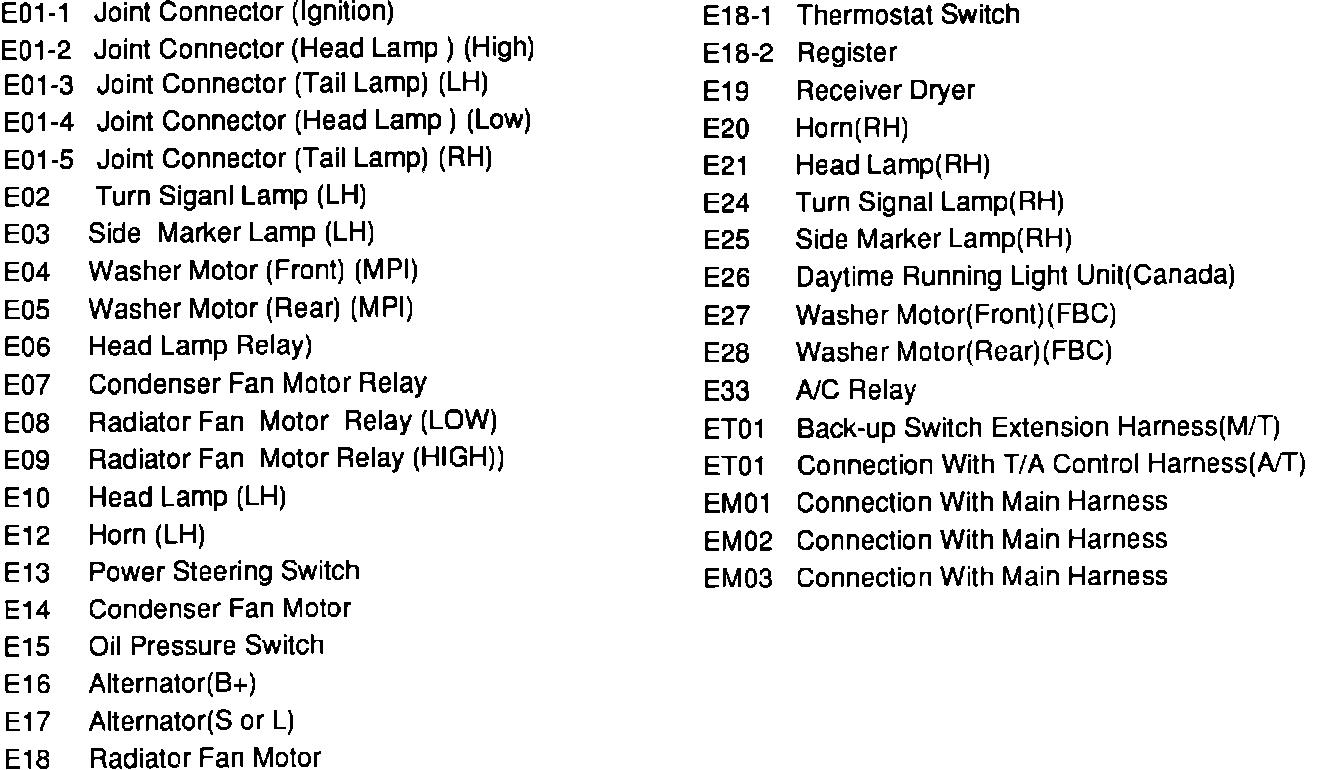

Connector Identification
