Vehicle/Component - MUT ROM Pack Applications

Group:
SPECIAL SERVICE TOOLS


Number:
92-09-001


Date:
NOVEMBER, 1992


Model:
ALL



Subject

MULTI-USE TESTER (MUT) ROM PACK VEHICLE AND COMPONENT APPLICATION CHARTS

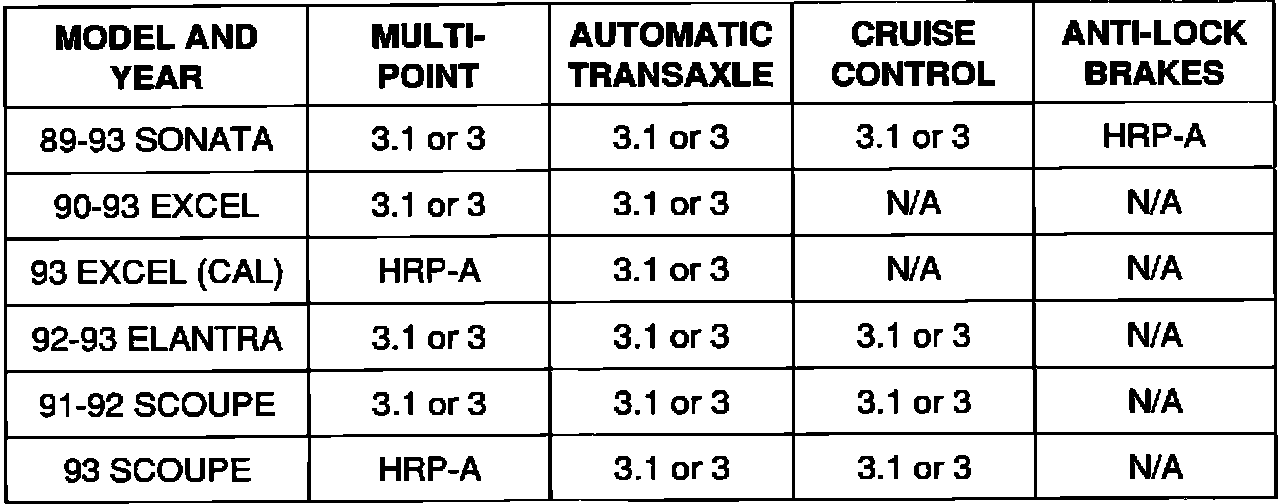

ROM - Pack Usage Chart



Note:
The HRP-A rom pack must be used with MUT adapter and system pack A.

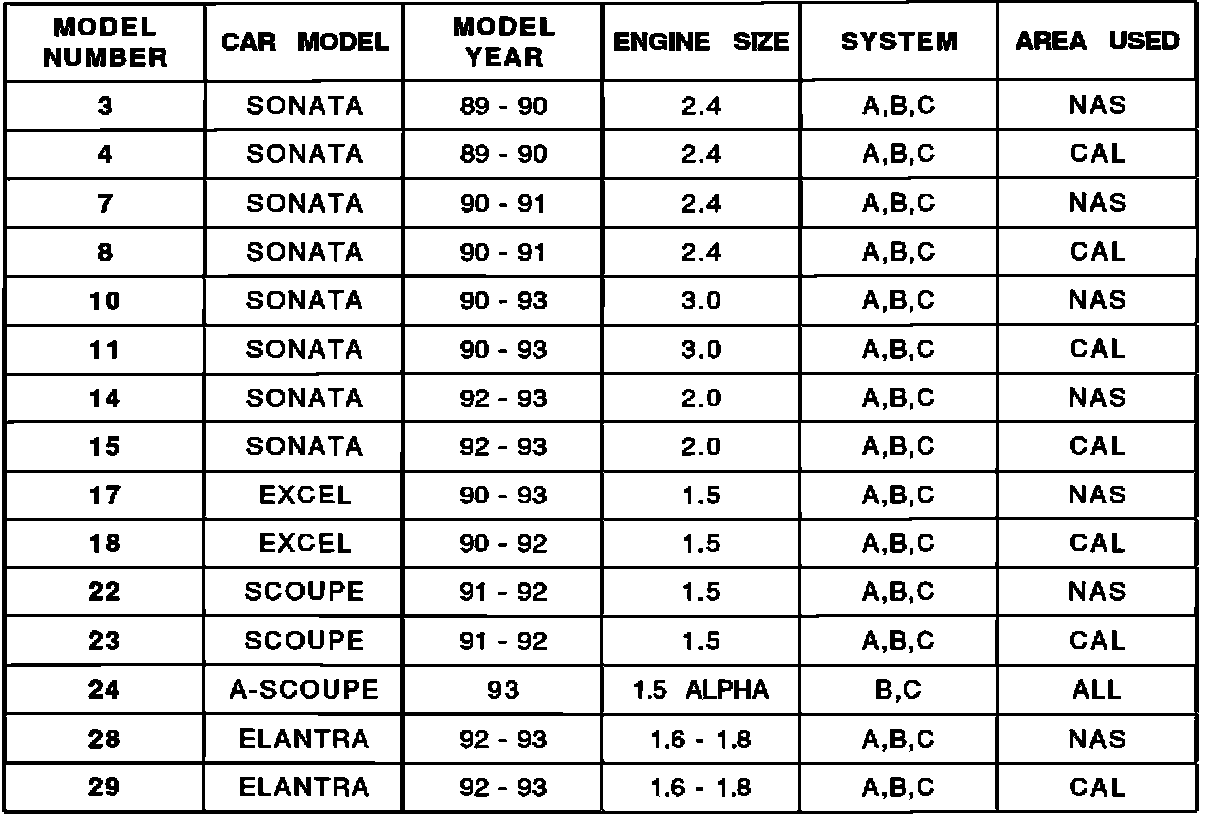

ROM - Pack Model Usage Charts

Select the correct system letter using the key below.

System Identification

A - Multi-Point Fuel Injection
B - Automatic Transaxle
C - Cruise Control
D - Anti-Lock Brake System

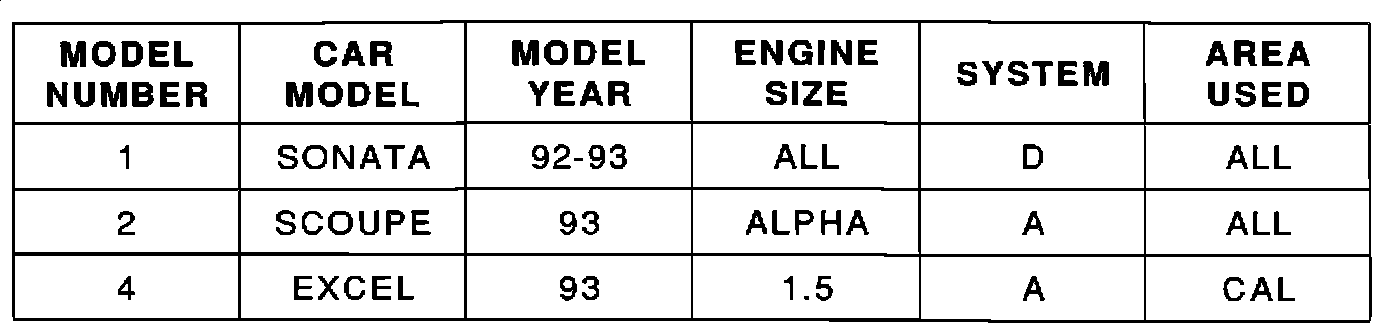

HRP-A



WARNING!!
Before inserting or removing any Rom pack unplug the Multi-Use Tester from its power source






ROM - Pack 3






ROM - Pack 3.1
