Diagrams
>>
Grounds
>>
Connector Number G01 ~ G08
Connector Number G01 ~ G08

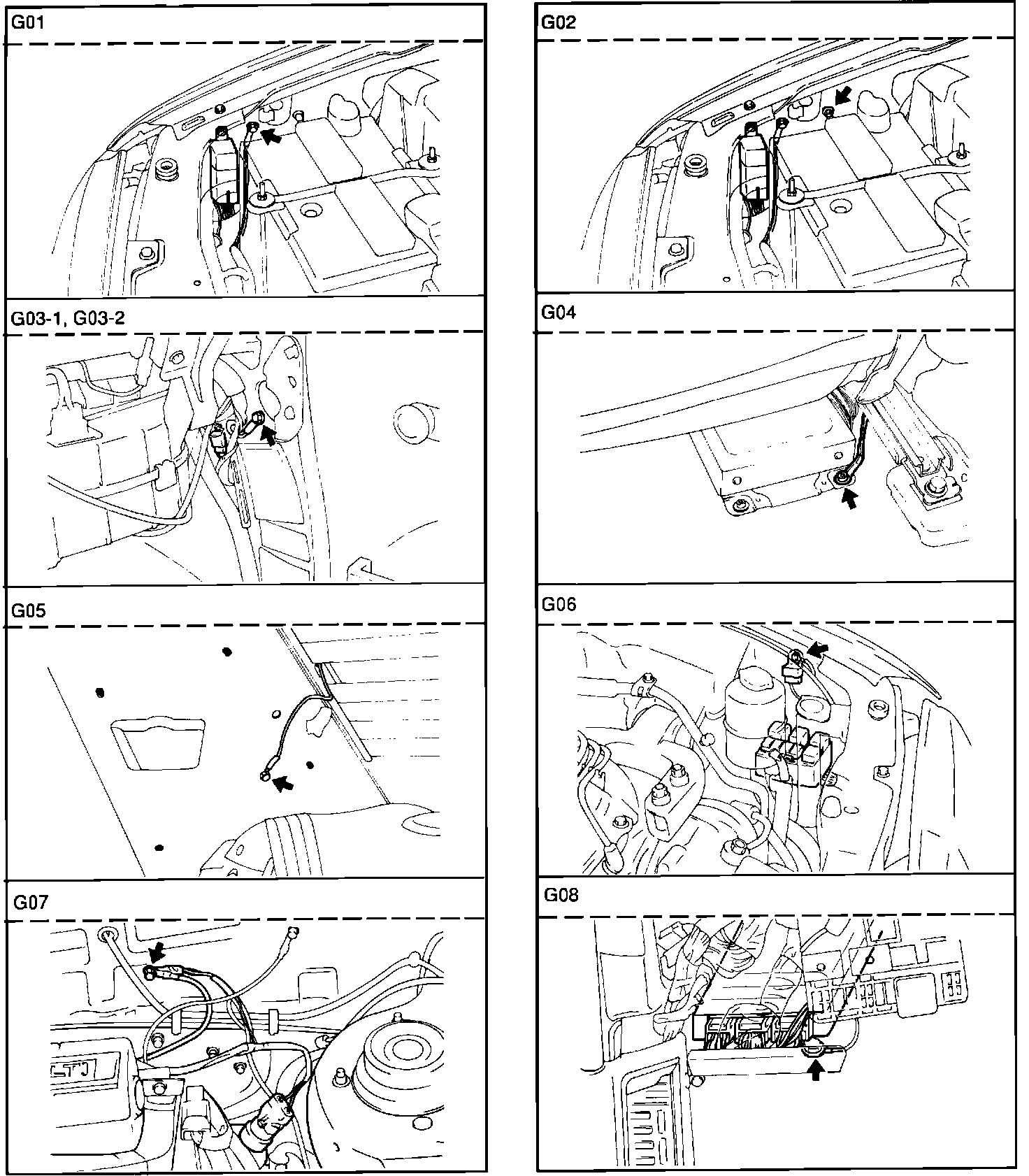

Ground Locations: G01 Thru G08:
