Instrument Cluster / Carrier

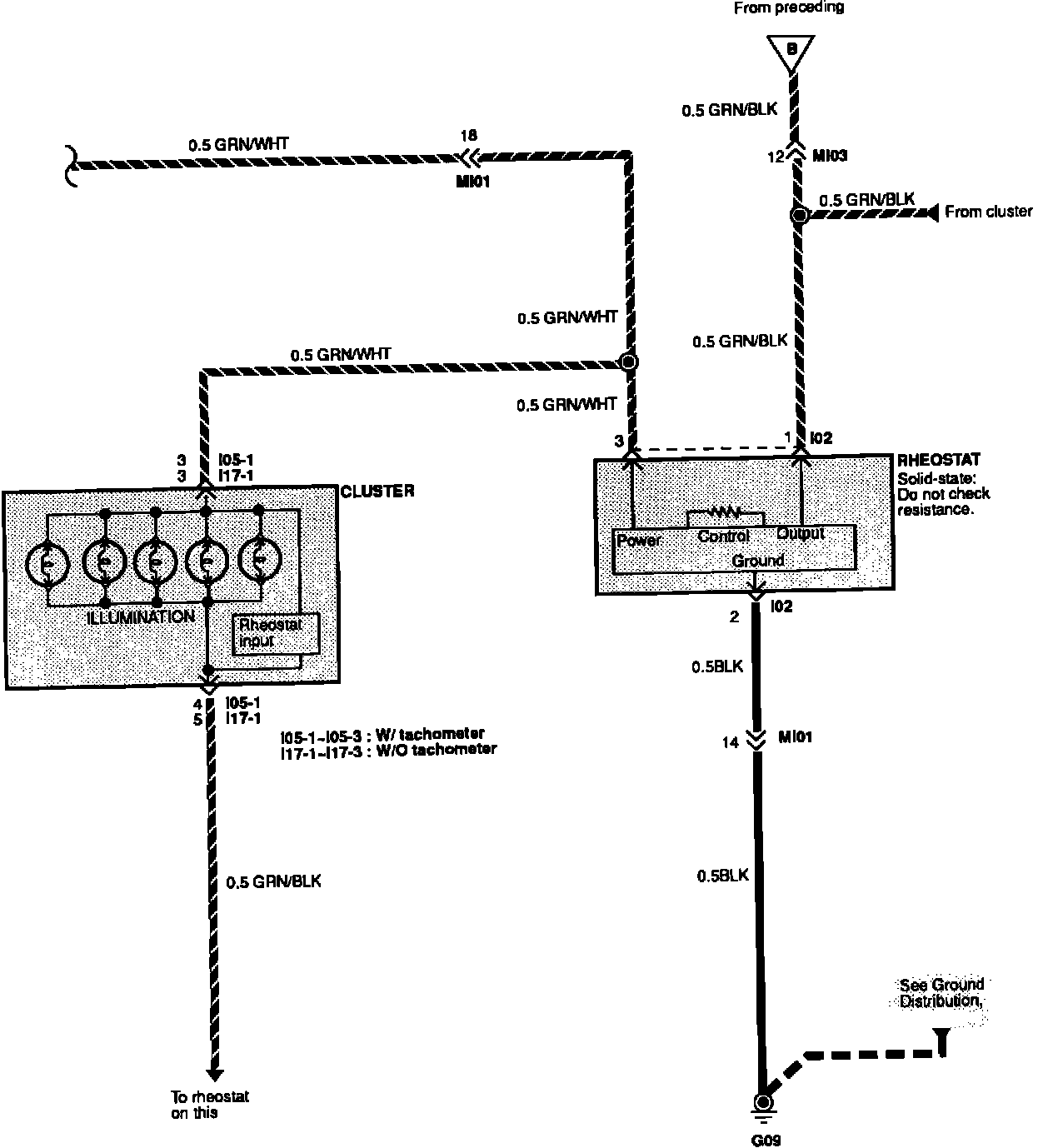

Dash, Console And Switch Lamps:

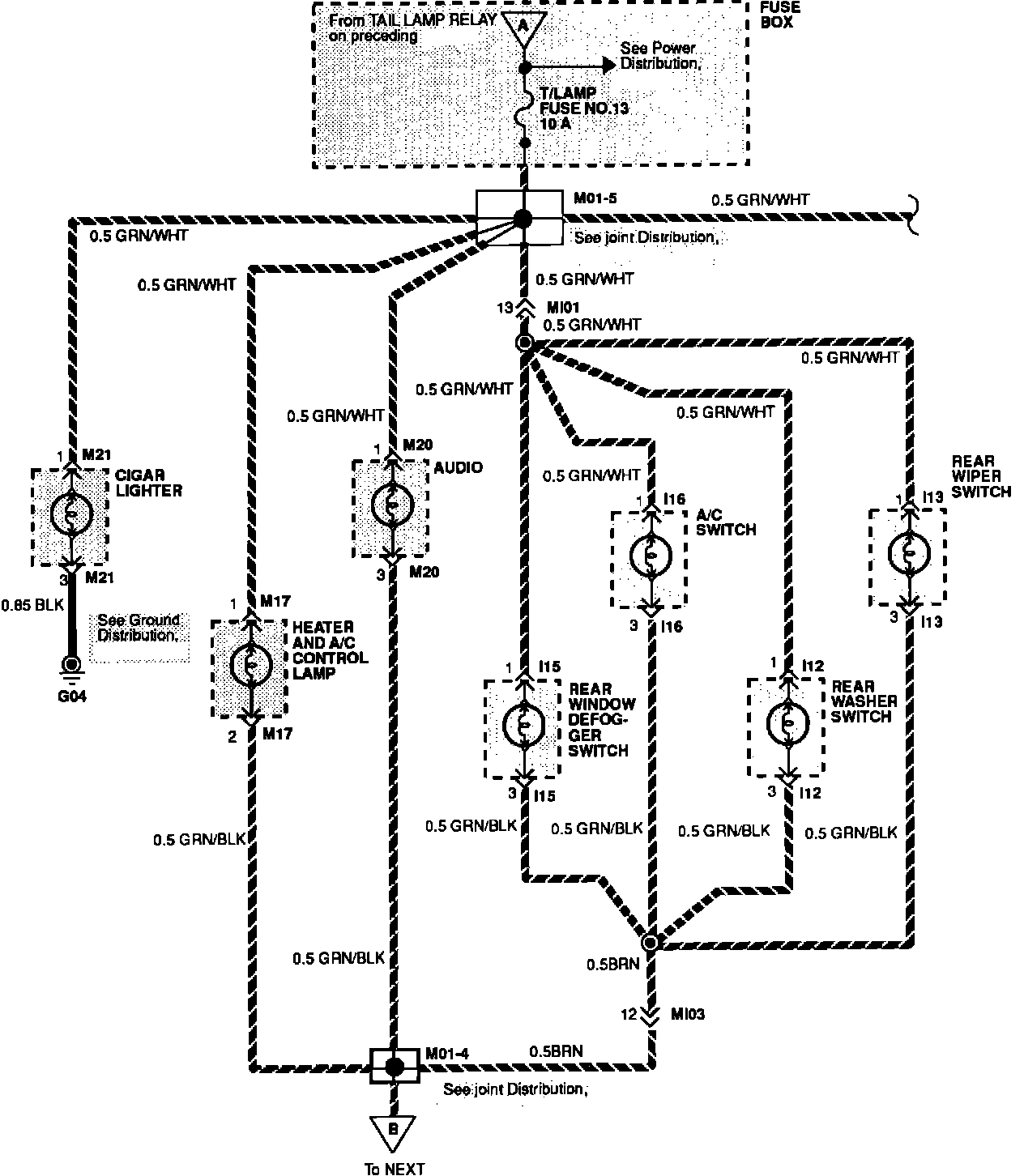

Dash, Console And Switch Lamps:



Dash, Console And Switch Lamps:
