FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Hyundai
>>
1992
>>
Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

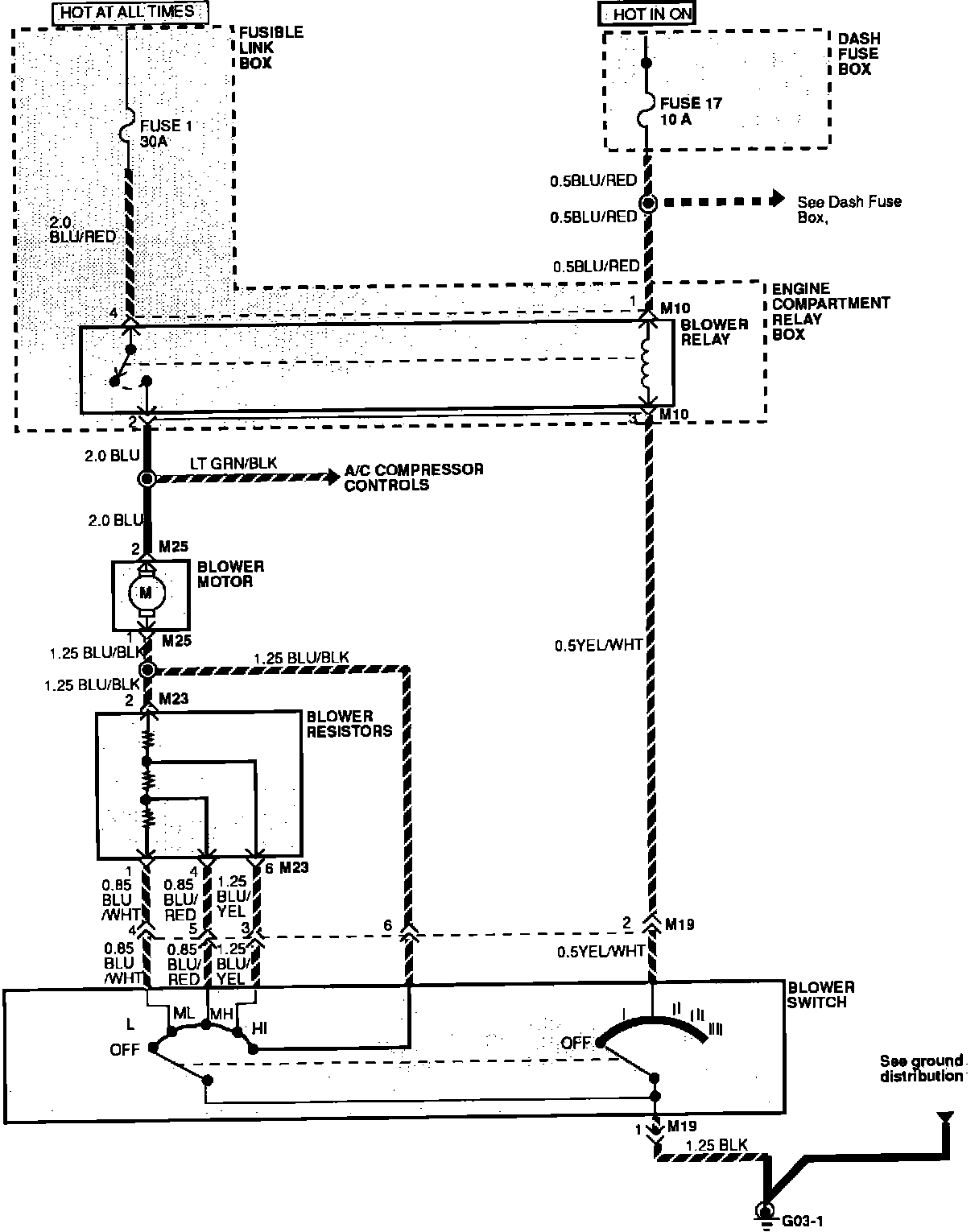

Blower Controls W/MPI:

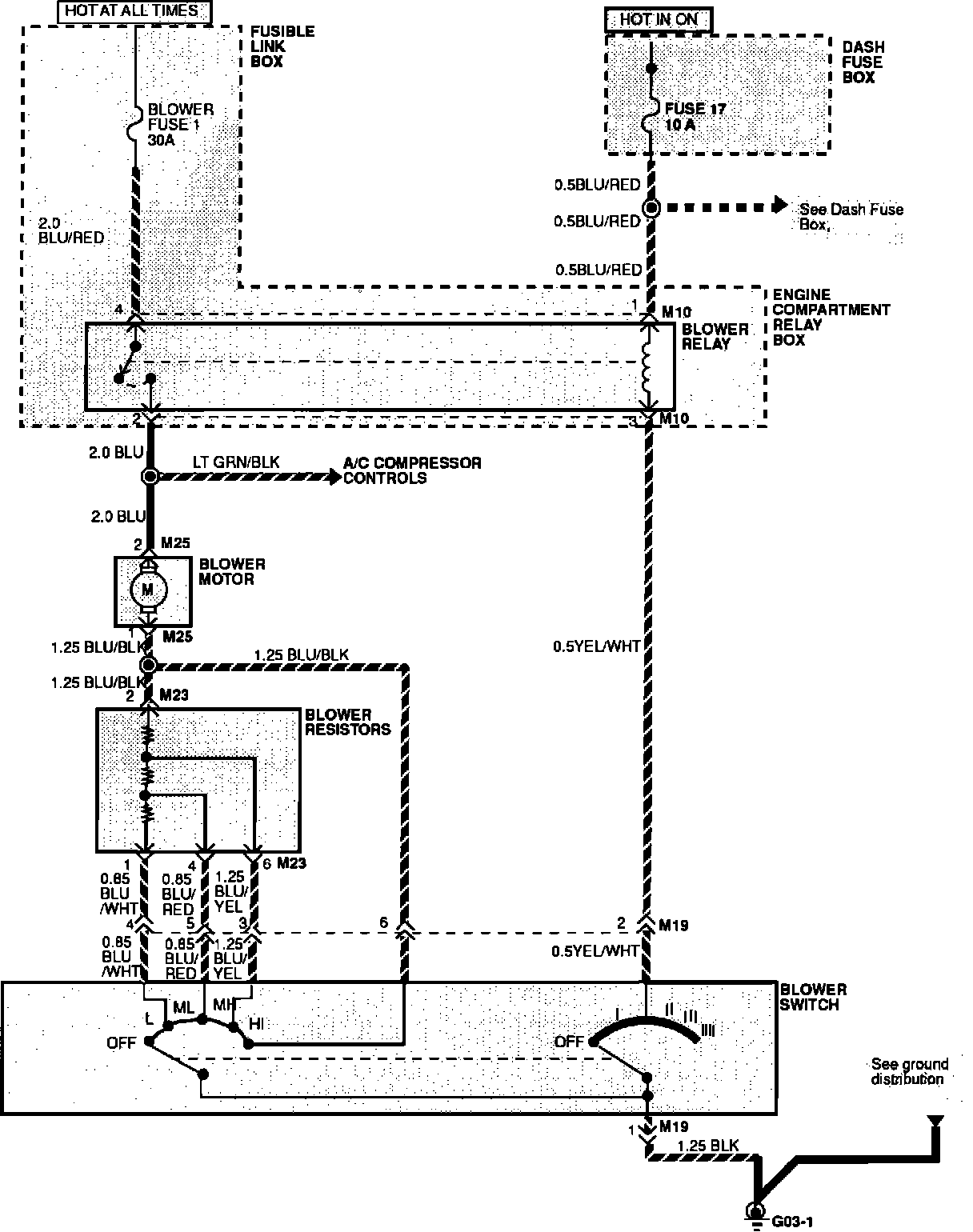

Blower Controls W/Feedback Carburetor:

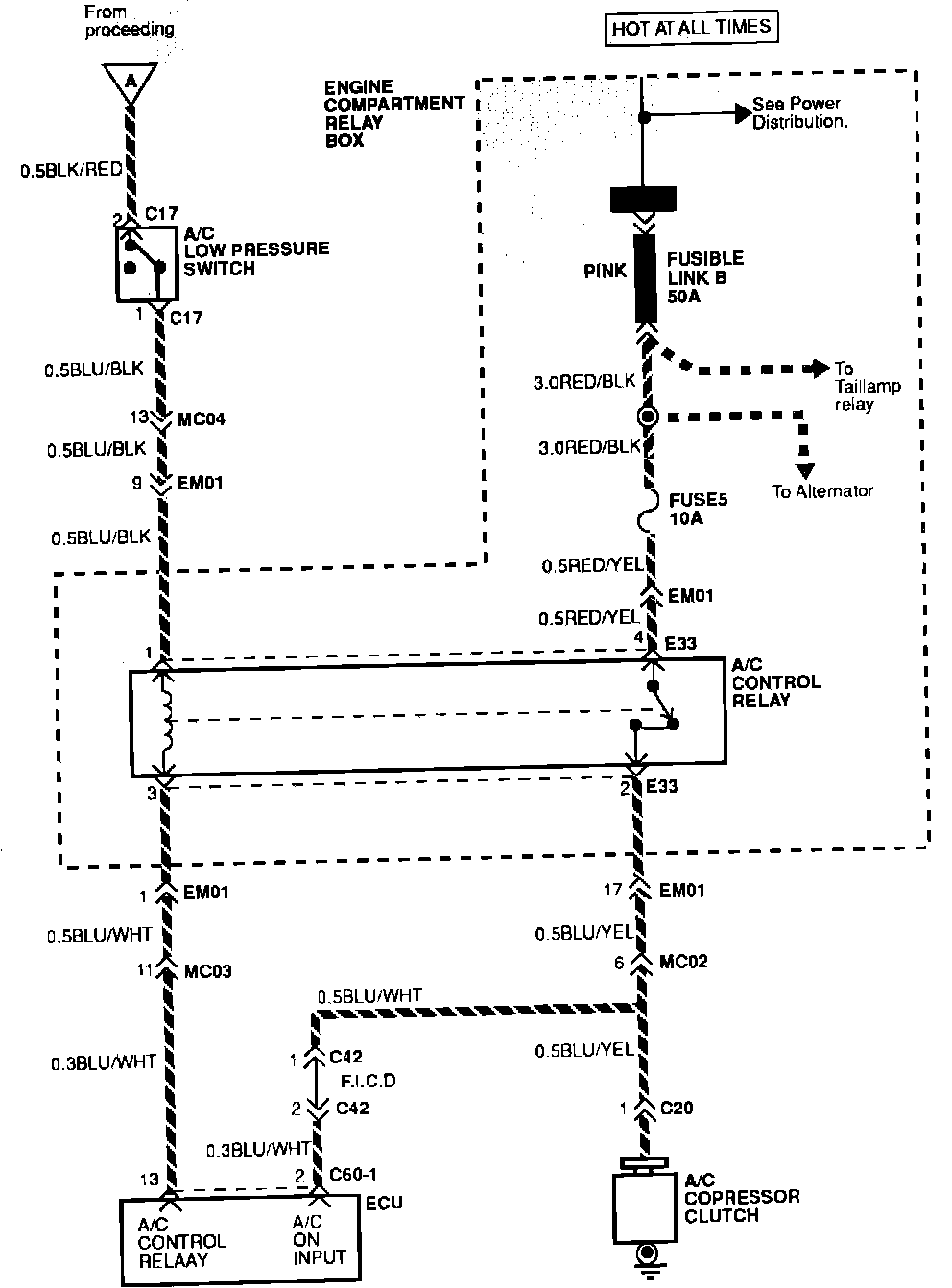

A/C Compressor Controls W/MPI:
A/C Compressor Controls W/MPI:

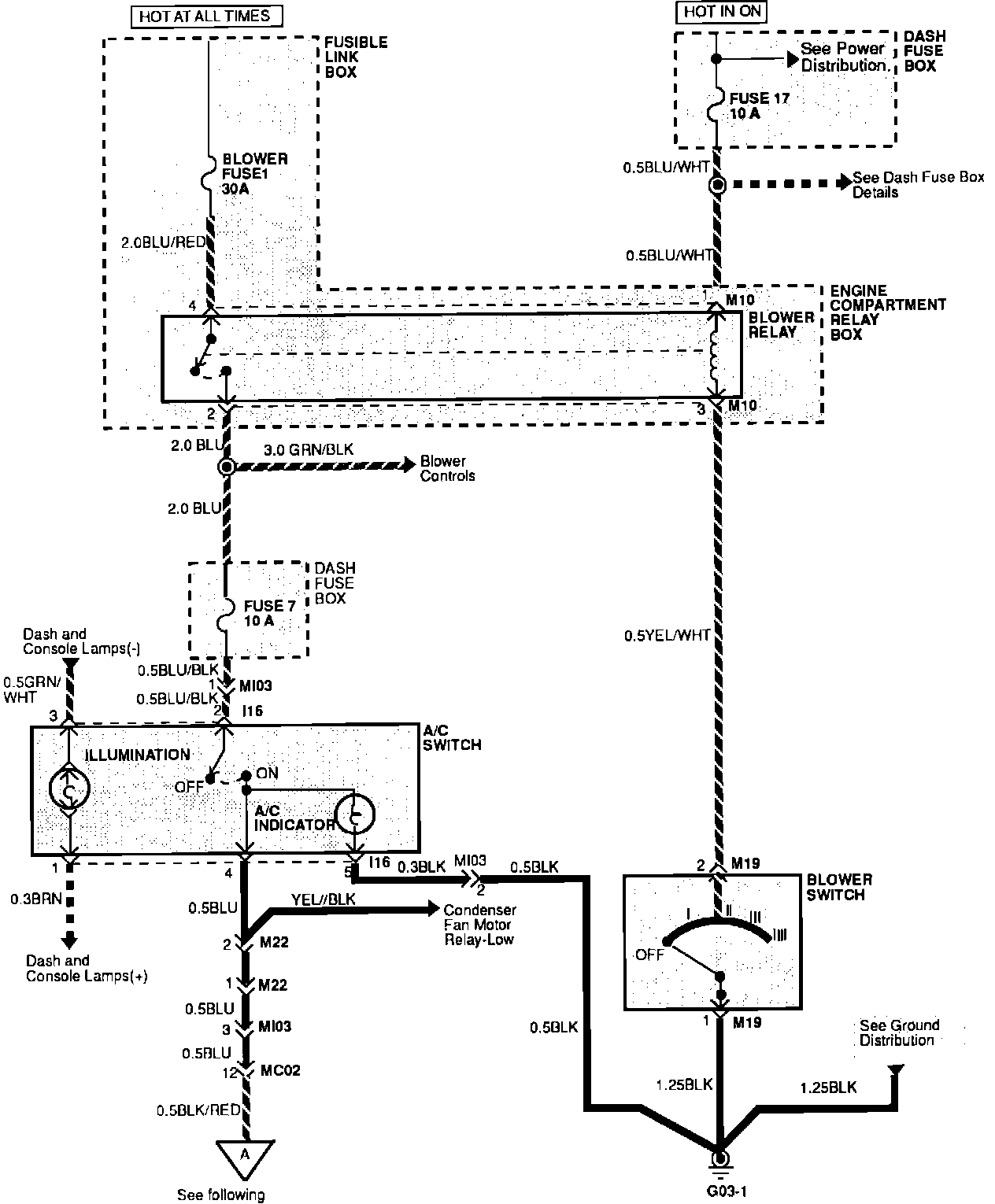

A/C Compressor Controls W/Feedback Carburetor:
A/C Compressor Controls W/Feedback Carburetor:
