Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
R01 - R23-1
R01 - R23-1

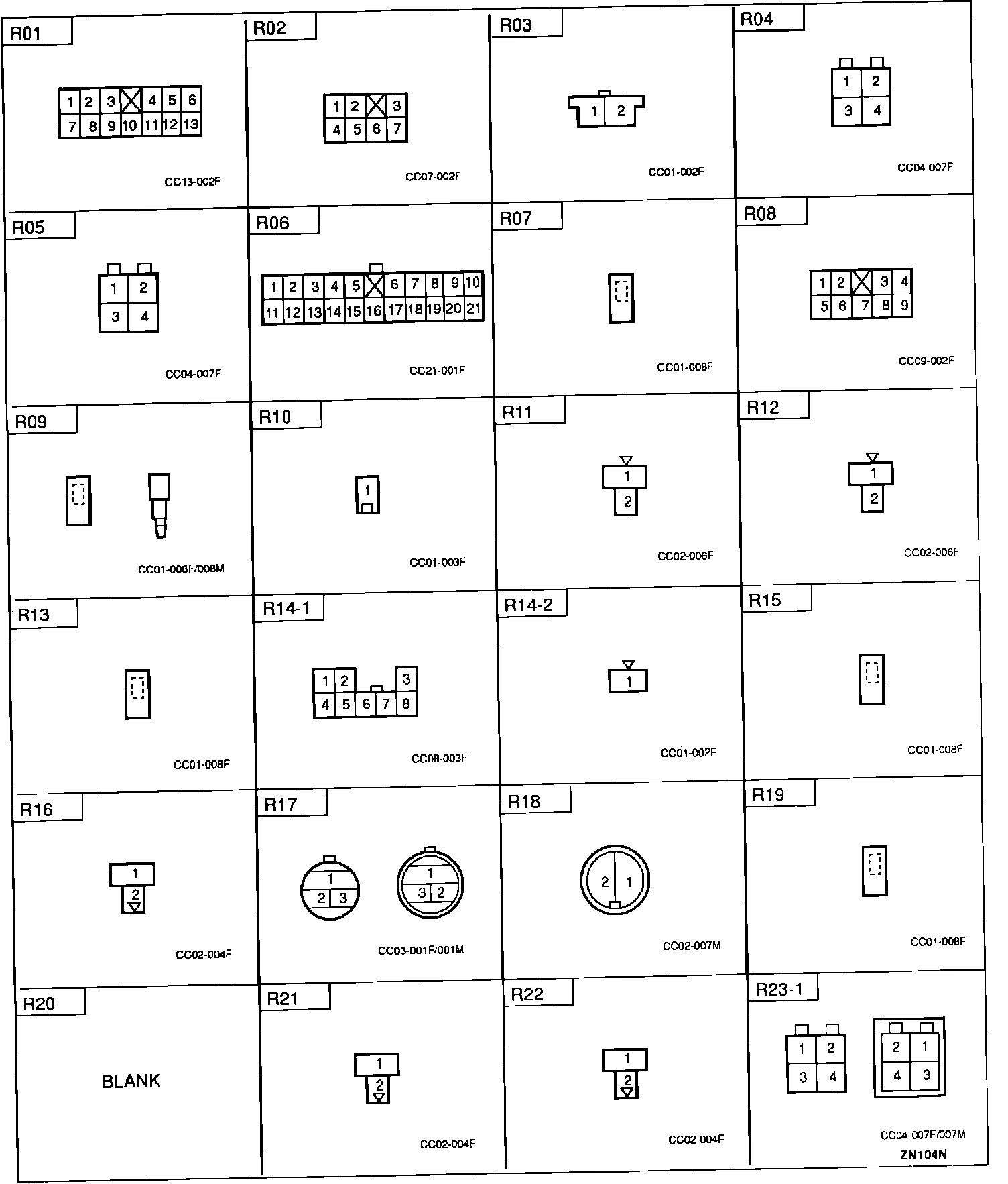

Connector Identification: R01 Thru R23-1:
