Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E26 - I05-3
E26 - I05-3

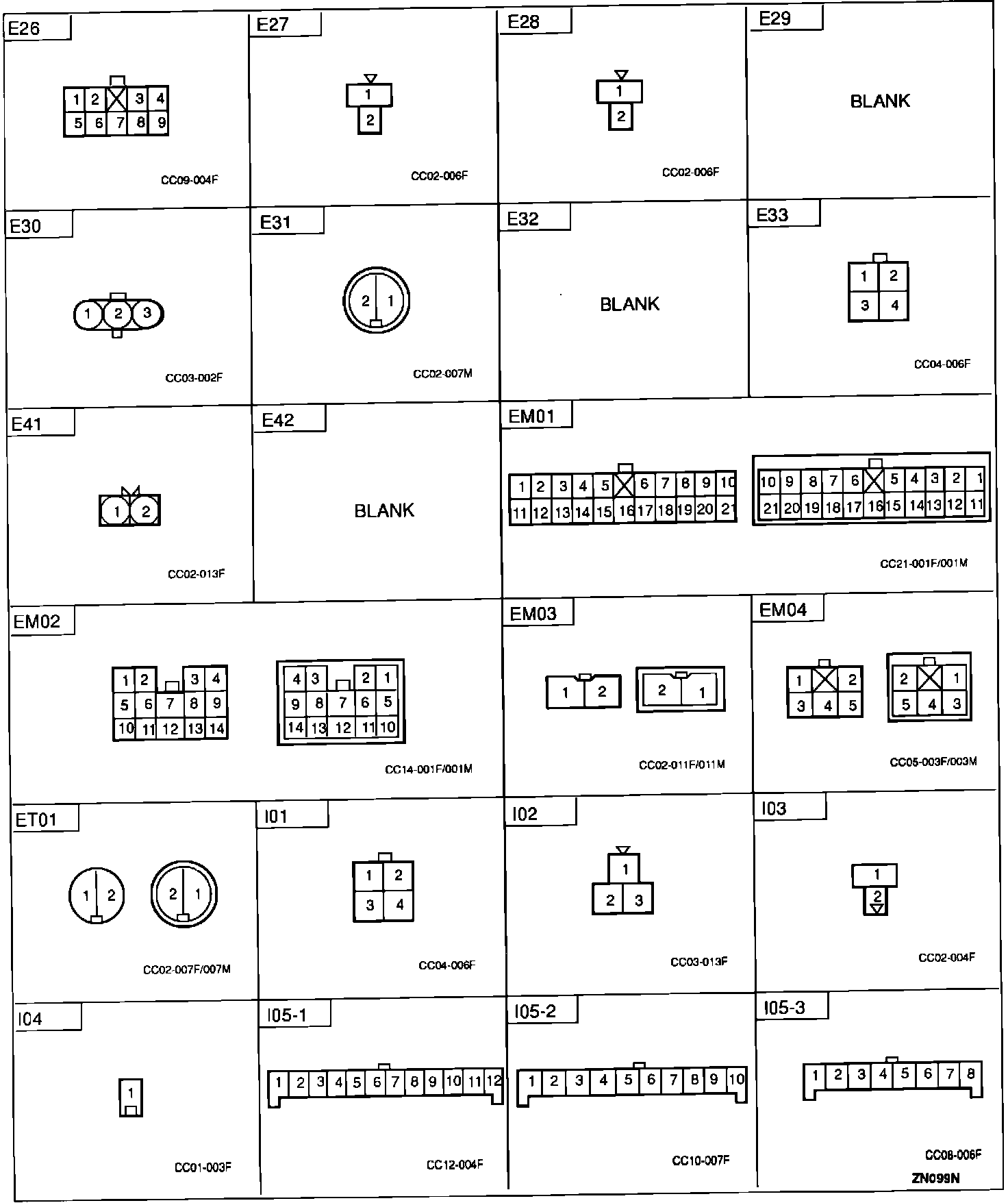

Connector Identification: E26 Thru I05-3:
