Data Link Connector: Description and Operation

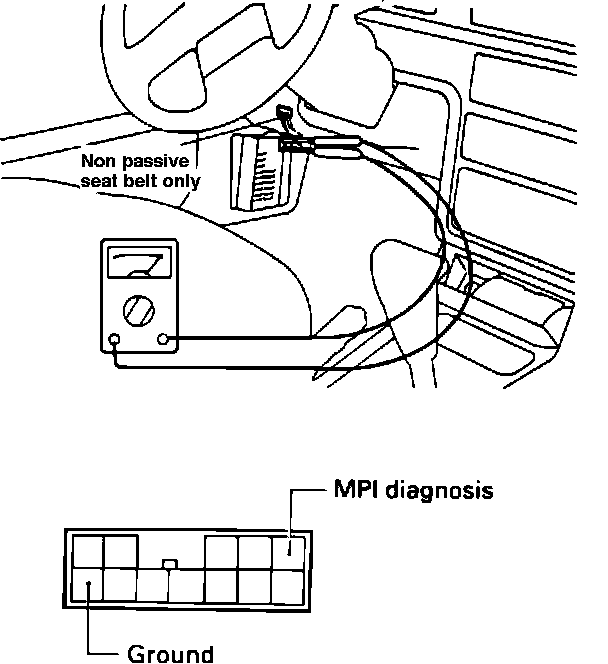

Diagnostic Connector Location:

LOCATION
located in the passenger compartment.

PURPOSE
Is used to extract fault code information as well as test systems (using multi use tester). The complete procedures for extracting these codes Is located in COMPUTERS AND CONTROL SYSTEMS / ON-BOARD DIAGNOSTICS / CHECK CONNECTOR.
