Condenser Fan/Cooling Fan - Fuse Update

9215hyundai01

Group: ELECTRICAL


Number: 91-90-024


Date: DECEMBER, 1991


Model: EXCEL, SCOUPE


Subject

ADDITION OF CONDENSER FAN FUSE

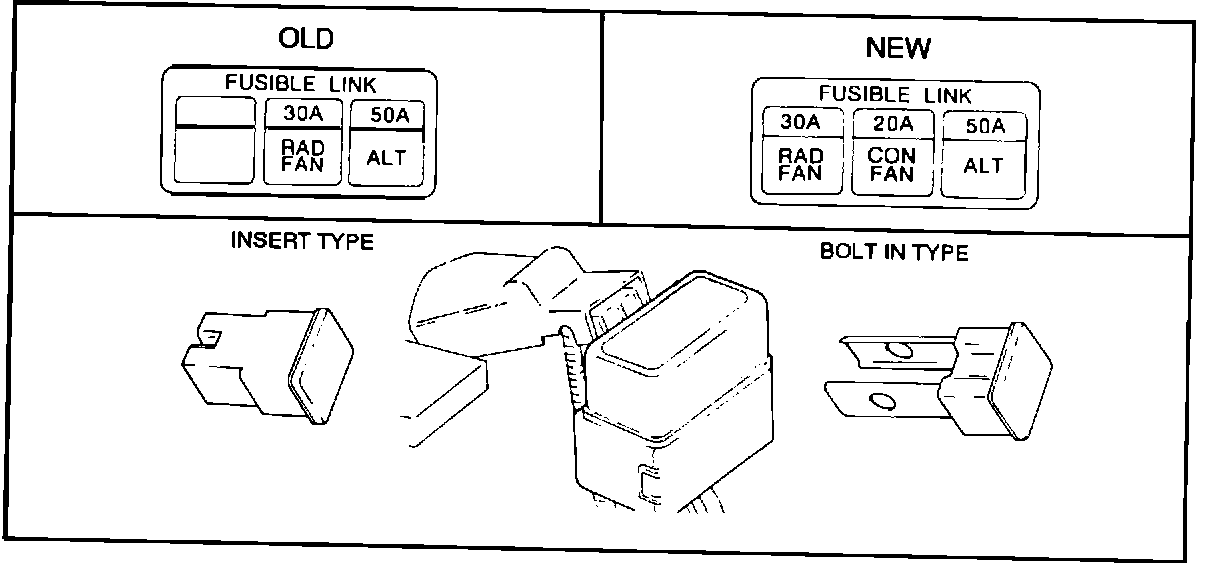

The cooling circuit has been changed as follows:

- Condenser fan fuse (20A) has been added in the main fusible link box.
- Radiator fan fuse type was changed from a push-in type to a bolt-in type.

The electrical diagram for this change is shown in the 1992 Excel Shop Manual, pages WS-18 and WS-56,and in the 1992 Scoupe Shop Manual, pages WS-18 and WS-60. However, it is not reflected in the new 1991 Scoupe ETM Update or the new 1991 Excel ETM. Please note this change in your '91 ETM'S.

EFFECTIVE DATE: Excel, March 2, 1991 Scoupe, June 15, 1991

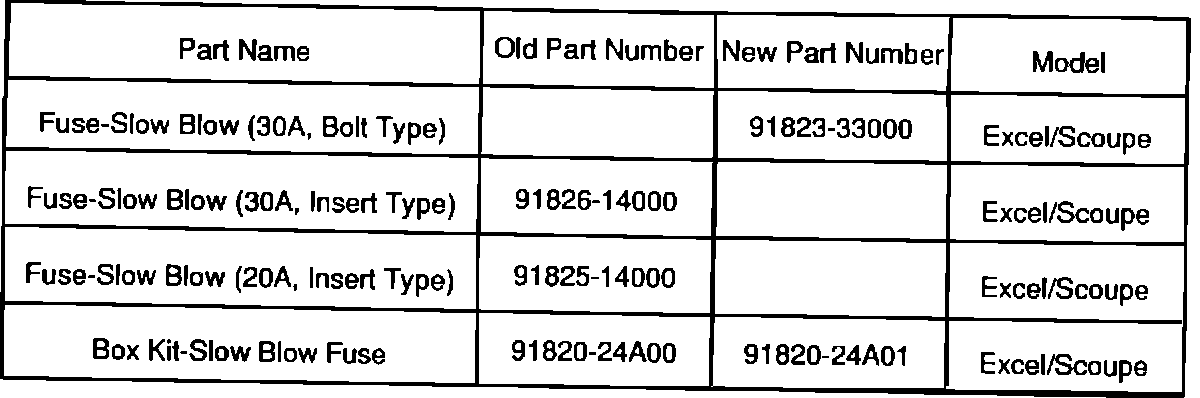

PARTS INFORMATION





INTERCHANGEABILITY, Slow blow fuse kit: Code N
