M/T - Ignition Interlock Switch Adjustment

Group
90 - ELECTRICAL

Number
91-90-023

Date
10-1991

Model
Excel 1991-1993, Scoupe 1991-1993 and Sonata 1991-1993

Subject
MANUAL TRANSMISSION IGNITION INTERLOCK SWITCH ADJUSTMENT

The ignition interlock feature on manual transaxle equipped cars requires the clutch pedal to be depressed fully before the car can be started. Incorrect adjustment of the switch may prevent the engine from cranking. Follow the procedure below to adjust the ignition interlock switch on all 1991 and later model Excel, Scoupe, and Sonata vehicles.

SERVICE PROCEDURE

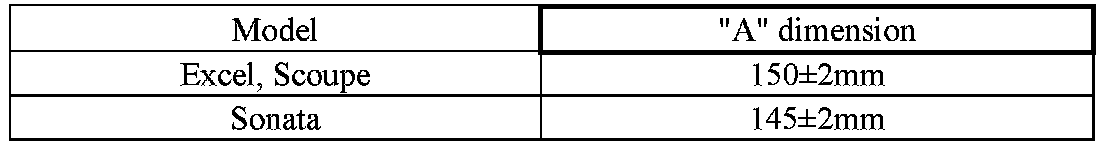

Adjust the switch so that the ignition interlock switch activates when the clutch pedal stroke reaches distance "A".
