Throttle Position Sensor: Service and Repair

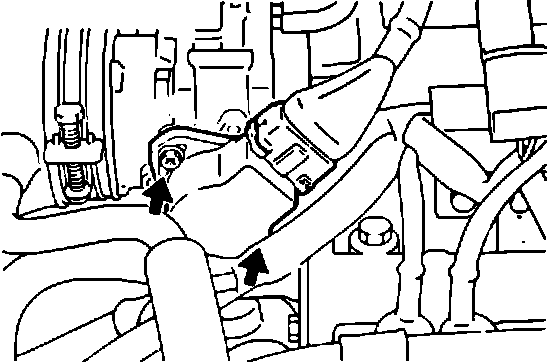

Throttle Position Sensor Mounting:

To remove the Throttle Position Sensor, proceed as follows:
NOTE: It is not necessary to remove the TPS for adjustment.
Removal:
1. Disconnect the harness connector.
2. Remove the connector from the bracket.
3. Remove the two phillips head screws.
4. Remove the sensor.


Installation:
5. Install the sensor.
6. Install the two phillips head screws.
7. Reconnect the harness connector.
8. Reinstall the connector in the bracket.
9. Refer to ADJUSTMENT PROCEDURES for adjustment to obtain the proper alignment setting.
