Excel L4-1468cc 1.5L SOHC (8 VALVE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Diagrams
>>
Diagram Information and Instructions
>>
Key to Wiring Diagrams and Symbol I.D.
Key to Wiring Diagrams and Symbol I.D.

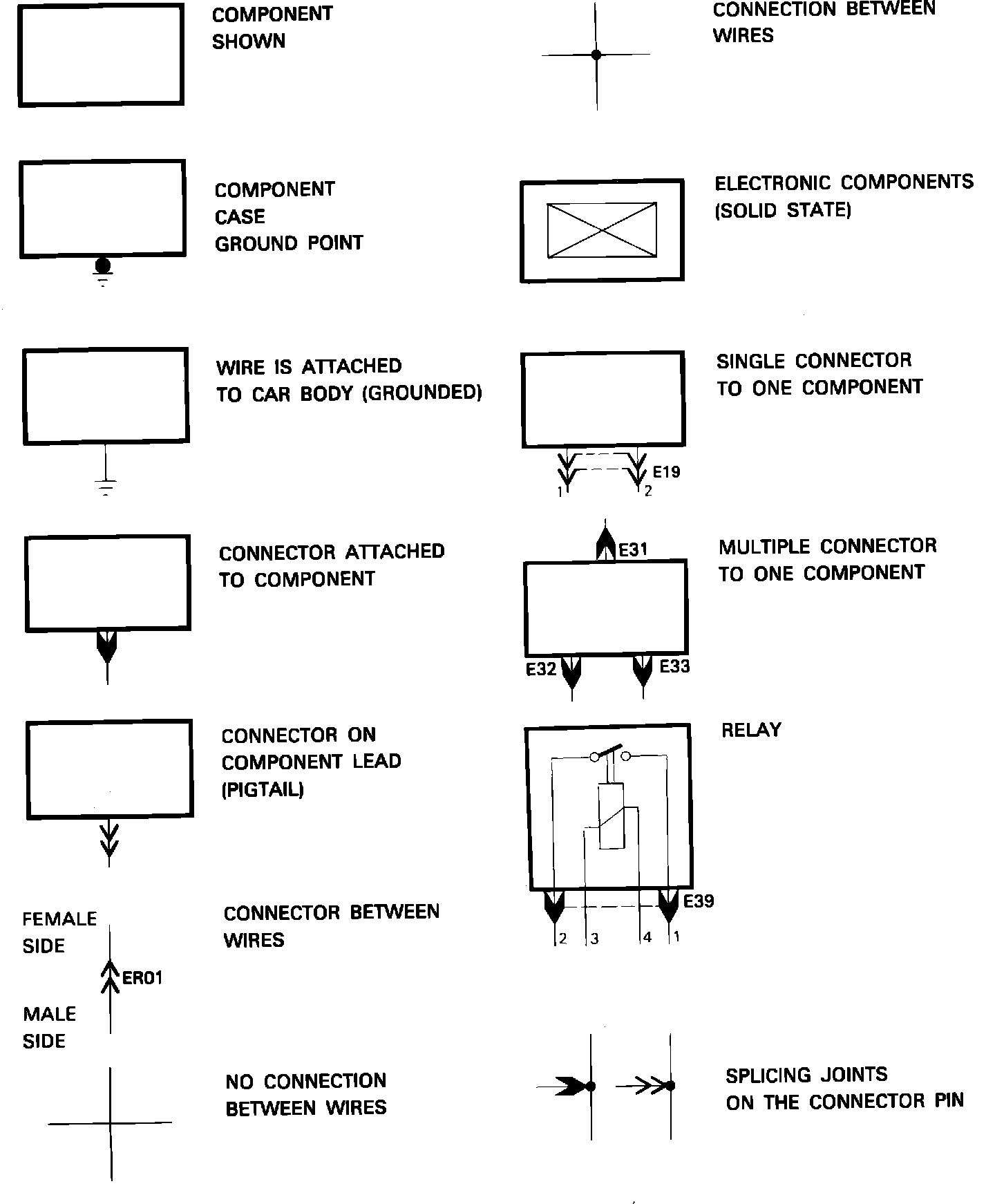

Symbol Identification - 1 of 2:
Symbol Identification And Key To Wiring Diagrams:
Symbol Identification And Key To Wiring Diagrams:
