Engine Management
>>
Connector Identification
Connector Identification

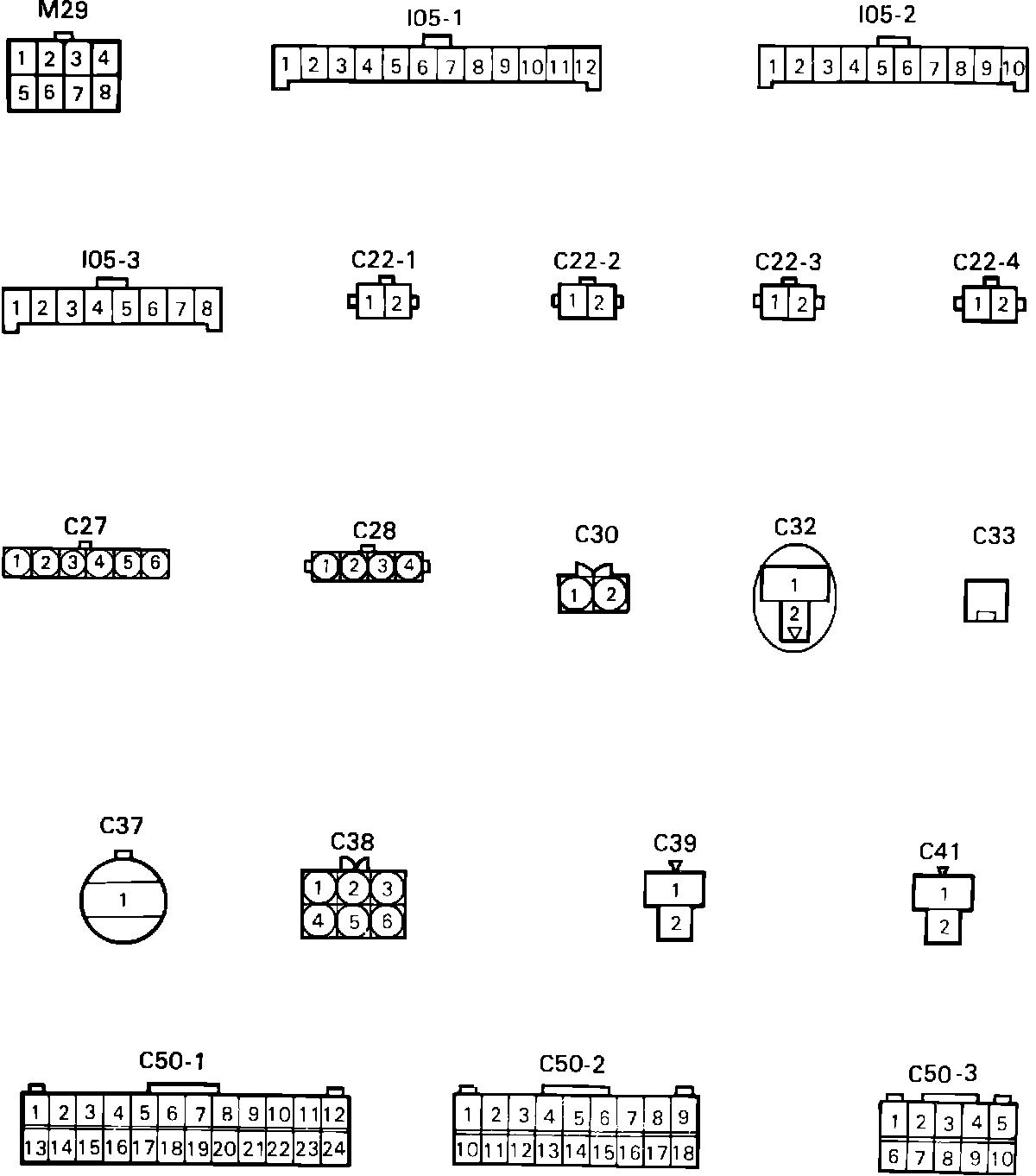

Engine Management (Connector Identification):

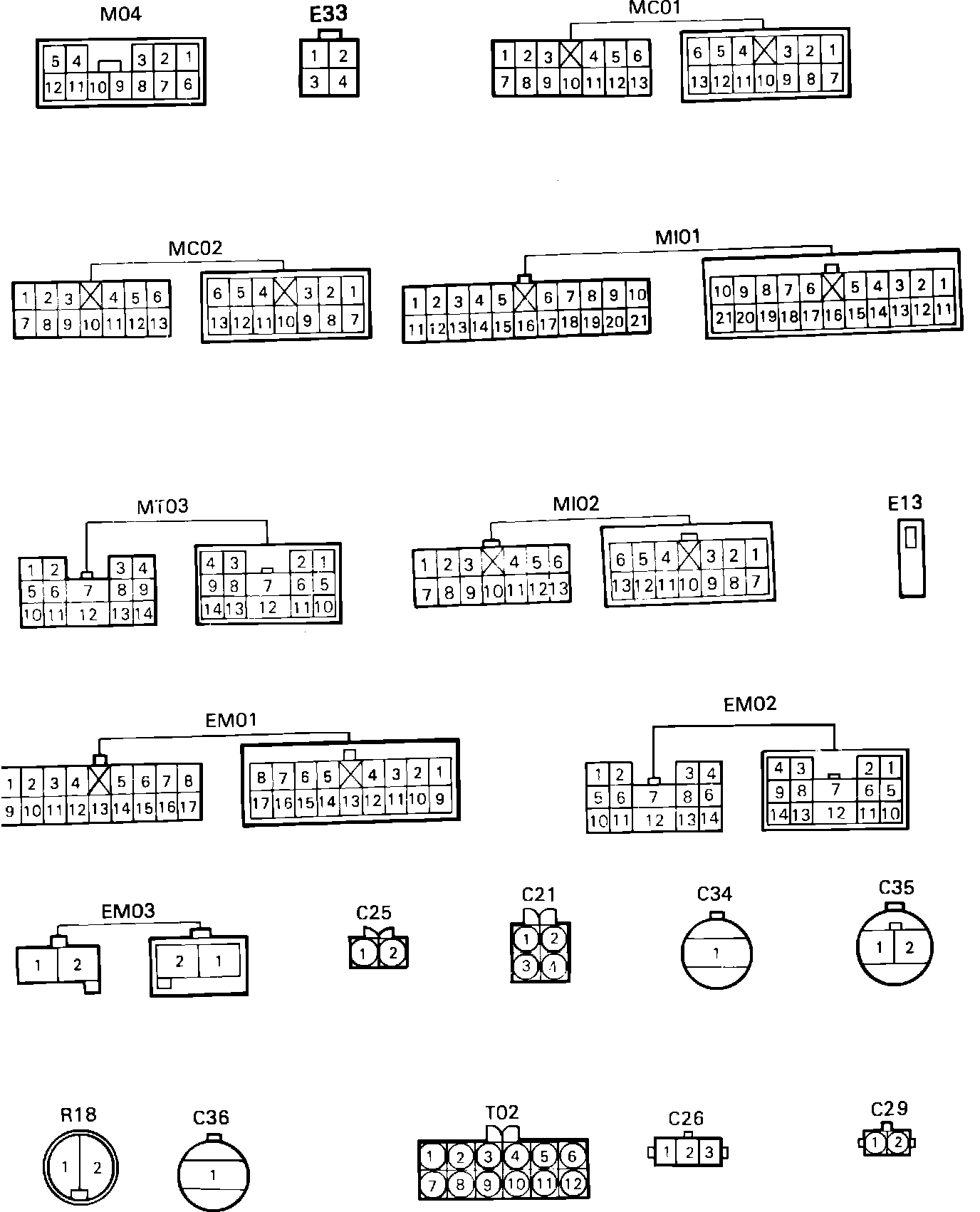

Engine Management (Connector Identification):
