System Diagram

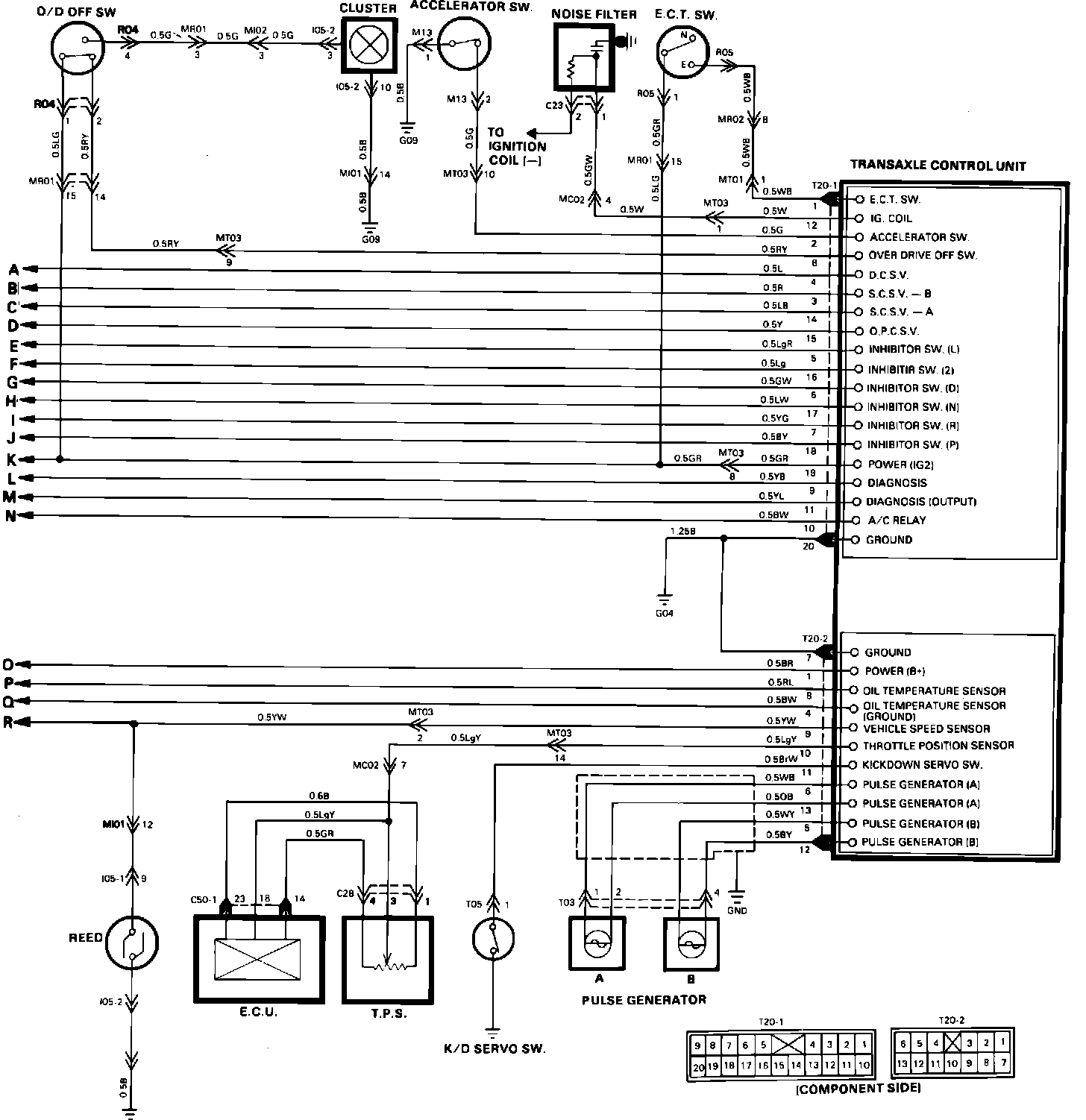

Automatic Transaxle Controls (Electronic Lock Up Controls):

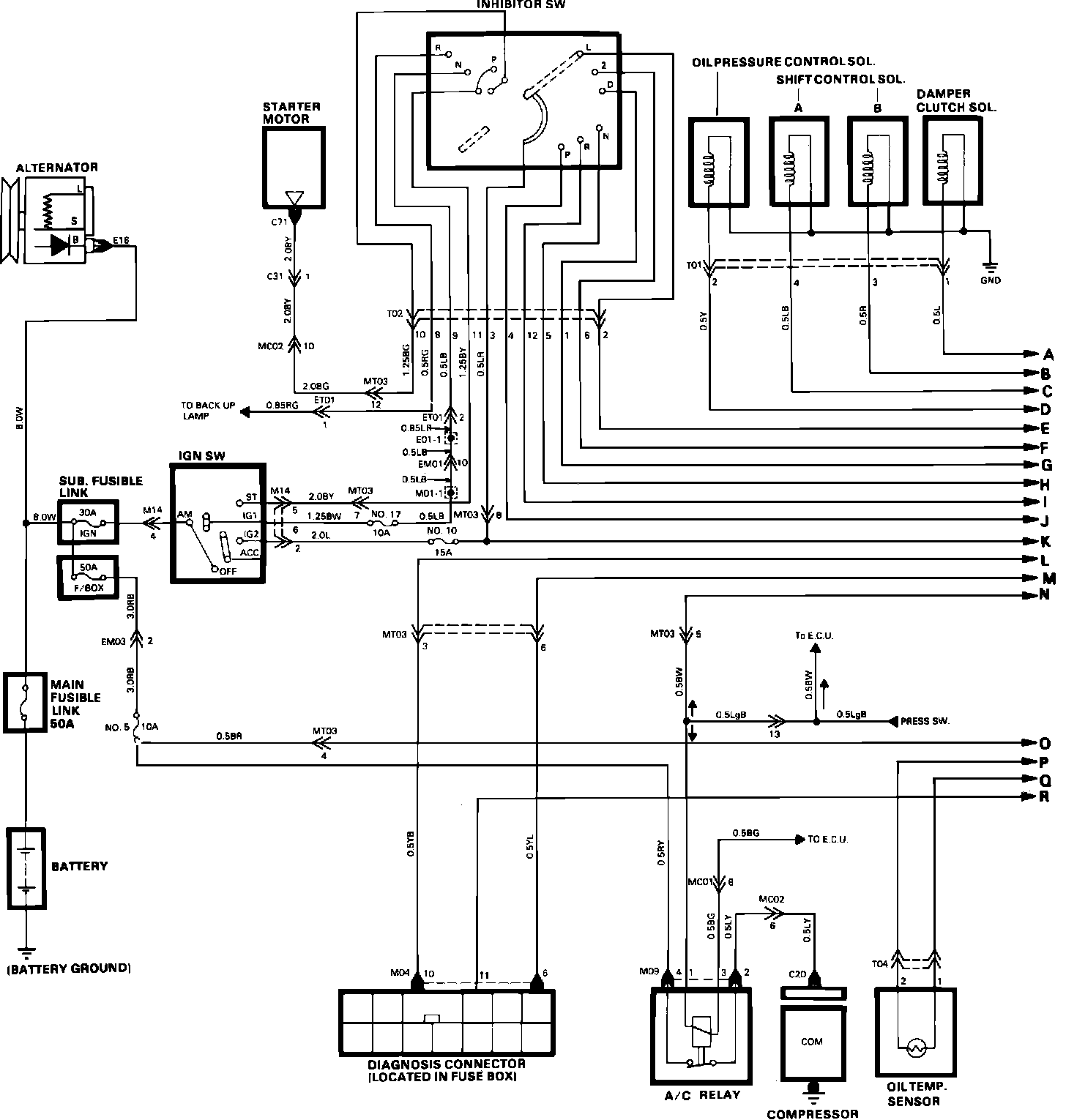

Automatic Transaxle Controls (Electronic Lock Up Controls):

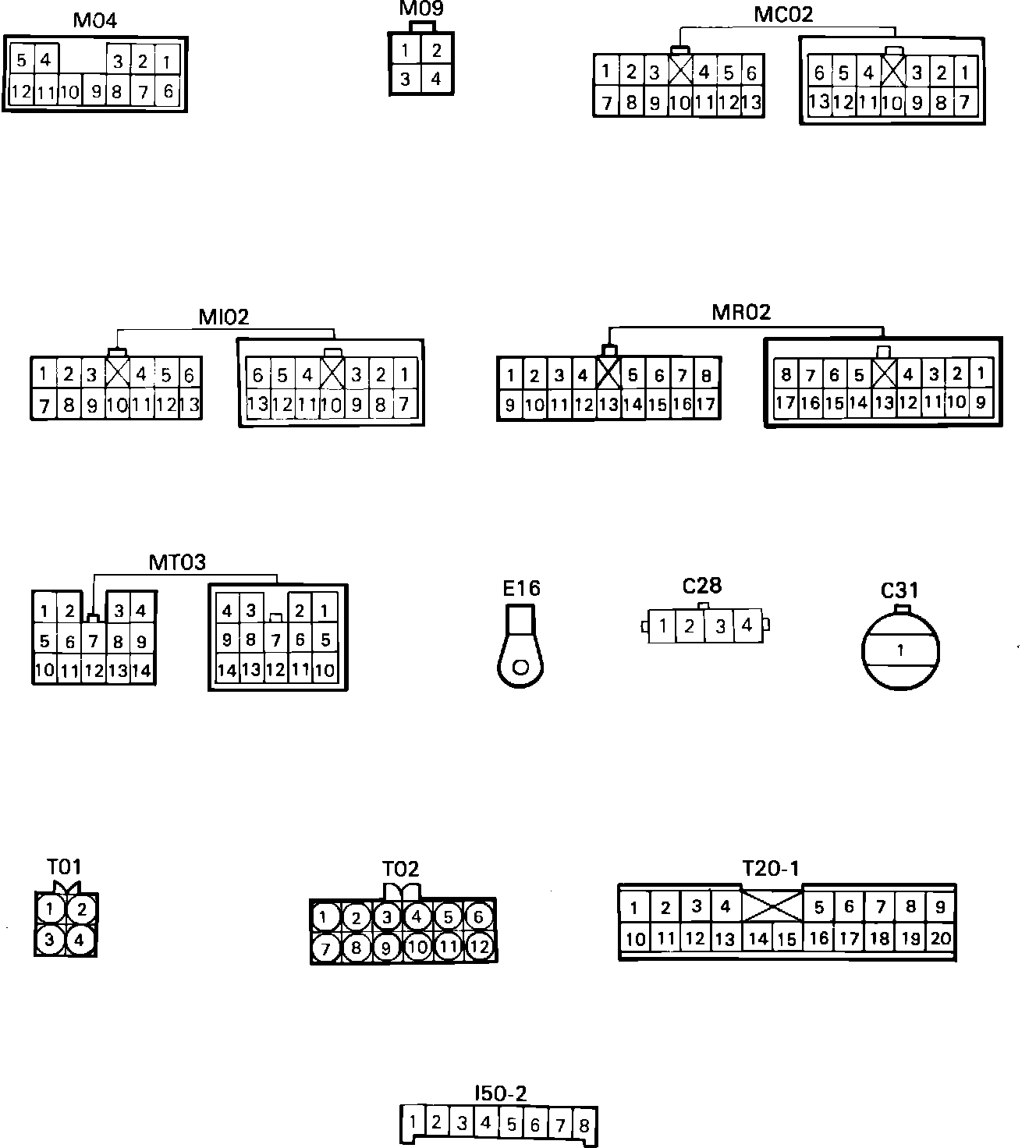

Automatic Transaxle Controls (Electronic Lock Up Controls) (Connector Identification):

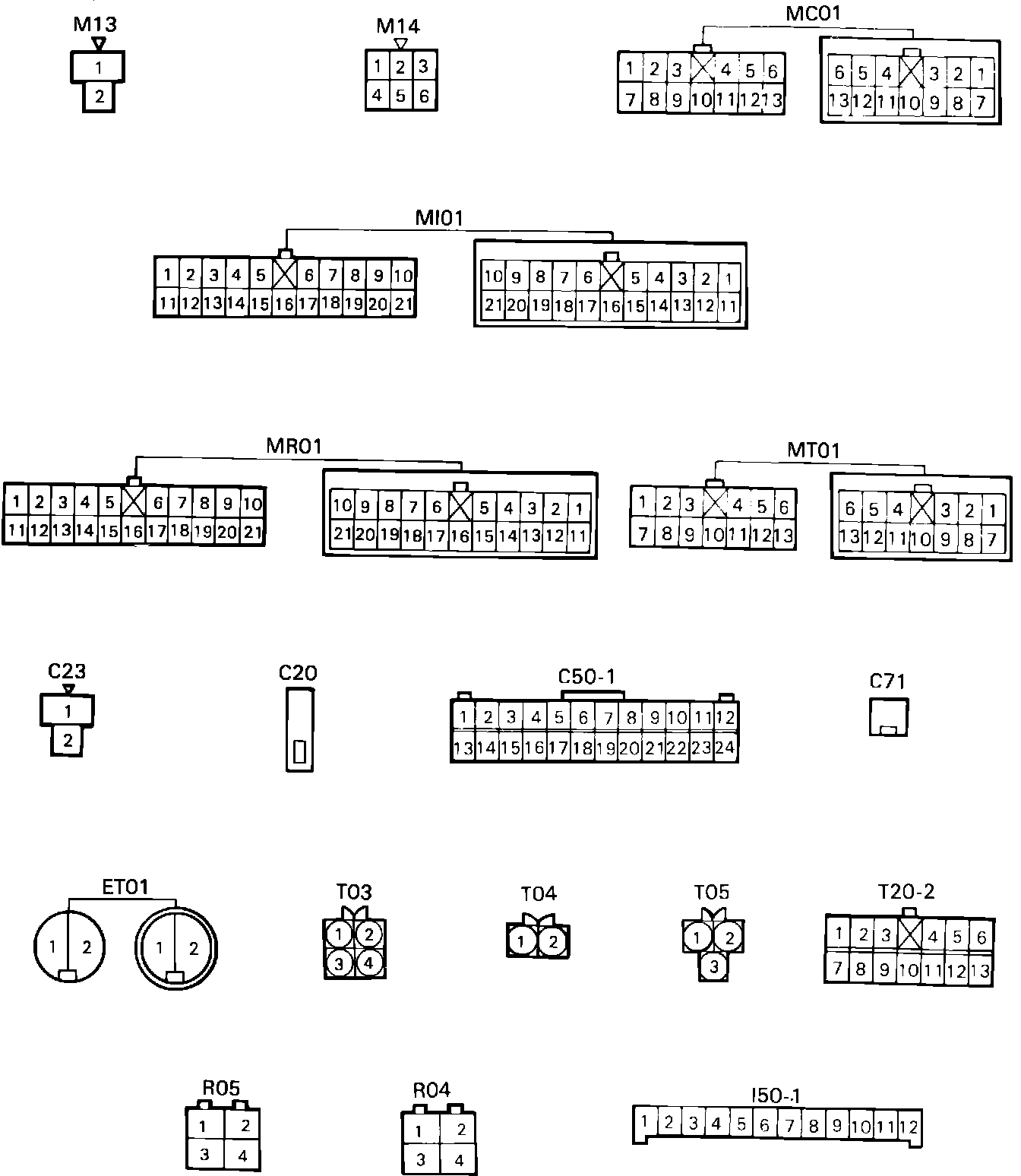

Automatic Transaxle Controls (Electronic Lock Up Controls) (Connector Identification):
