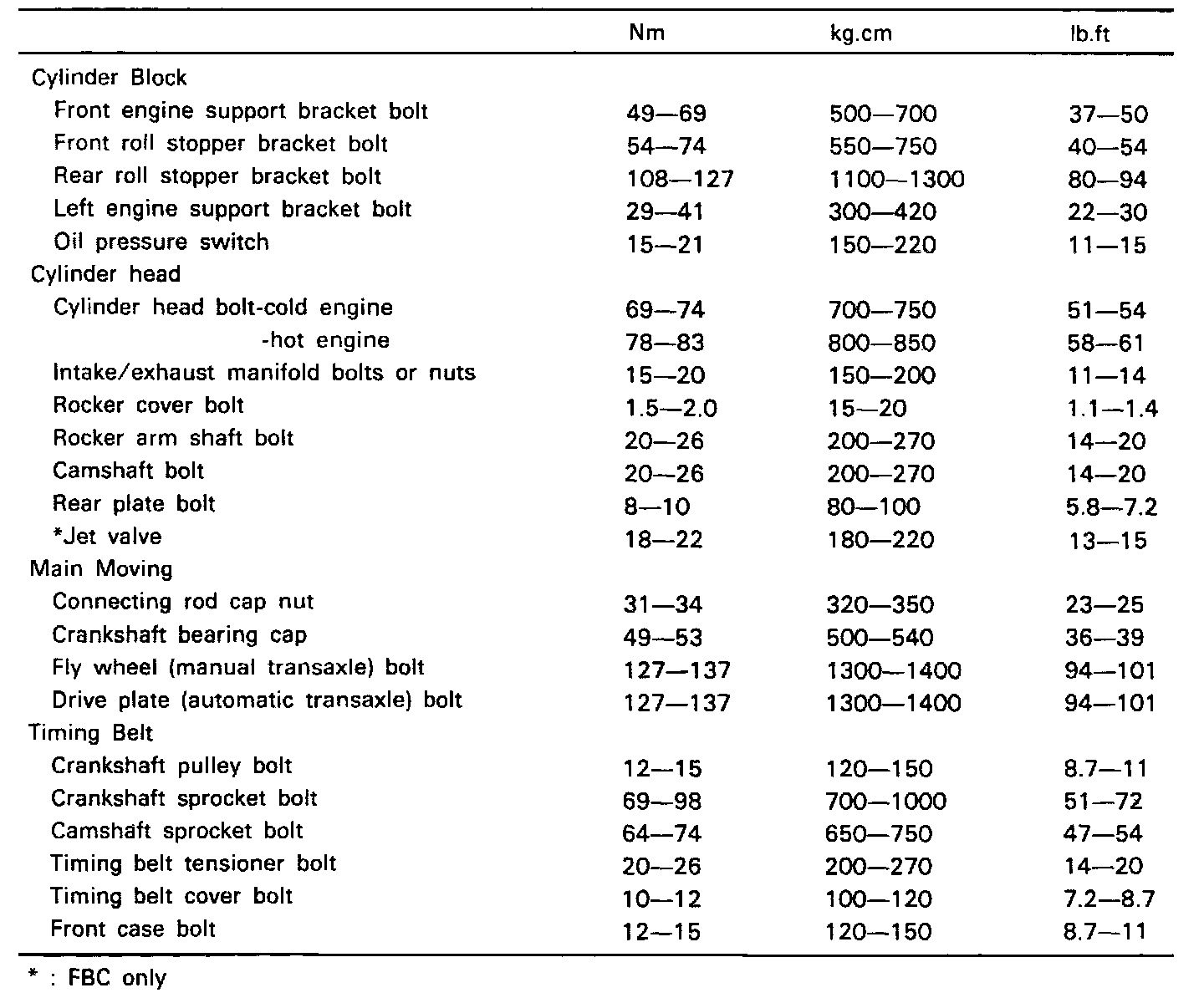

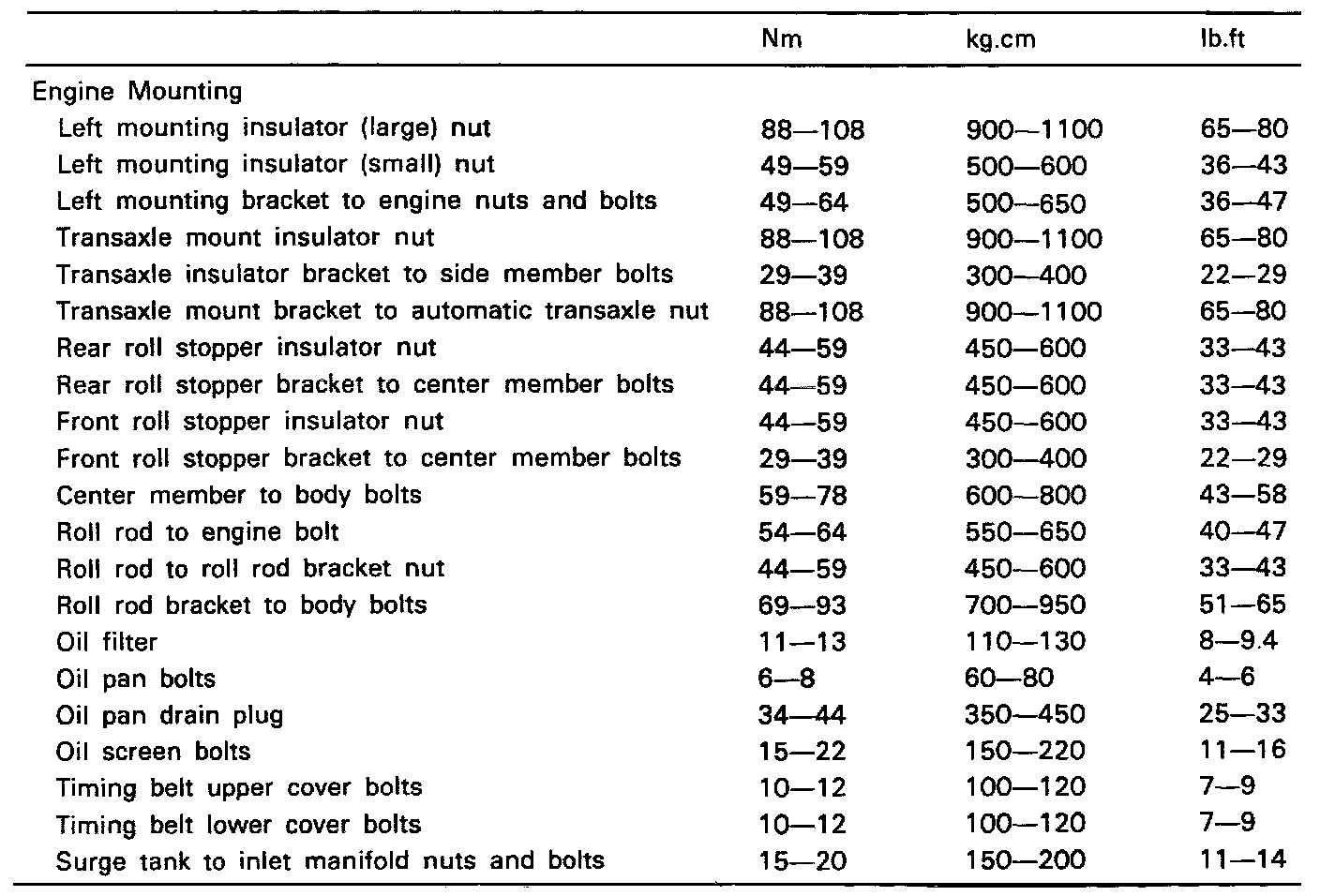

Tightening Torque Specifications

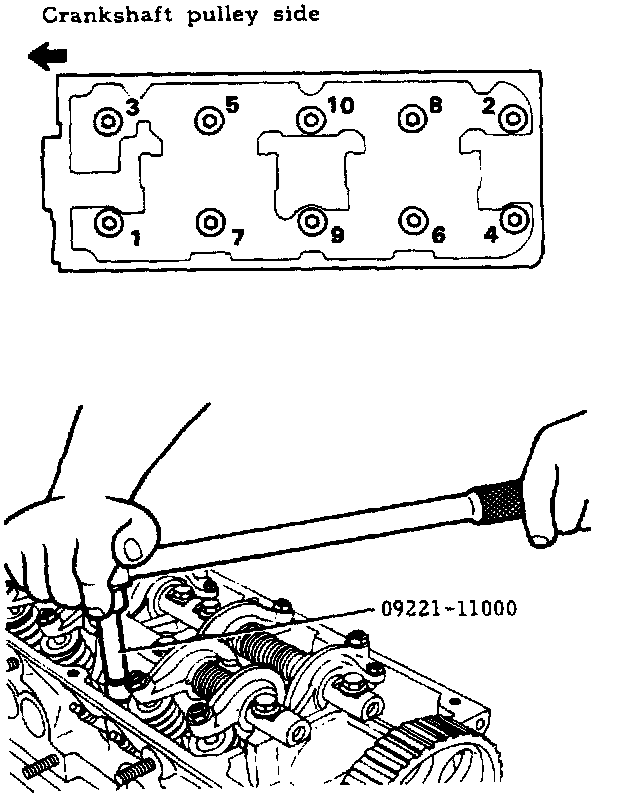

Cylinder Head Bolt Removal Sequence:

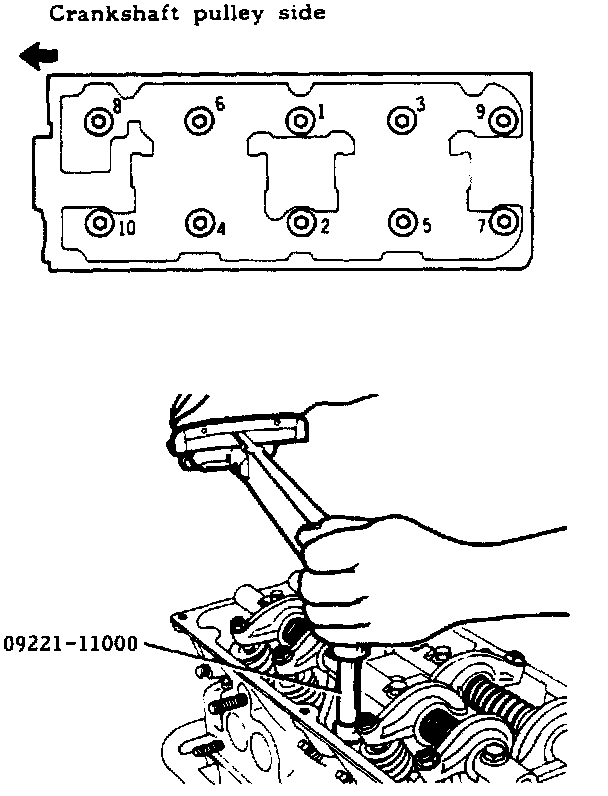

Cylinder Head Bolt Torque Sequence:
