Pulse Generator - Supplier Change

91hyundai02

Group: Transmission/Driveline


Number: 025


Date: June, 1991


Model: All


Subject


PULSE GENERATOR SUPPLIER CHANGED

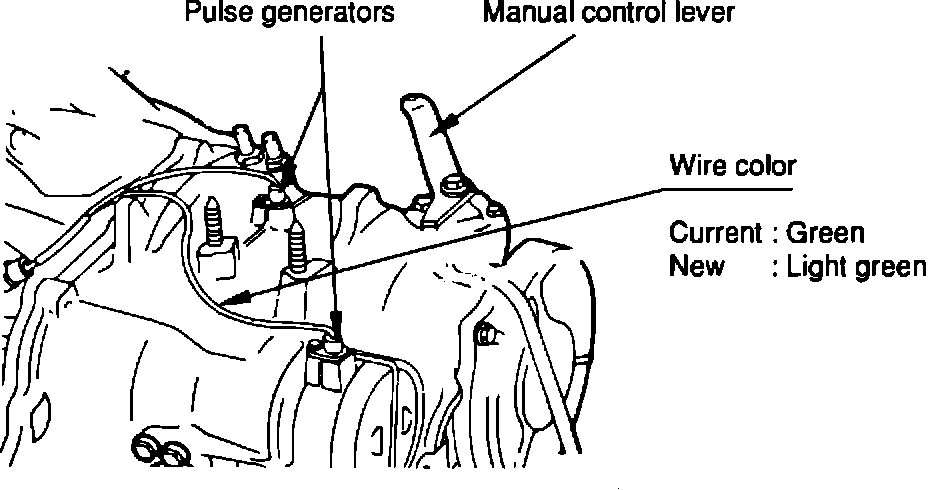

The pulse generator assembly supplier has been changed on all Hyundai automatic transaxles. There is no change in the function or specifications of the new pulse generator assemblies other than the change in wire color as shown in the illustration below.


EFFECTIVE DATE: JANUARY 3, 1991


PARTS INFORMATION


Part Name Current New Model


Pulse Generator 45955-36000 45955-36020 EXCEL, SCOUPE
Assembly

45955-37000 45955-37010 SONATA


INTERCHANGEABILITY: Code Y
