Wiring Harness Identification

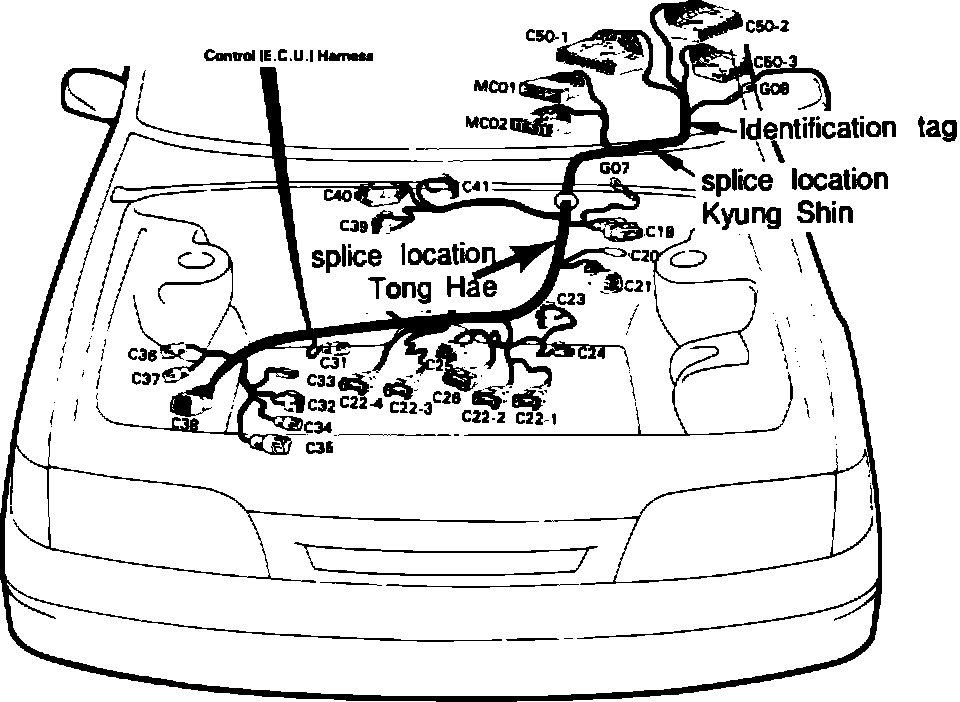

There are two manufacturers for the ECU wiring harness: Kyung Shin and Tong Hae (Dong Hae). The wiring harness manufacturer can be determinied by looking at the identification tag wrapped around the wiring harness about 4-8" above the ECU connectors. Because of the different locations and types of splices, there are different repair procedures for Kyung Shin and Tong Hae.
