Home >> Hyundai >> 1990 >> Excel L4-1468cc 1.5L SOHC (8 VALVE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Diagram

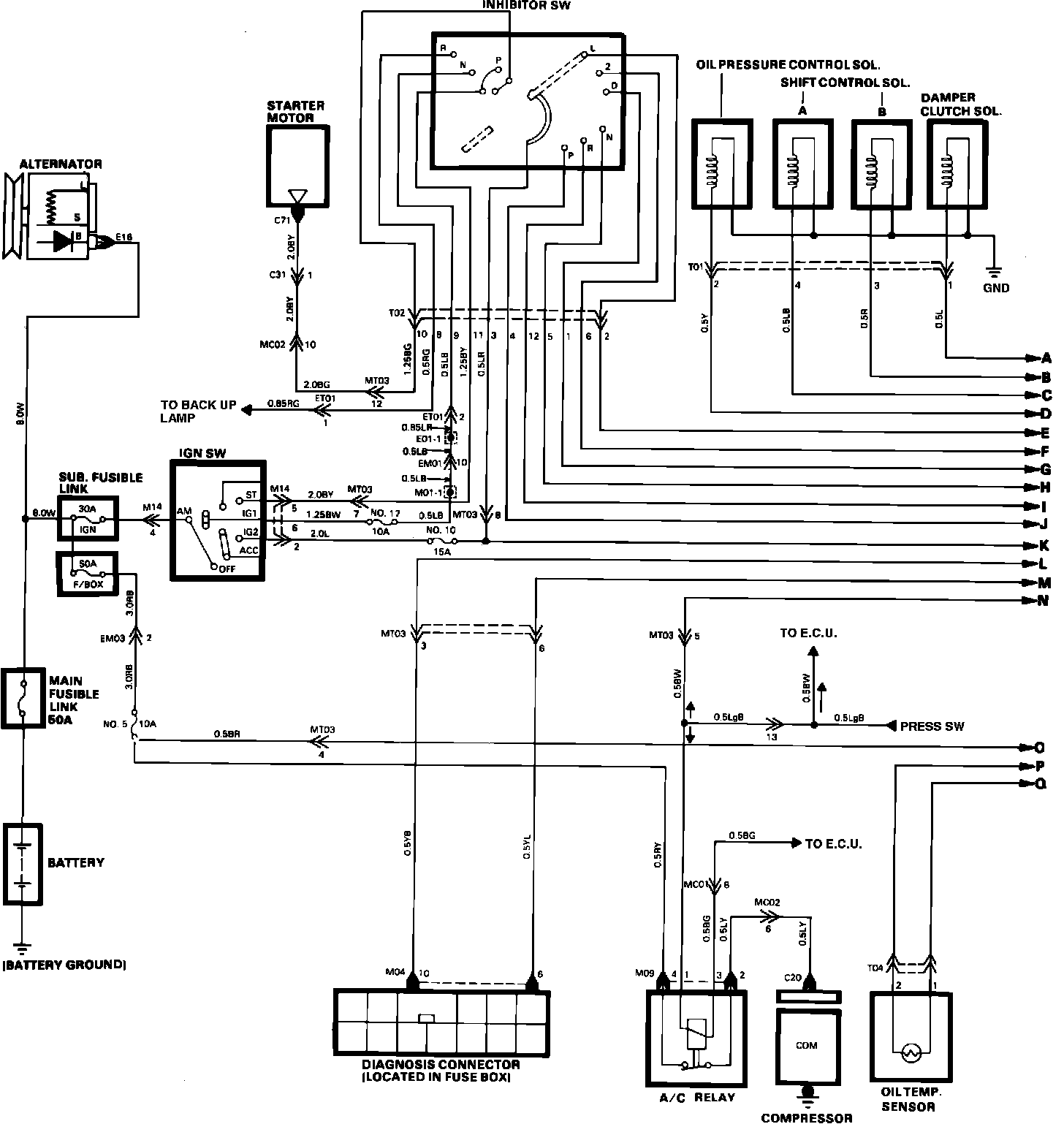

System Diagram

Automatic Transaxle Shift Lock Control Unit:



Automatic Transaxle Shfit Lock Control Unit:
