Altitude Compensator: Locations

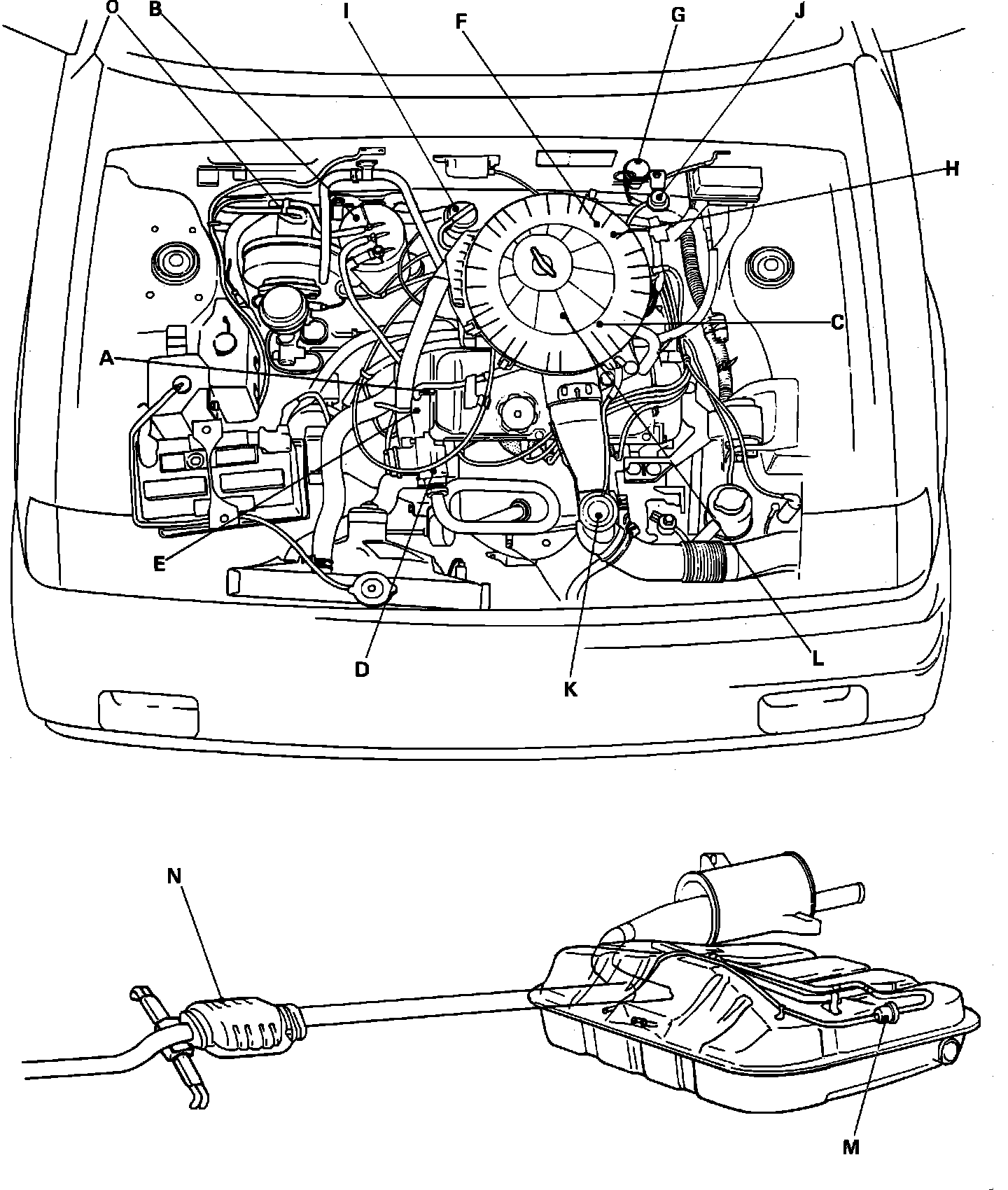

Fig. 6 Component Locations (Emission Control System):

Check Valve: Rear of engine
[I] High Altitude Compensator (HAC) Valve: Center, rear of engine compartment
[E] Vacuum Switching Valve (Fed.): Rear of engine
