Mixture Control Solenoid - Slow Cut: Testing and Inspection

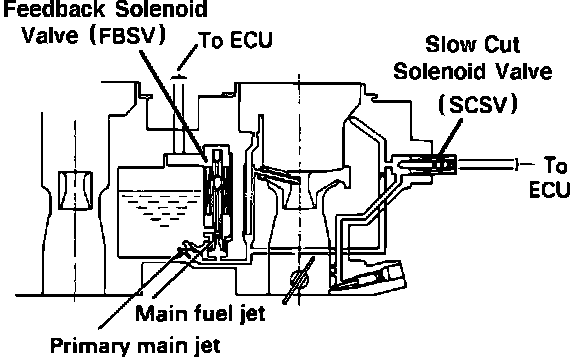

FBSV And SCSV Locations:

To test the Slow Cut Solenoid Valve, located on the carburetor, proceed as follows.

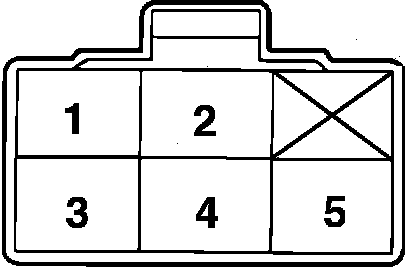

Connector M21:

1. Disconnect the wiring harness connector (connector M21).
2. Test for resistance between terminals 2 and 4.

Resistance: 38 - 44 ohm @ 20°C (68°F)

3. If the solenoid valve's resistance is out of the standard value limits replace the solenoid.

For diagnosis and testing of the feedback carburetor system or the control of the slow cut solenoid valve, refer to COMPUTERIZED ENGINE CONTROLS.
