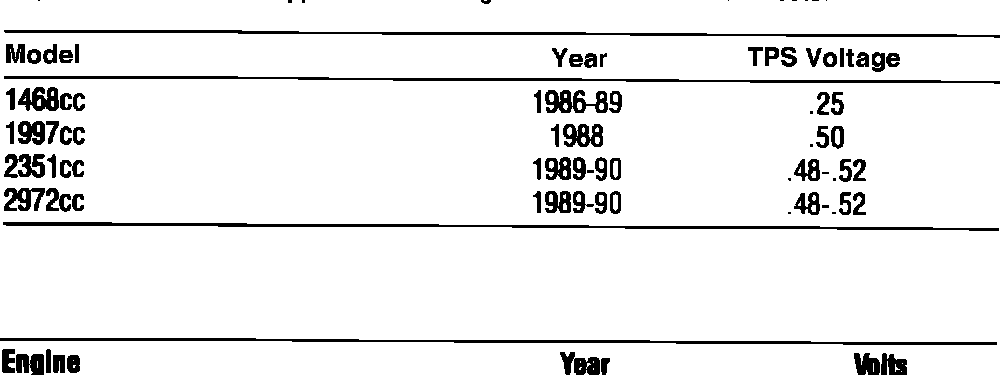

Throttle Position Sensor: Specifications

Excel, back out speed screws enough to close throttle valve. Connect DVOM between two lower horizontal blades of TPS. Adjust screw on linkage to specified voltage.

4-cyl. Sonata, measure voltage along single upper (-) and lower left (+) terminals of TPS.

V6 Sonata, measured between upper and lower right terminals of TPS connector.
