Connecting Rod Cap Bolts - Vendor/Supplier/Part Changed

87hyundai01

Group: ENGINE


Number: 011


Date: APRIL, 1987


Model: EXCEL
Subject


CONNECTING ROD CAP BOLTS CHANGED

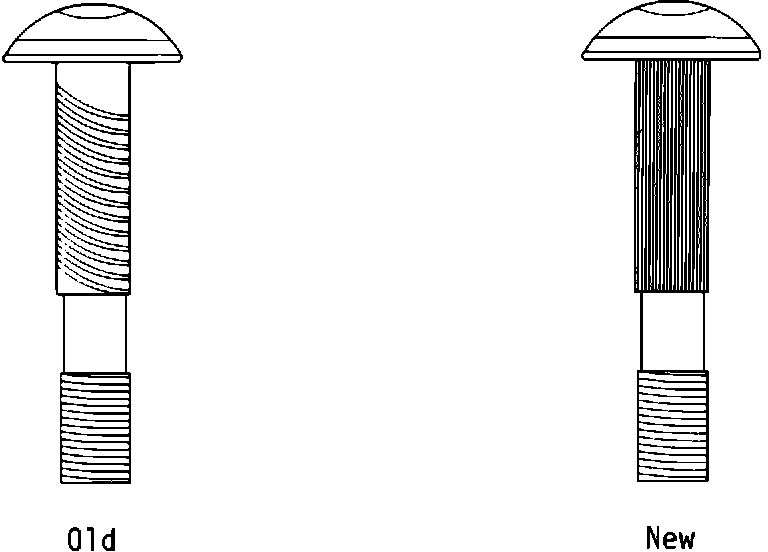

The vendor/supplier of the engine connecting rod cap bolts has been changed. This change has no impact on performance or application; however, the new bolt's appearance is somewhat different from that of the previous bolt. (See below).
Production Change Effective

Engine Number Date

G4AJ-H361910 1-19-87

Part Number Information

Part Name Old Part Number New Part Number

Bolt, Con-Rod 23513-11100 23513-11104

Interchangeability

Code Y Old <---> New
