Fig. 1 4-90 Exc. California

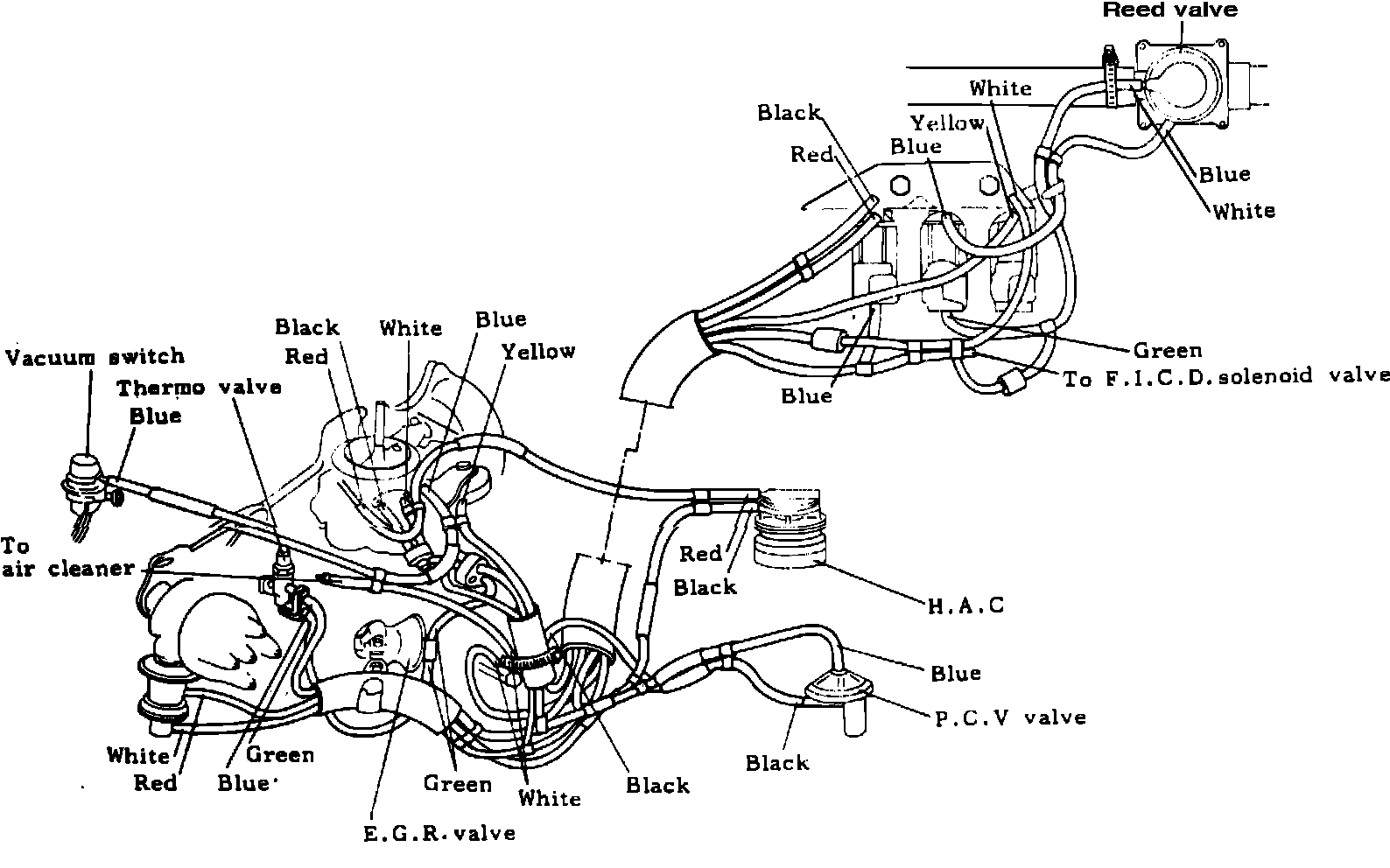

Fig. 1 Vacuum hose routing & engine compartment reference diagram. 4-90 exc. California:
