Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Diagrams >> Electrical Diagrams

Electrical Diagrams




Transfer Case Control Schematics

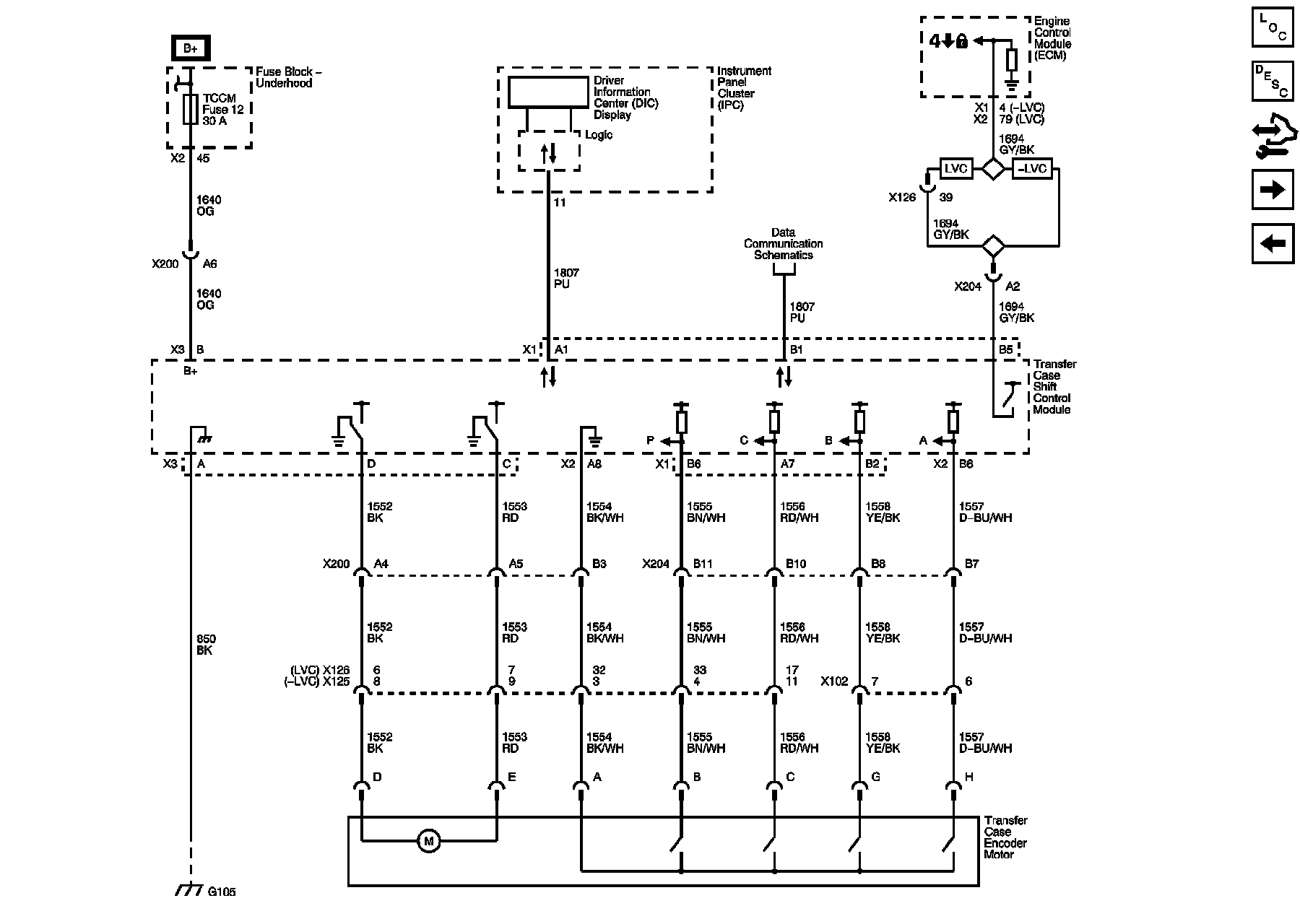

Power, Ground, Serial Data, and Front Axle Control (Left Hand Drive)

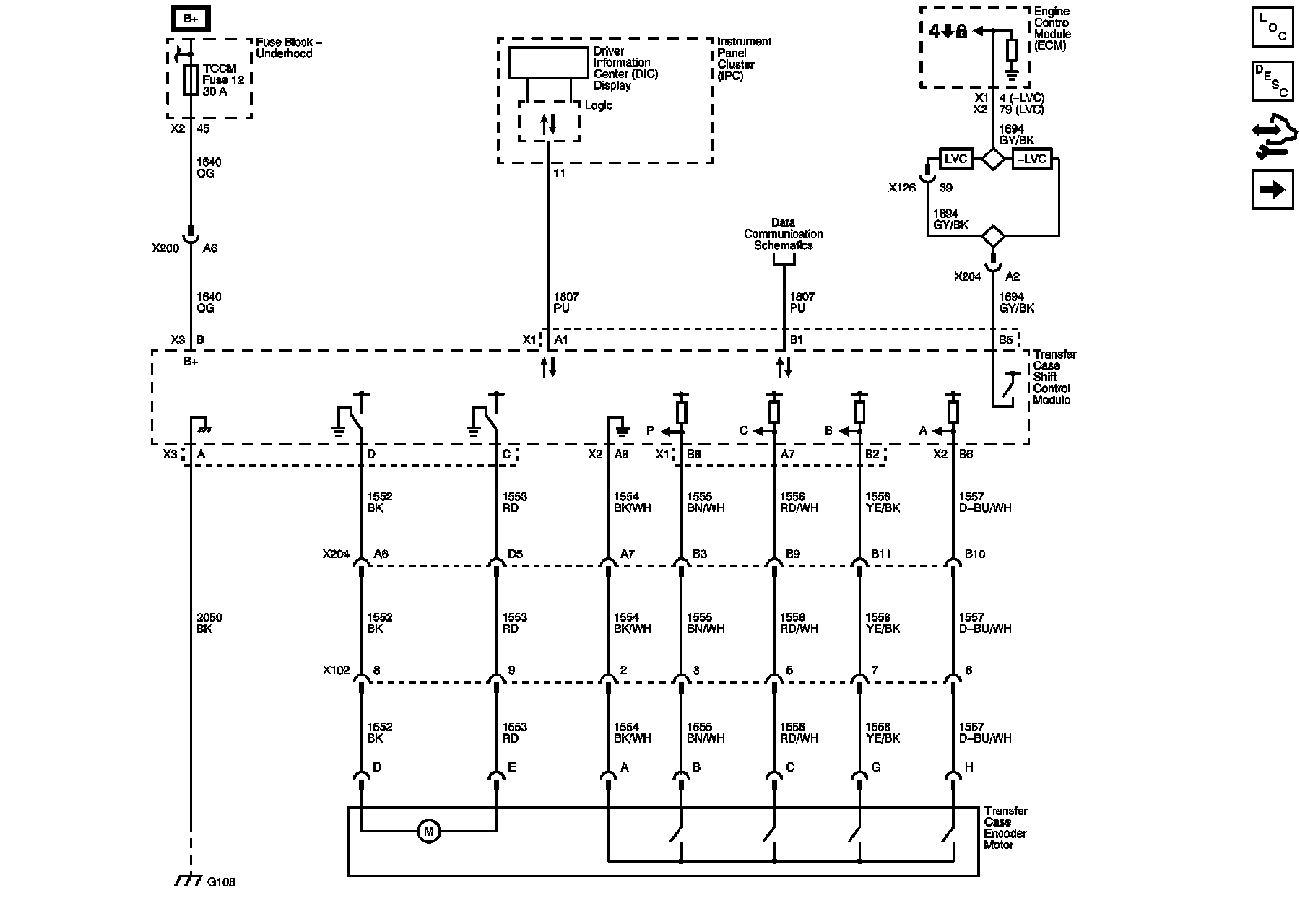

Power, Ground, Serial Data, and Front Axle Control (Right Hand Drive)

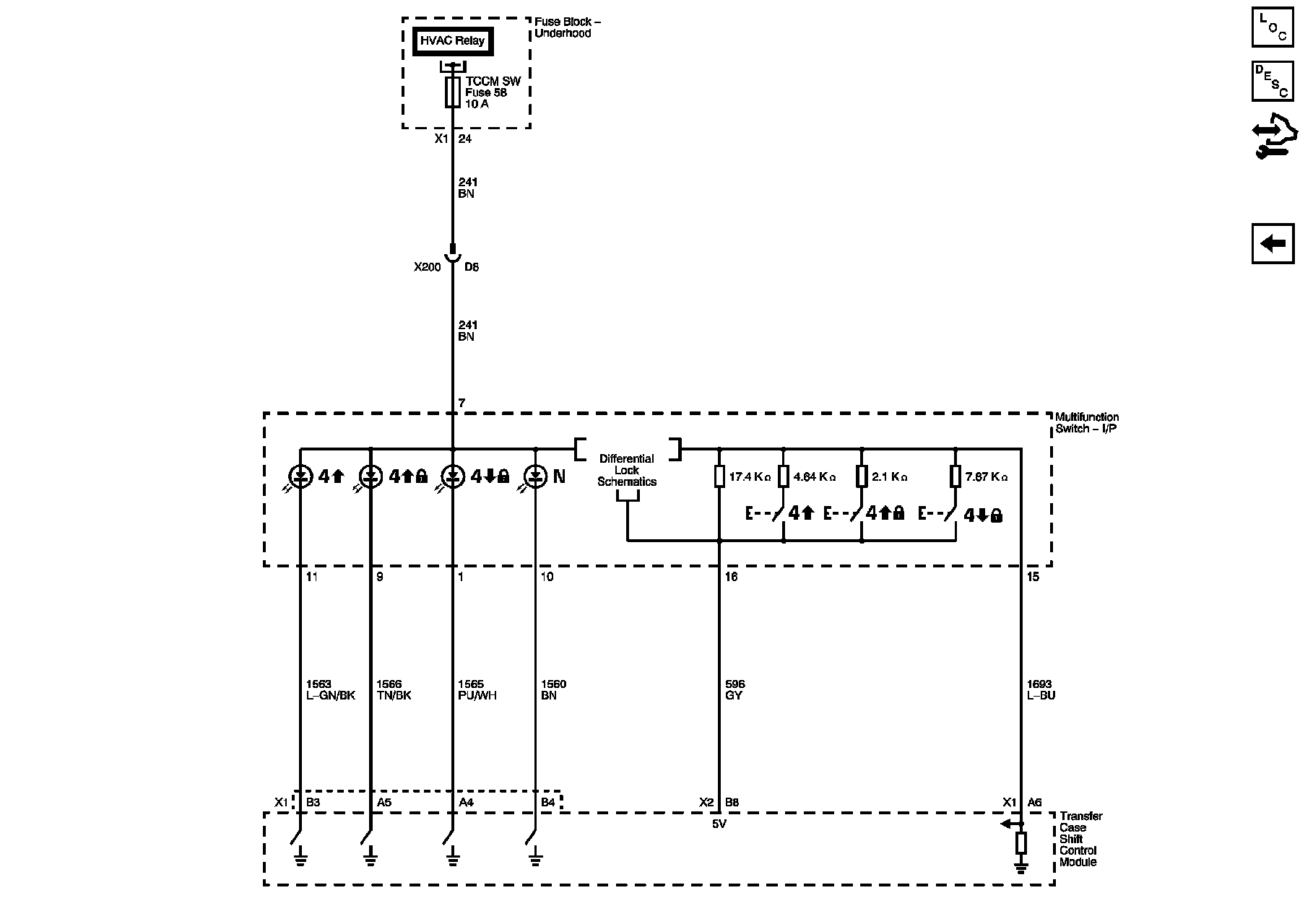

Shift Controls
