Seals and Gaskets: Service and Repair

Front Drive Axle Seal and Bearing Replacement

Tools Required
* J 2619-01 Slide Hammer
* J 8092 Universal Drive Handle 3/4 Inch - 10
* J 21426 Extension Housing Seal Installer
* J 29369-2 Bushing and Bearing Remover 2-3 inch
* J 45232 Differential Bearing Adjuster Needle Bearing Installer - Left

Removal Procedure




1. Remove the wheel drive shaft. Refer to Wheel Drive Shaft Replacement (Service and Repair).

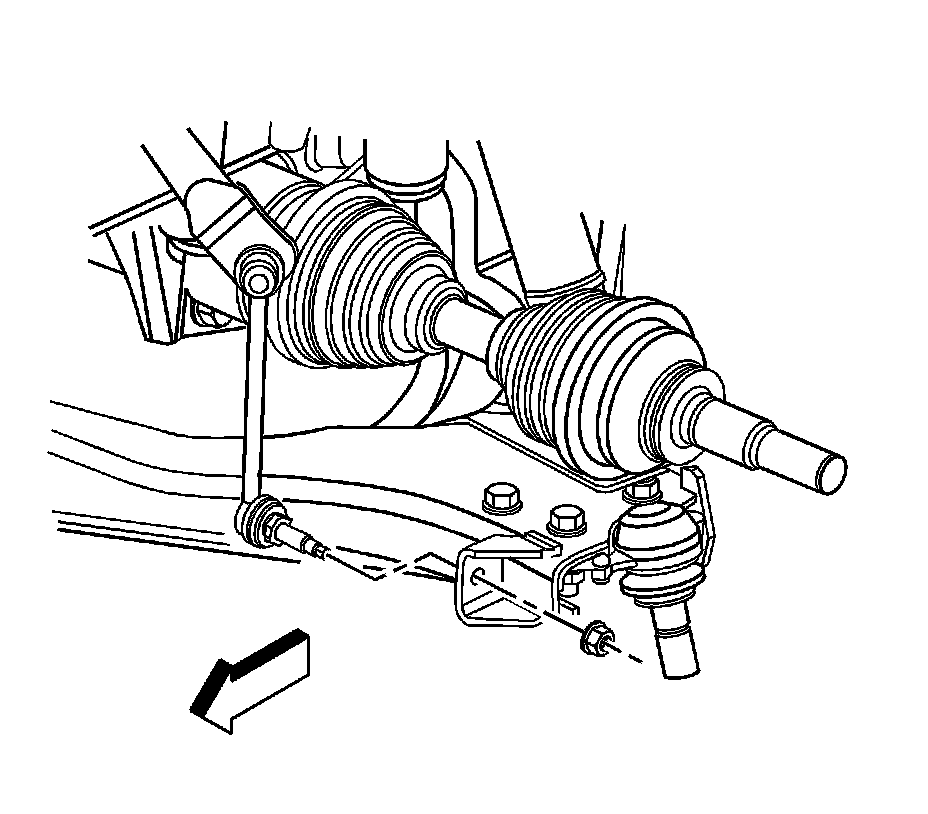

2. Remove the swaybar link from the lower control arm. Refer to Stabilizer Shaft Link Replacement (Front Suspension).

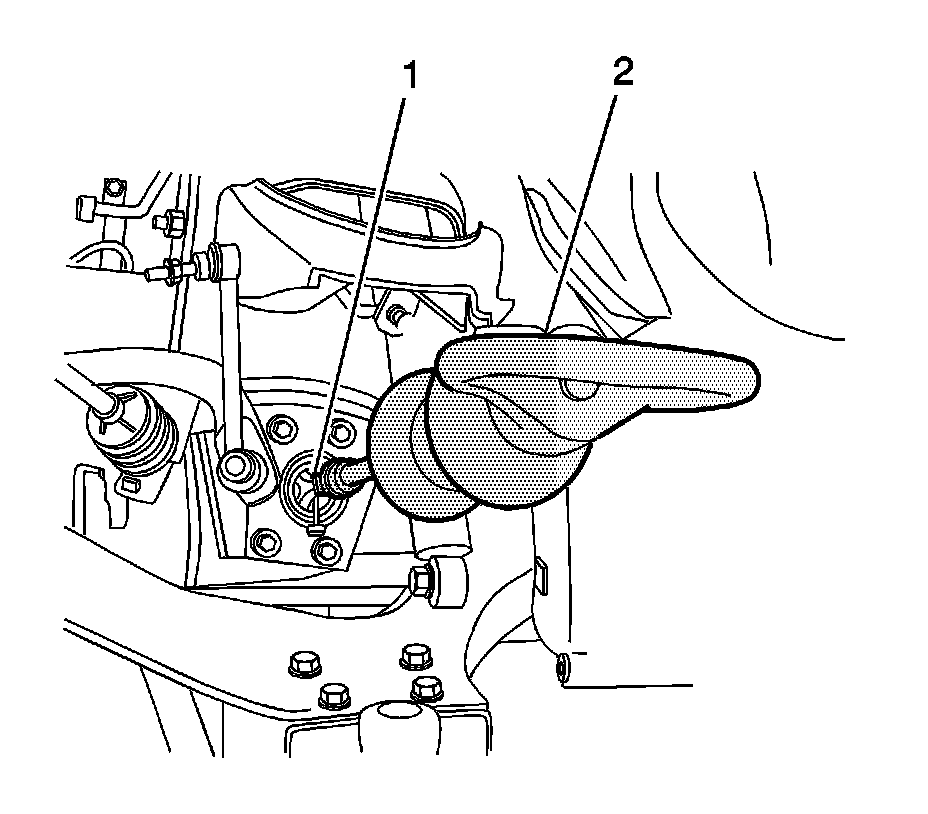

3. Using the J 29369-2 (2) and the J 2619-01 (1), remove the axle seal.




4. Using the J 29369-2 (1) and the J 2619-01 (2), remove the axle bearing.

Installation Procedure




1. Position the axle bearing in the intermediate housing.

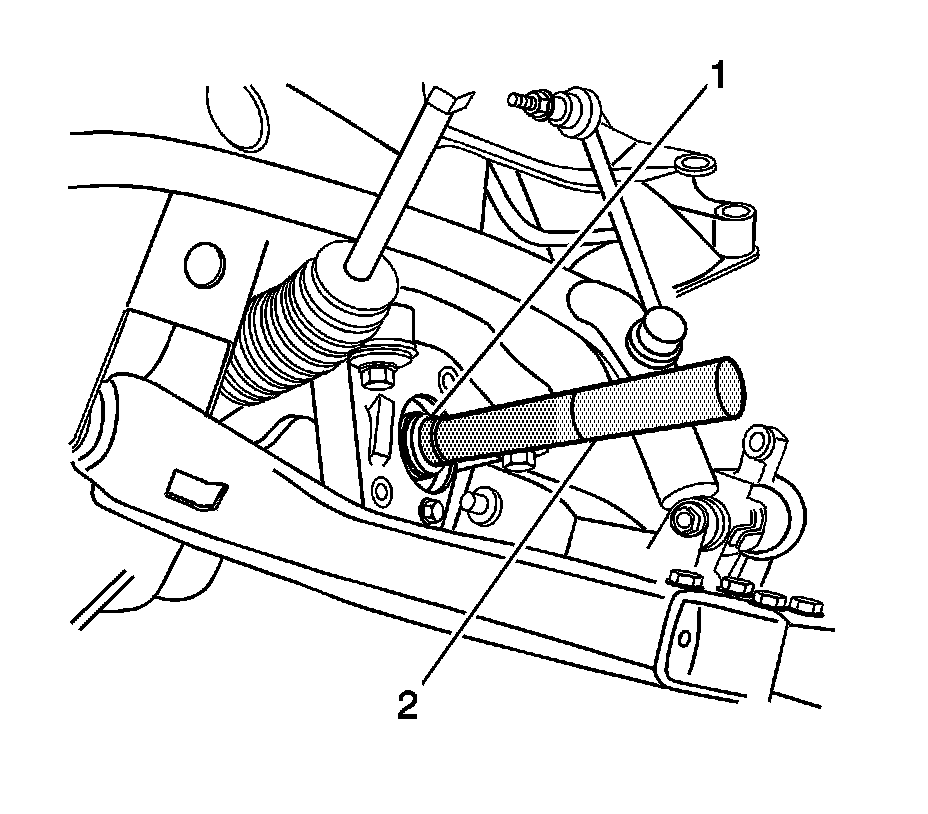

2. Using the J 45232 (1) and the J 8092 (2), install the axle bearing.

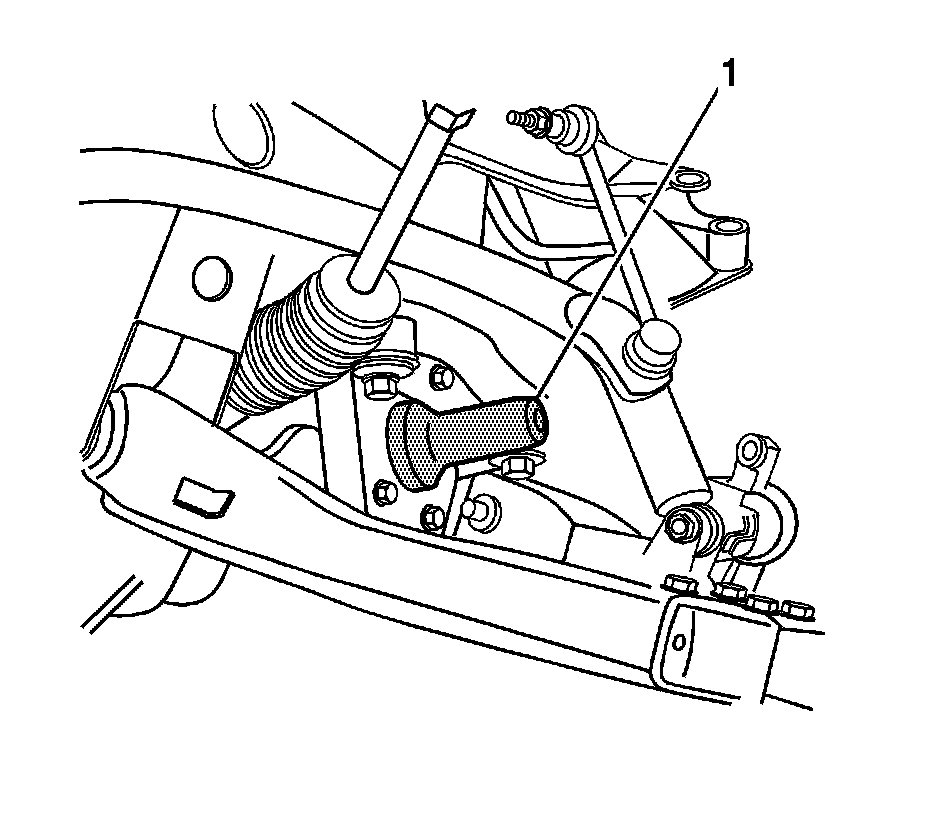

3. Using the J 21426 (1), install the axle seal.




4. Install the wheel drive shaft. Refer to Wheel Drive Shaft Replacement (Service and Repair).




5. Install the swaybar link to the lower control arm. Refer to Stabilizer Shaft Link Replacement (Front Suspension).
6. Check in fluid level. Refer to Front Axle Lubricant Level Inspection (Front Drive Axle).
7. Lower the vehicle.
