Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Testing and Inspection >> Scan Tool Testing and Procedures >> Fuel Pump Flow Control Module Scan Tool Information

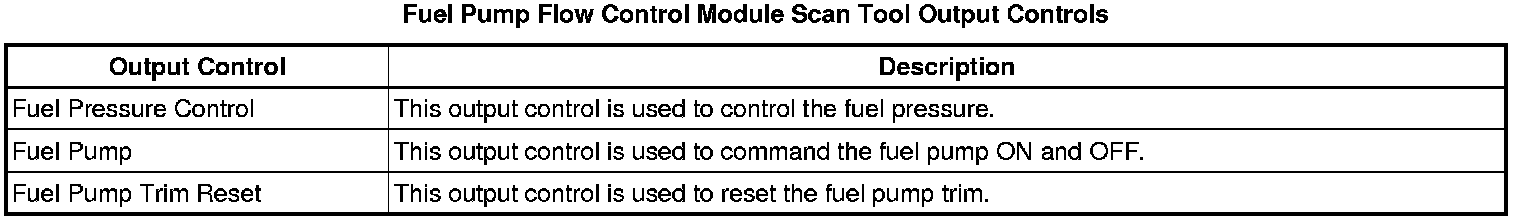

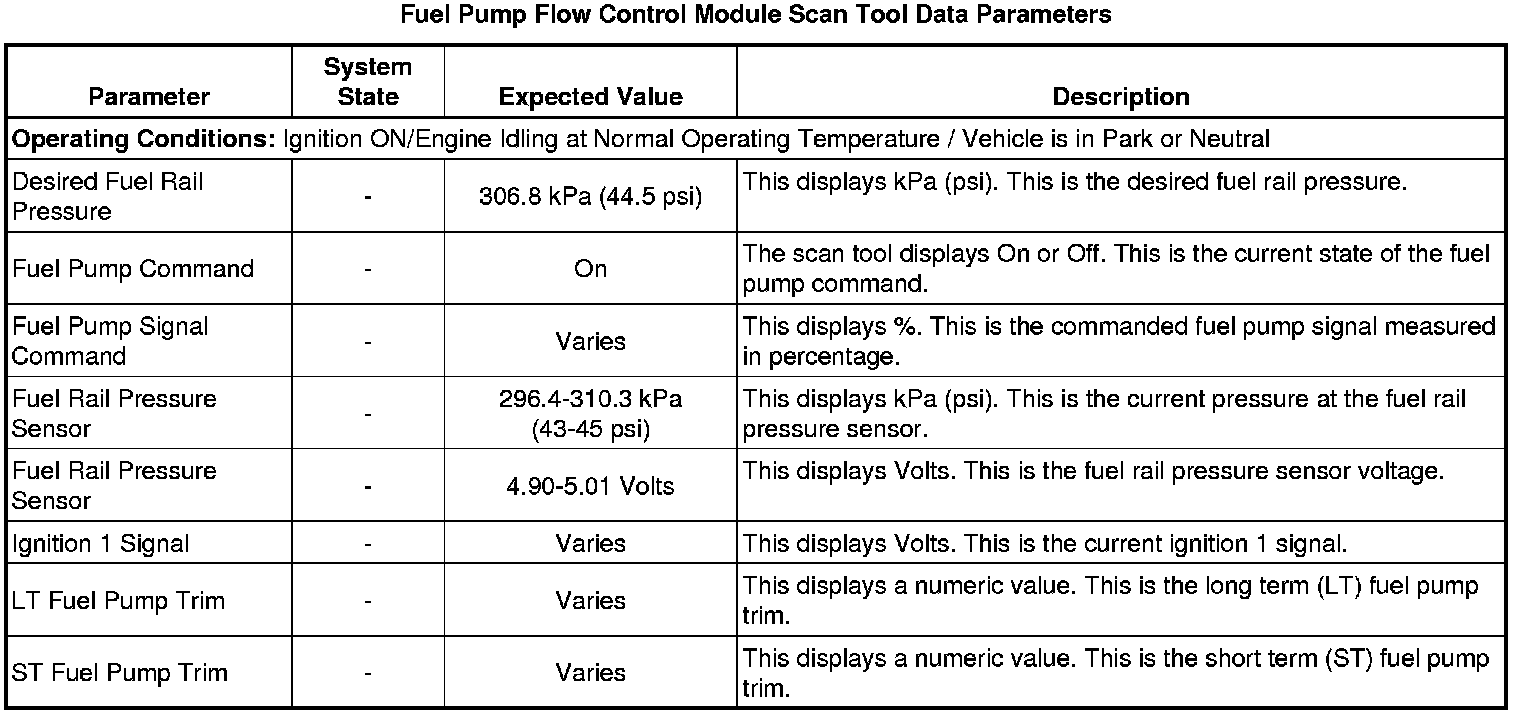

Fuel Pump Flow Control Module Scan Tool Information




Fuel Pump Flow Control Module Scan Tool Information
