Front Suspension

Stabilizer Shaft Insulator Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the engine shield. Refer to Engine Shield Replacement (Engine Shield Replacement)

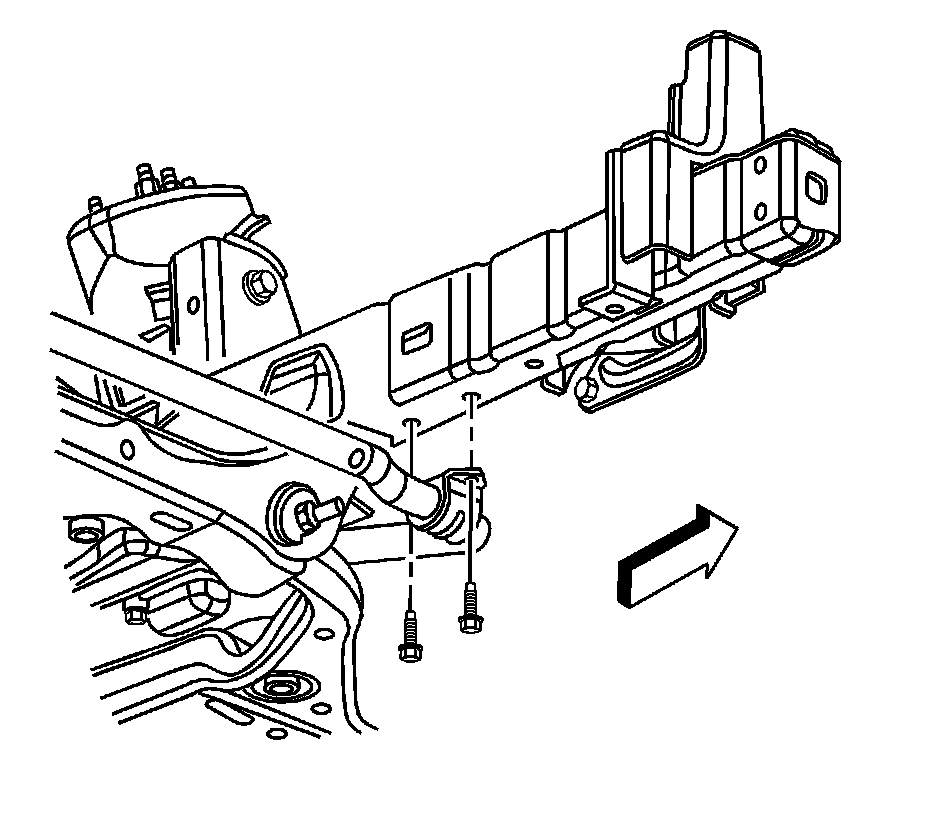

3. Remove the insulator clamp bolts.
4. Remove the clamps.
5. Remove the insulators.
6. Inspect all of the parts for wear and damage.

Installation Procedure




1. Install the insulators to the stabilizer shaft.
2. Install the clamps over the insulators and the stabilizer shaft.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install insulator clamp bolts.

Tighten the bolts to 50 Nm (37 lb ft).

4. Install the engine shield. Refer to Engine Shield Replacement (Engine Shield Replacement)
5. Lower the vehicle.
