X430




Inline Harness Connector End Views

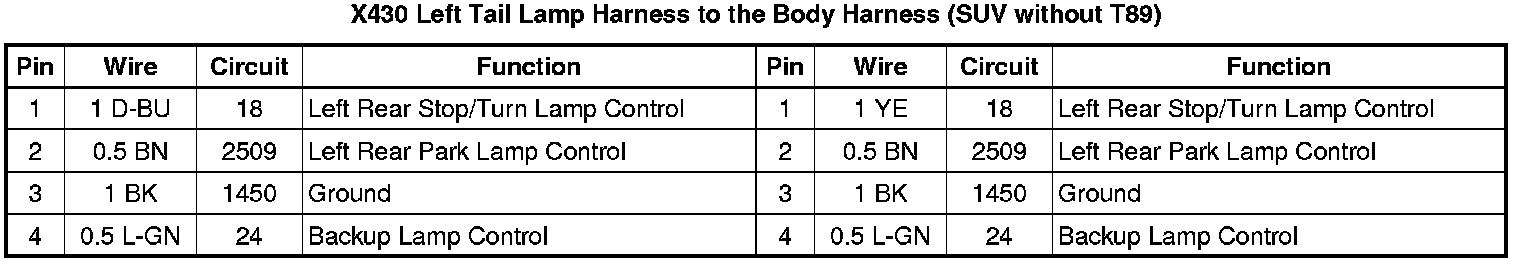

X430 Left Tail Lamp Harness to the Body Harness (SUV without T89)

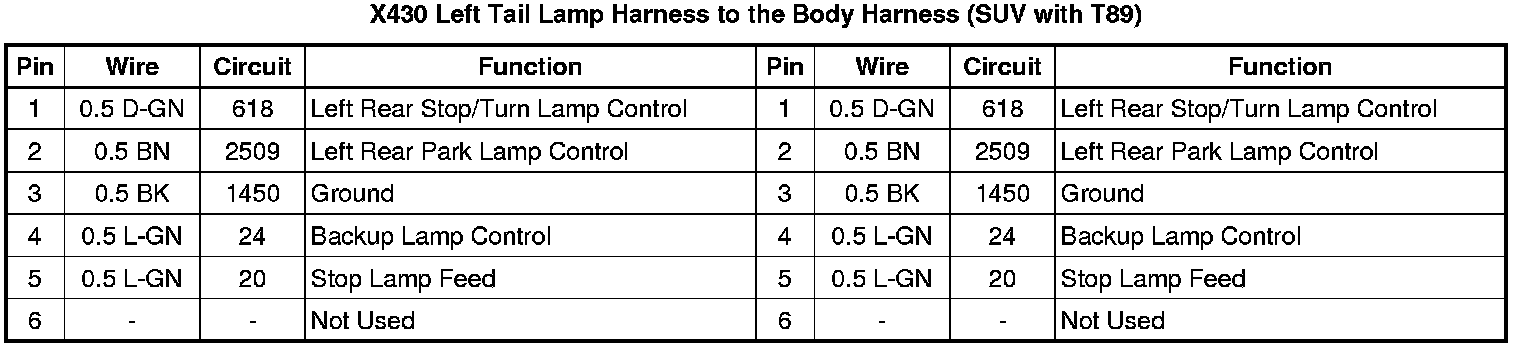

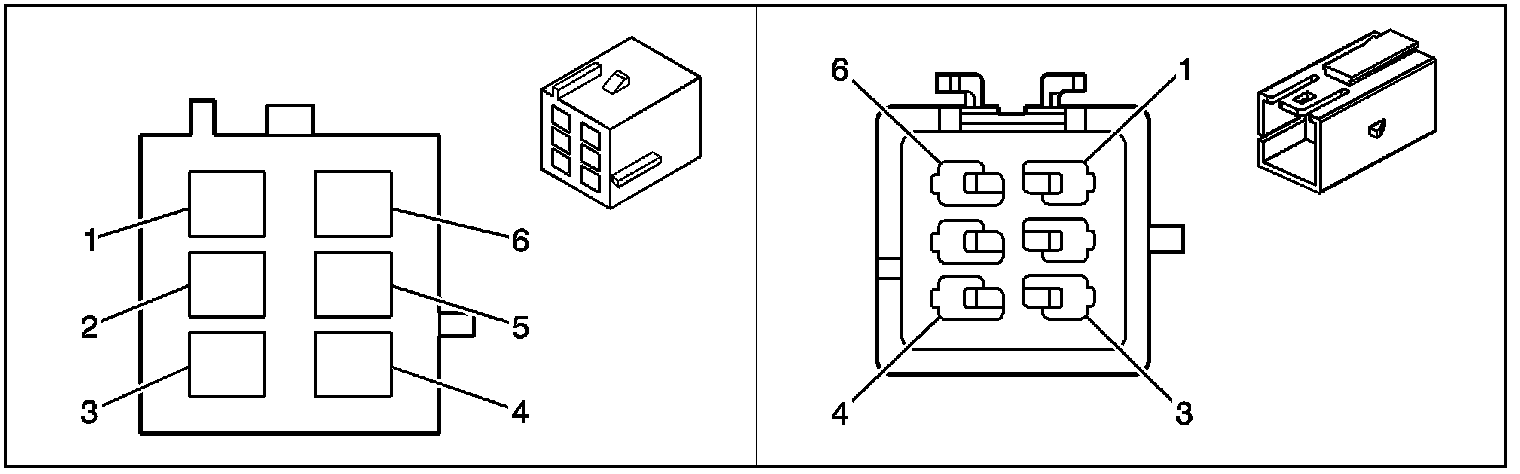

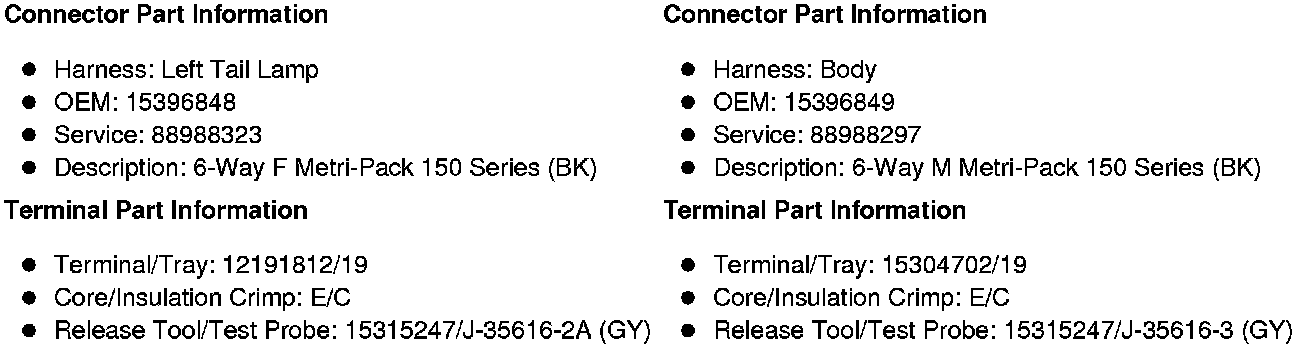

X430 Left Tail Lamp Harness to the Body Harness (SUV with T89)

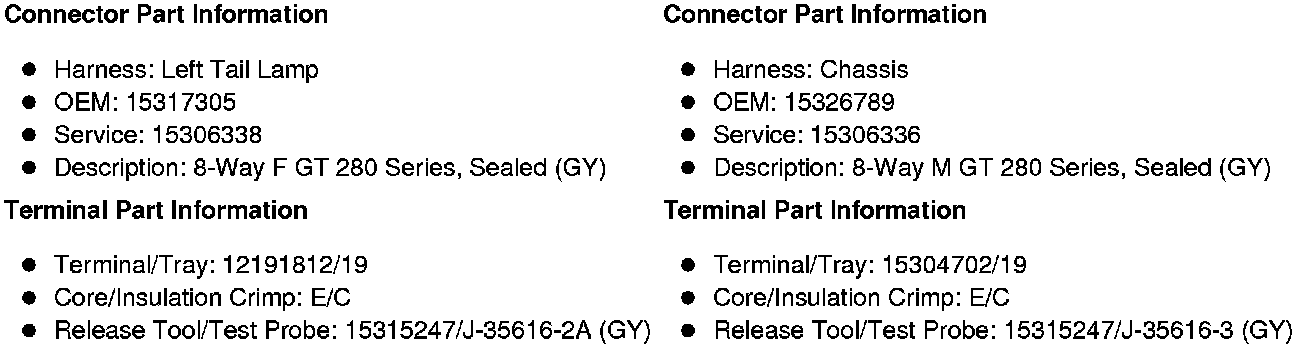

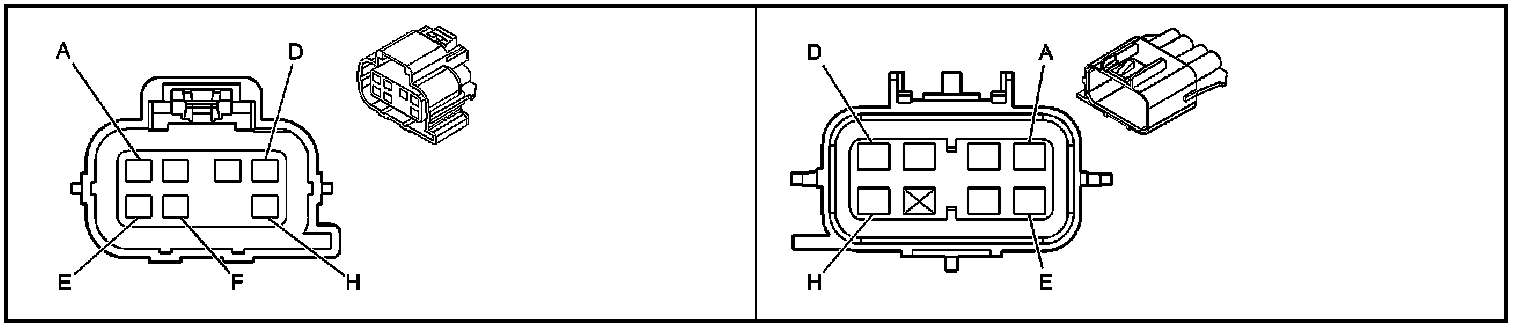

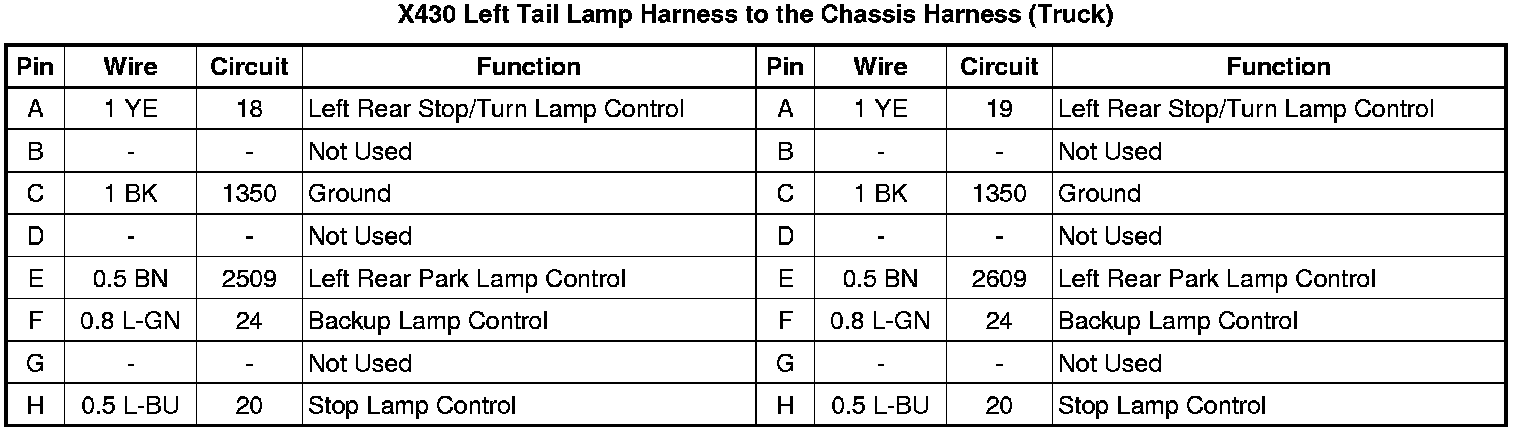

X430 Left Tail Lamp Harness to the Chassis Harness (Truck)
