Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connectors End Views By Number >> X200 - X299 >> X206

X206

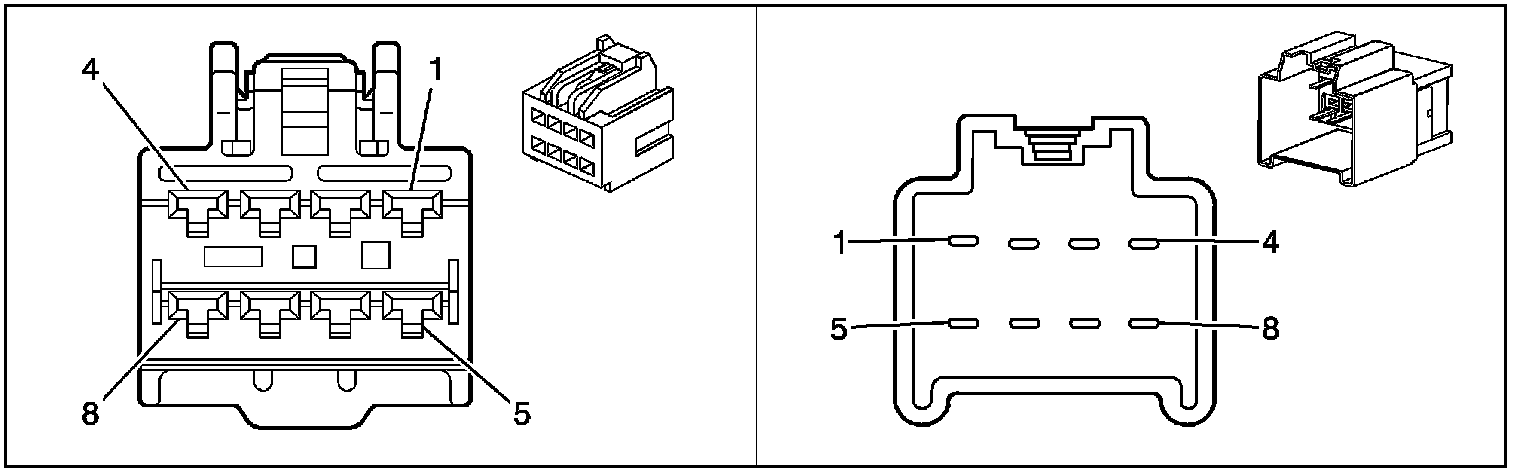

Inline Harness Connector End Views

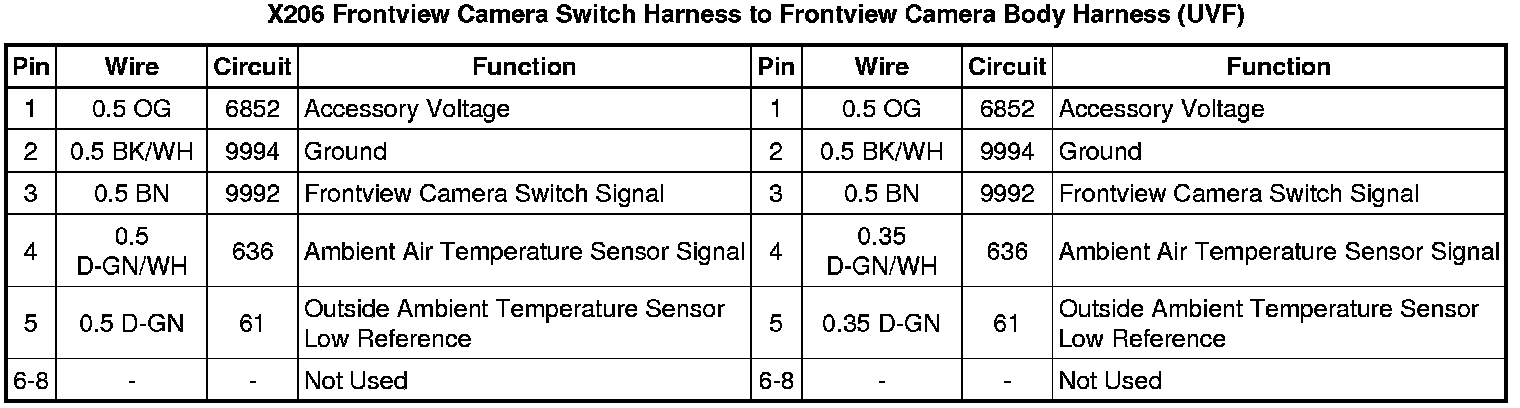

X206 Frontview Camera Switch Harness to Frontview Camera Body Harness (UVF)
