Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Of - Po

Of - Po




Component Connector End Views

Off Road Grille Lamp - Left (UNR)





Off Road Grille Lamp - Right (UNR)





Off Road Grille Lamp Relay (UNR)





Off Road Grille Lamp Switch (UNR)





Off Road Roof Lamp - Left (UNJ)





Off Road Roof Lamp - Right (UNJ)





Off Road Roof Lamp Relay (UNJ)





Off Road Roof Lamp Switch (UNJ)





Outside Rearview Mirror - Driver





Outside Rearview Mirror - Passenger





Outside Rearview Mirror Switch





Park/Turn Signal Lamp - Left Front (without TR6)





Park/Turn Signal Lamp - Right (without BRM)

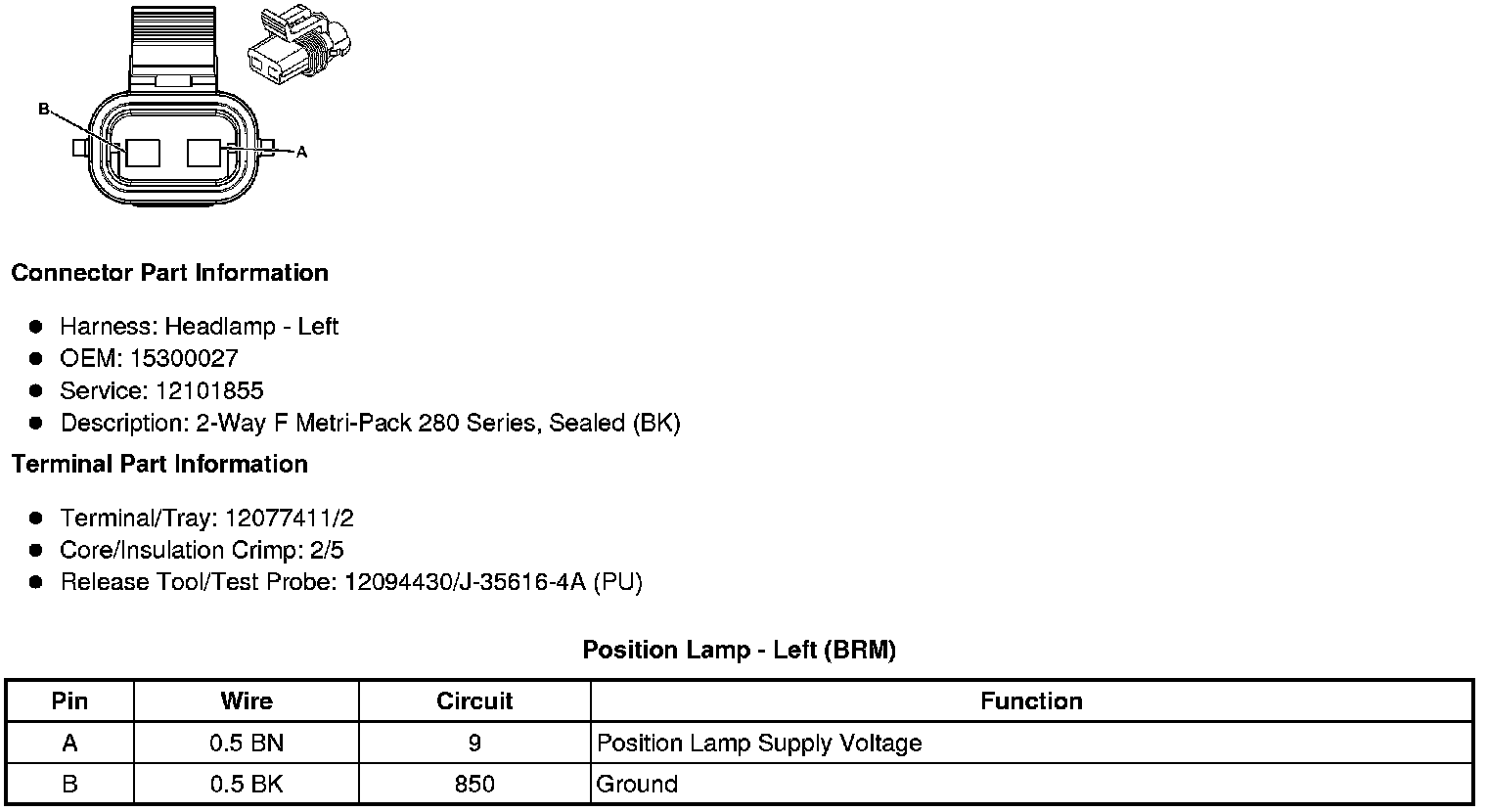

Position Lamp - Left (BRM)

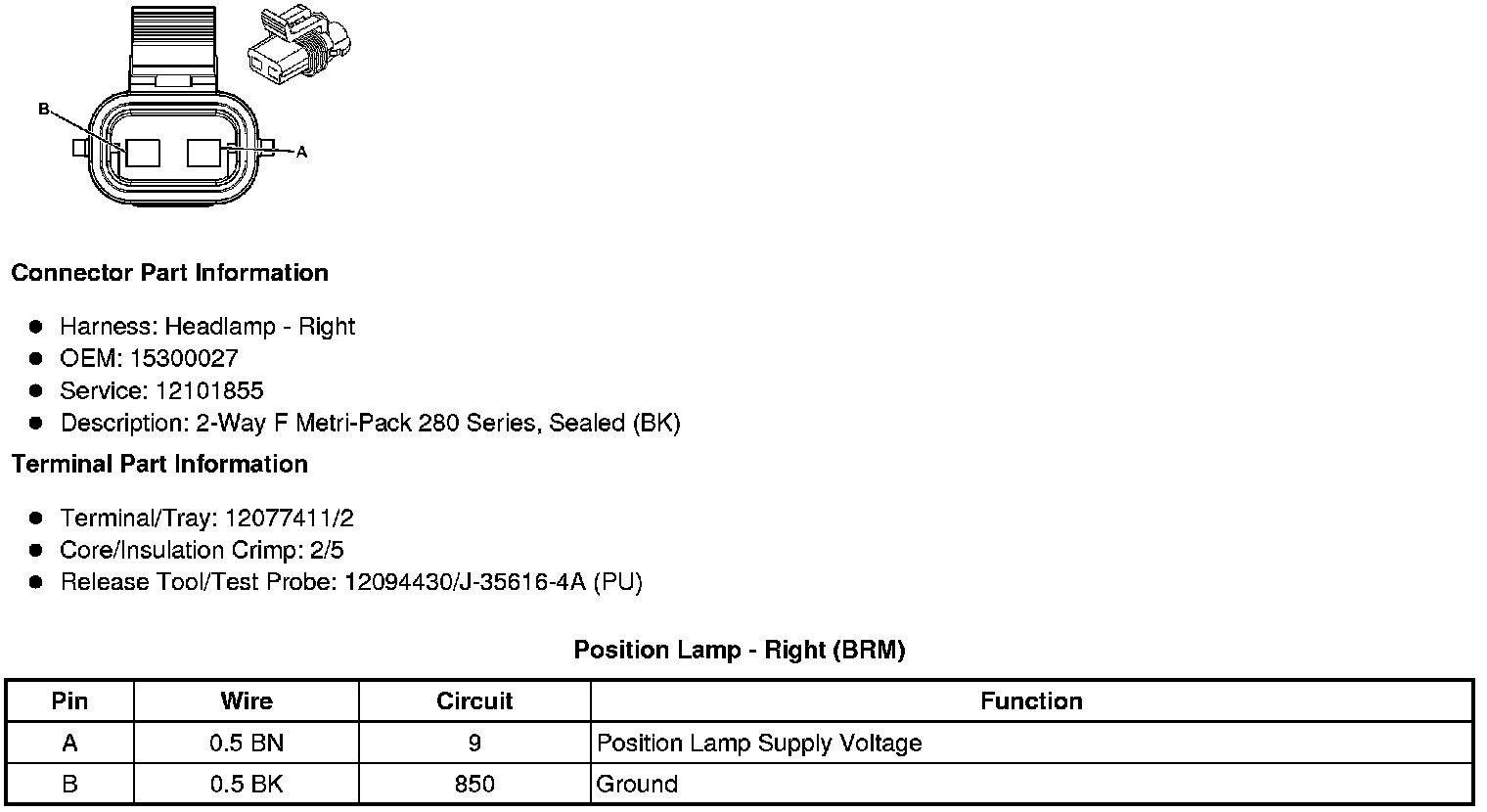

Position Lamp - Right (BRM)
