1-2 Shift - Di
Inline Harness Connector End Views

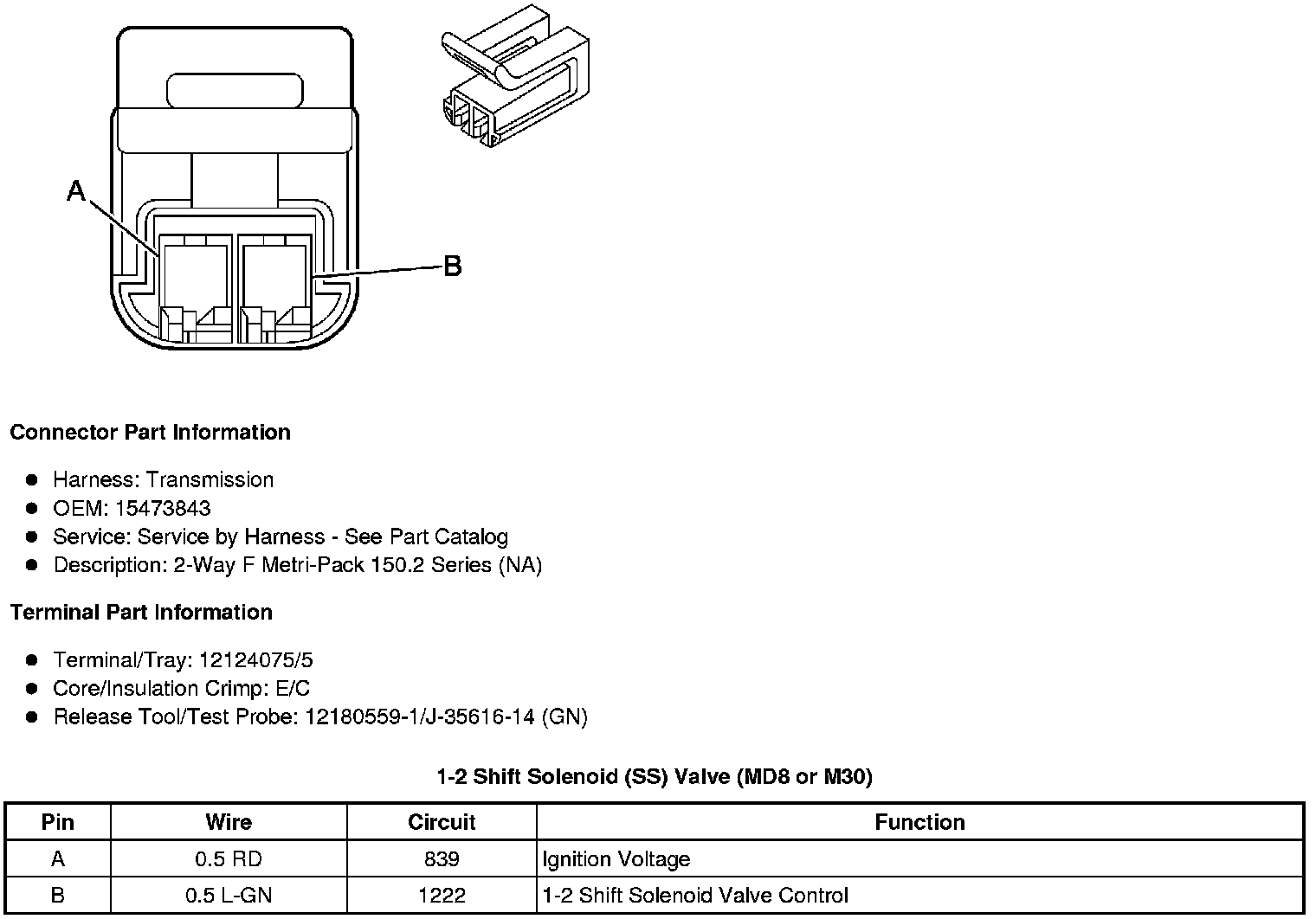

1-2 Shift Solenoid (SS) Valve (MD8 or M30)
2-3 Shift Solenoid (SS) Valve (MD8 or M30)
A/C Compressor Clutch (LH9 or LLR)
A/C Refrigerant Pressure Sensor
Accelerator Pedal Position (APP) Sensor
Accessory Power Outlet - I/P 1
Accessory Power Outlet - I/P 2
Accessory Power Outlet - Rear (SUV)

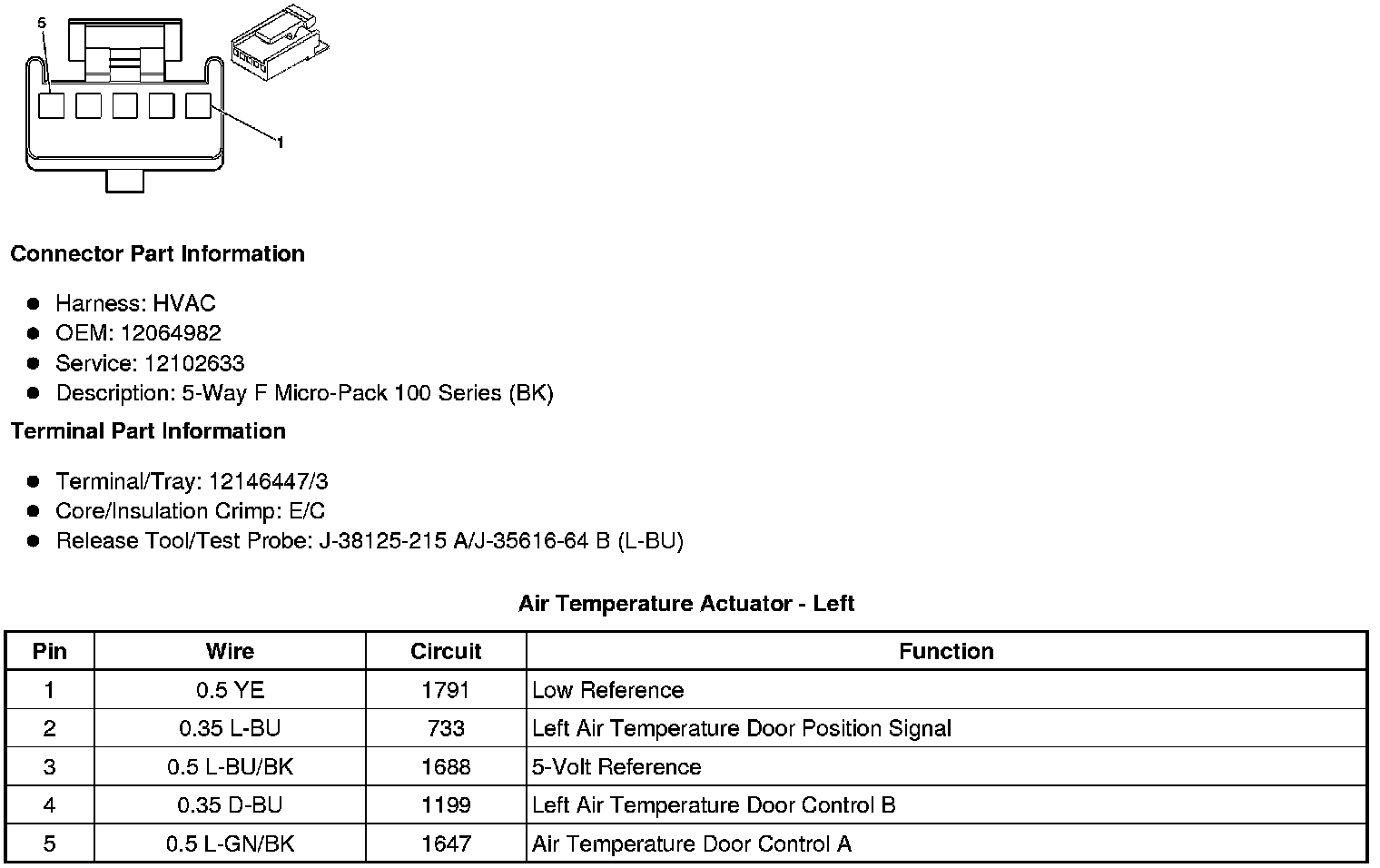

Air Temperature Actuator - Left

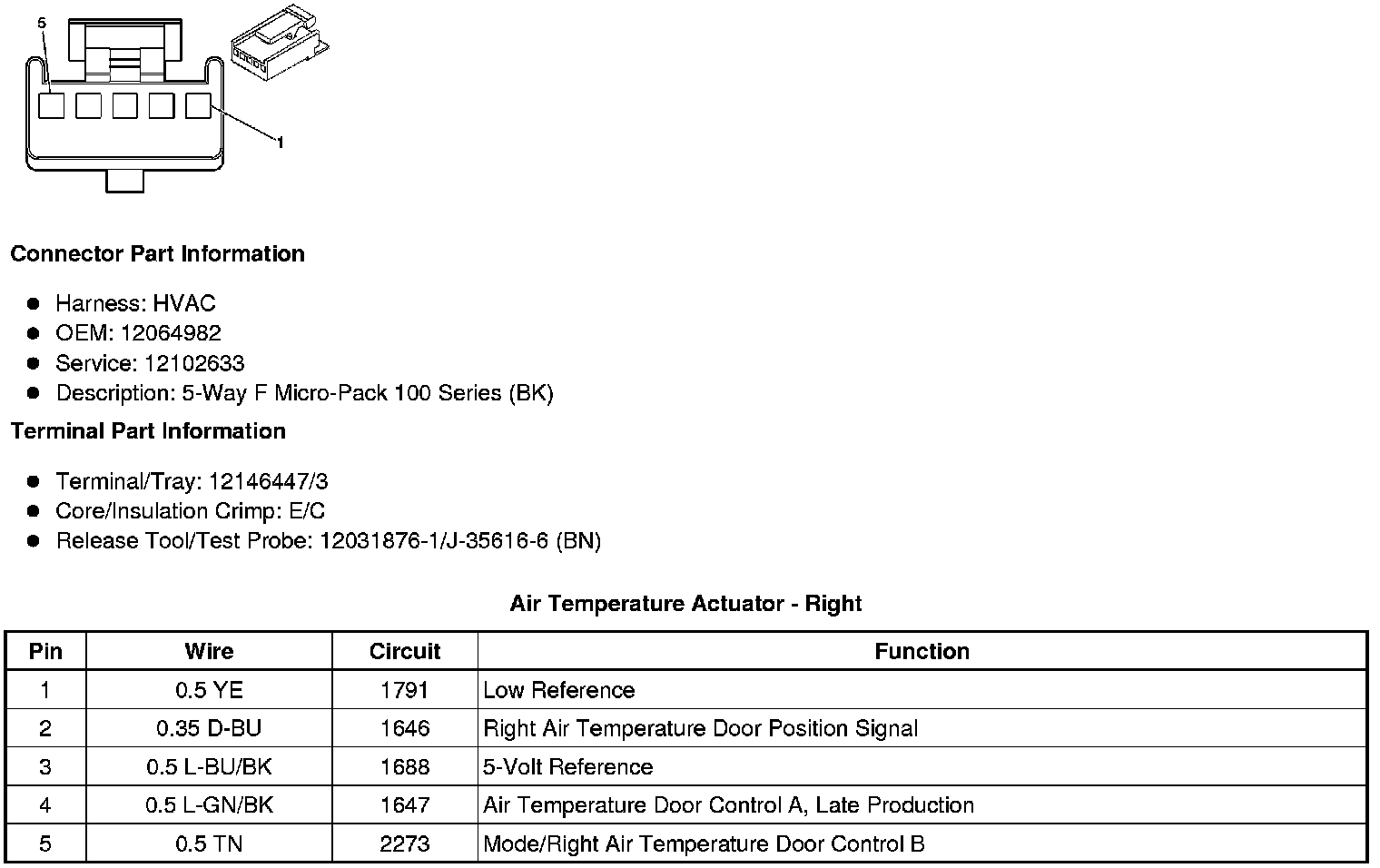

Air Temperature Actuator - Right
Ambient Air Temperature Sensor
Ambient Light Sensor

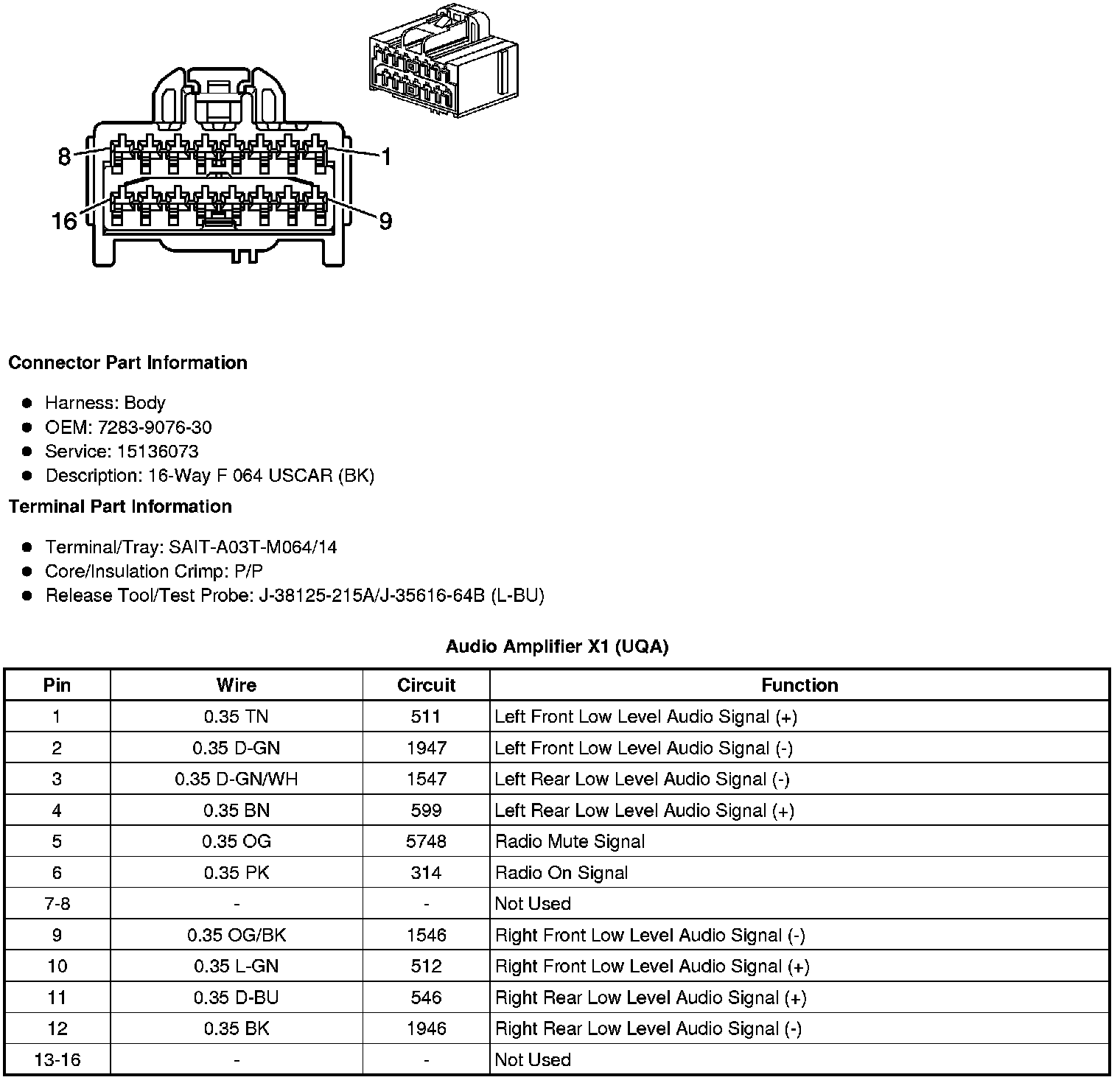

Audio Amplifier X1 (UQA)

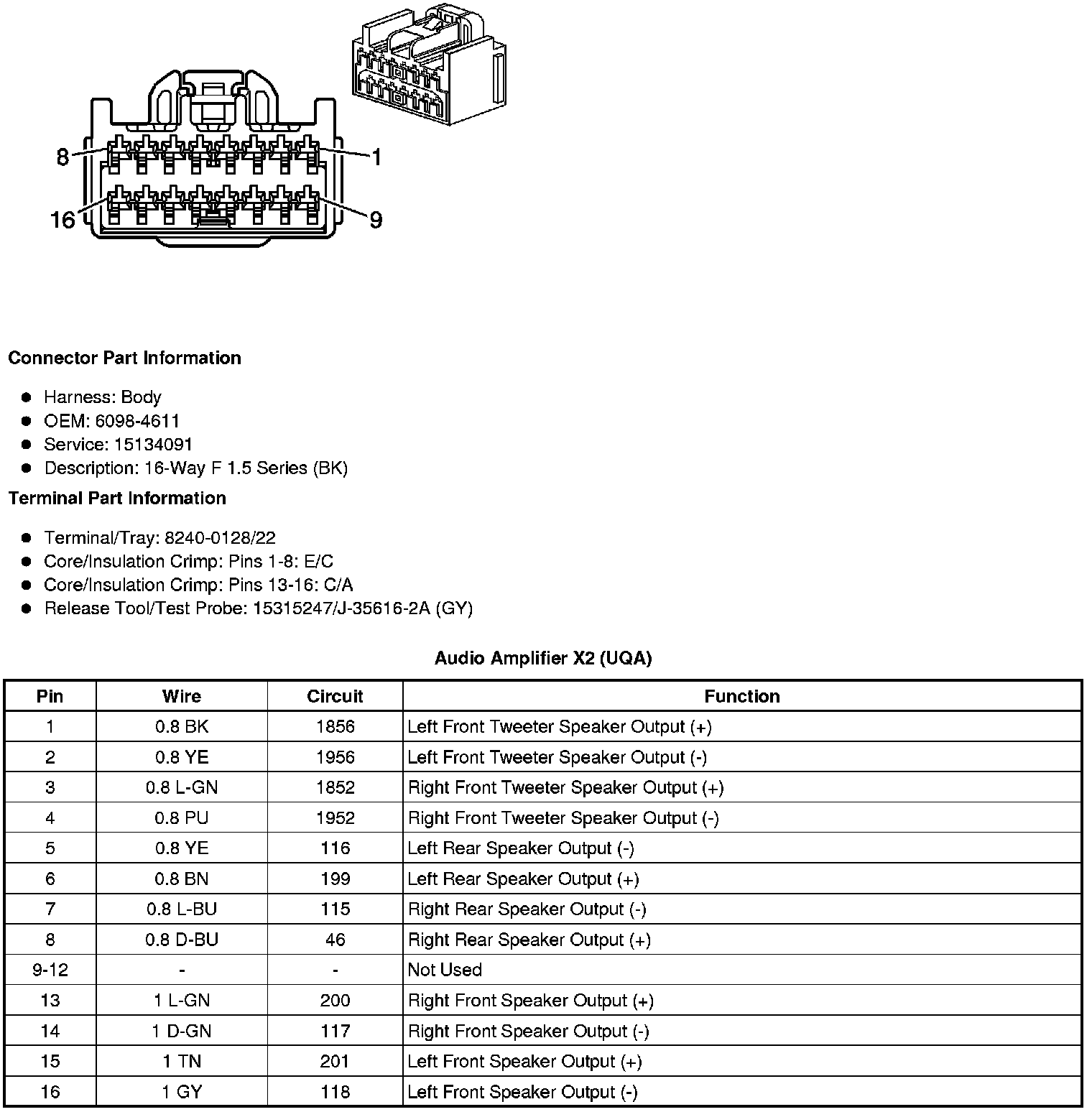

Audio Amplifier X2 (UQA)

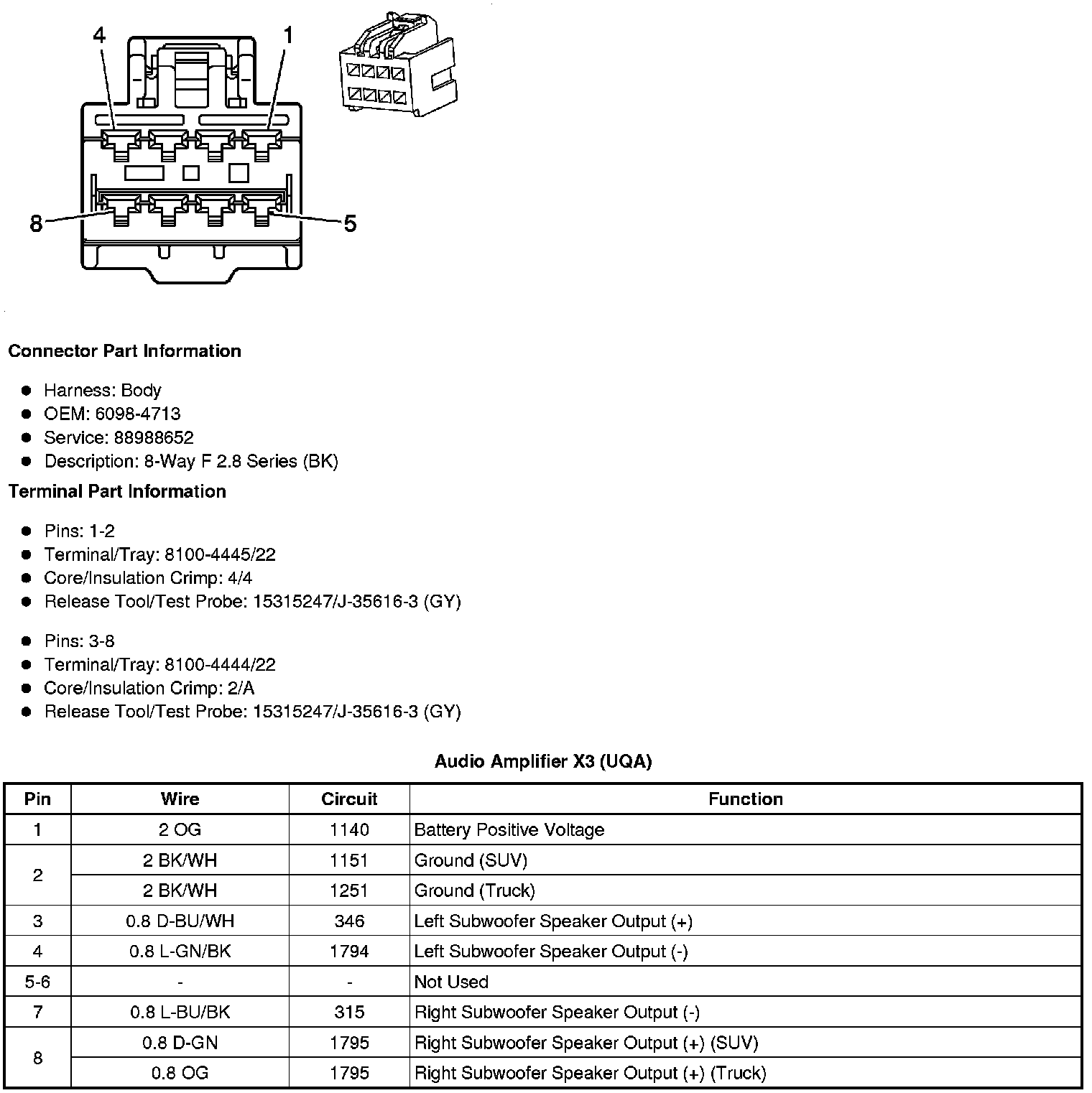

Audio Amplifier X3 (UQA)
Automatic Transmission Fluid Temperature (TFT) Sensor (MD8 or M30)
Automatic Transmission Input Speed Sensor (ISS) (MD8 or M30)
Backup Lamp - Left (SUV)
Backup Lamp - Left (Truck)
Backup Lamp - Right (SUV)
Backup Lamp - Right (Truck)
Backup Lamp Switch (MA5)
Battery -
Battery +

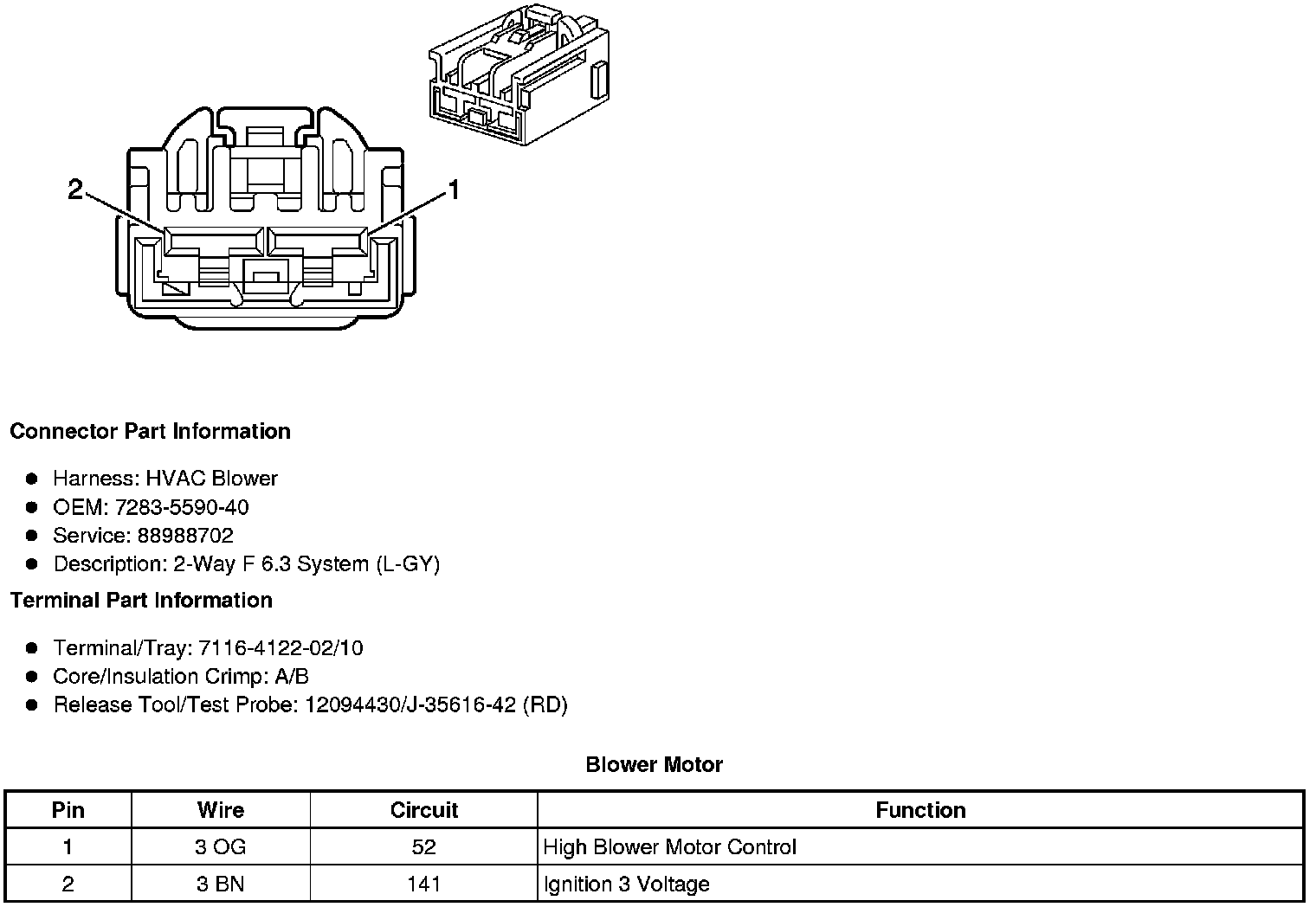

Blower Motor
Blower Motor High Speed Relay
Blower Motor Resistor
Body Control Module (BCM) X1
Body Control Module (BCM) X2
Brake Fluid Level Switch
Camshaft Position (CMP) Actuator Solenoid Valve (LH9)
Camshaft Position (CMP) Actuator Solenoid Valve (LLR)
Camshaft Position (CMP) Sensor (LH9)
Camshaft Position (CMP) Sensor (LLR)

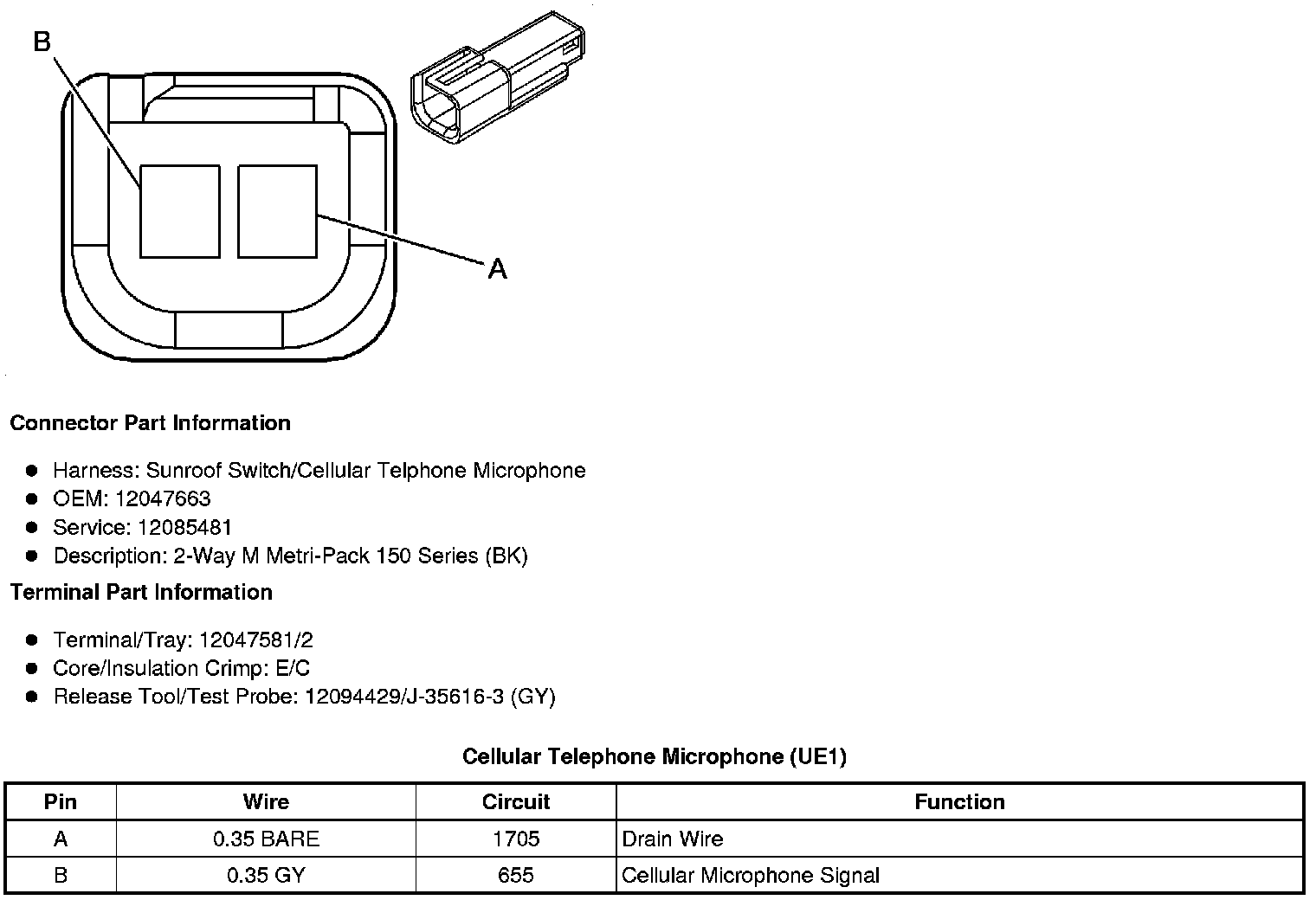

Cellular Telephone Microphone (UE1)

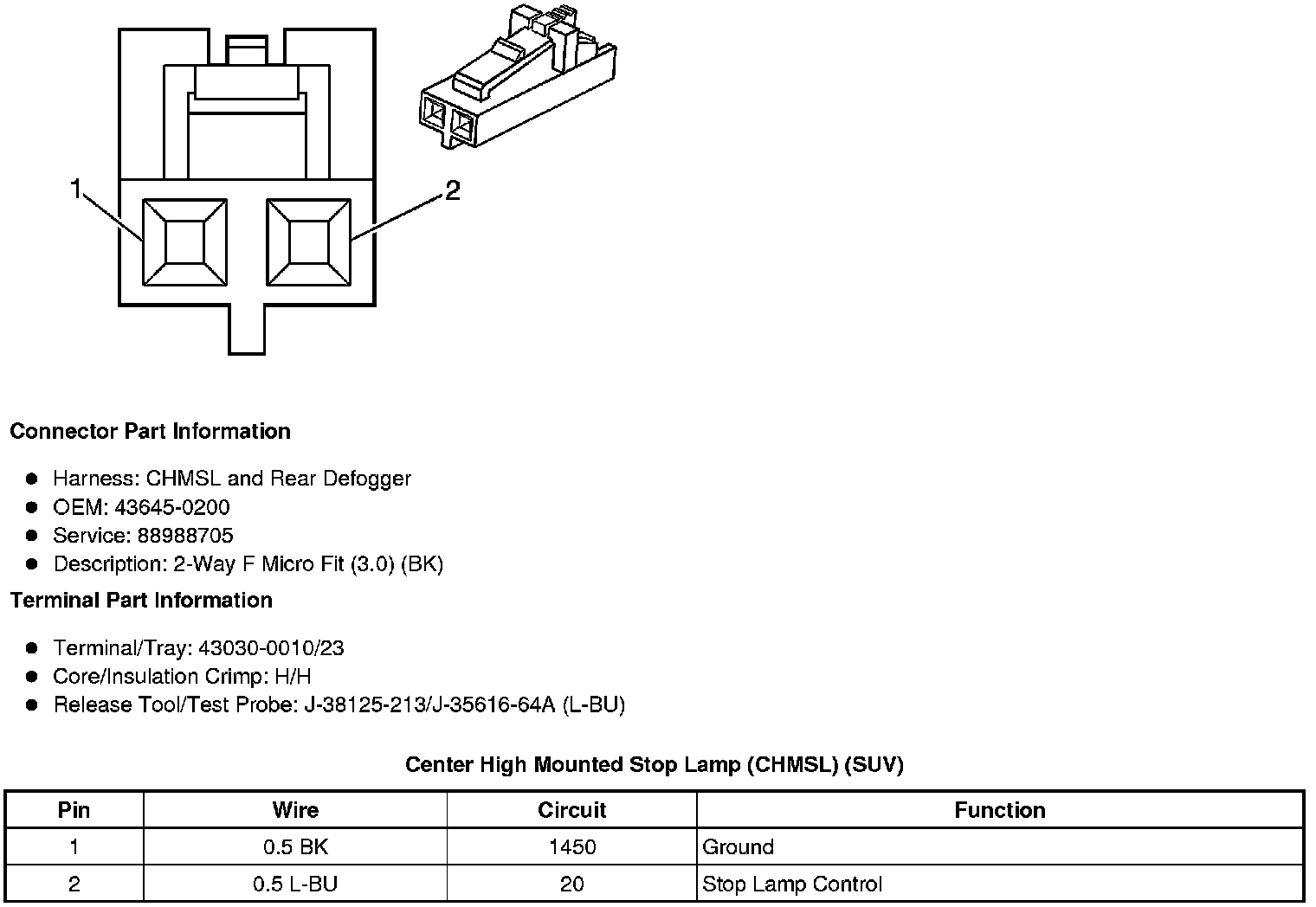

Center High Mounted Stop Lamp (CHMSL) (SUV)

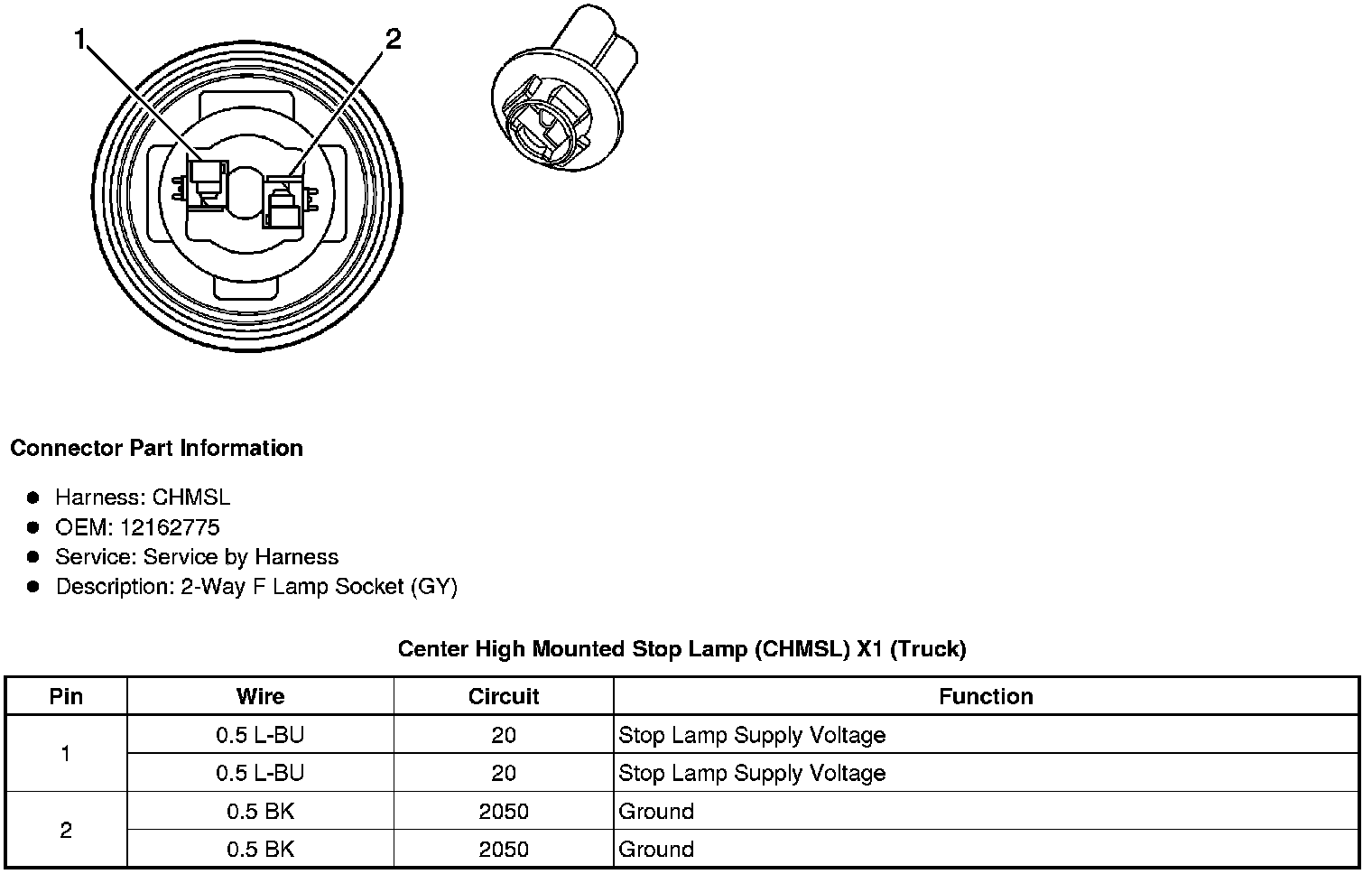

Center High Mounted Stop Lamp (CHMSL) X1 (Truck)

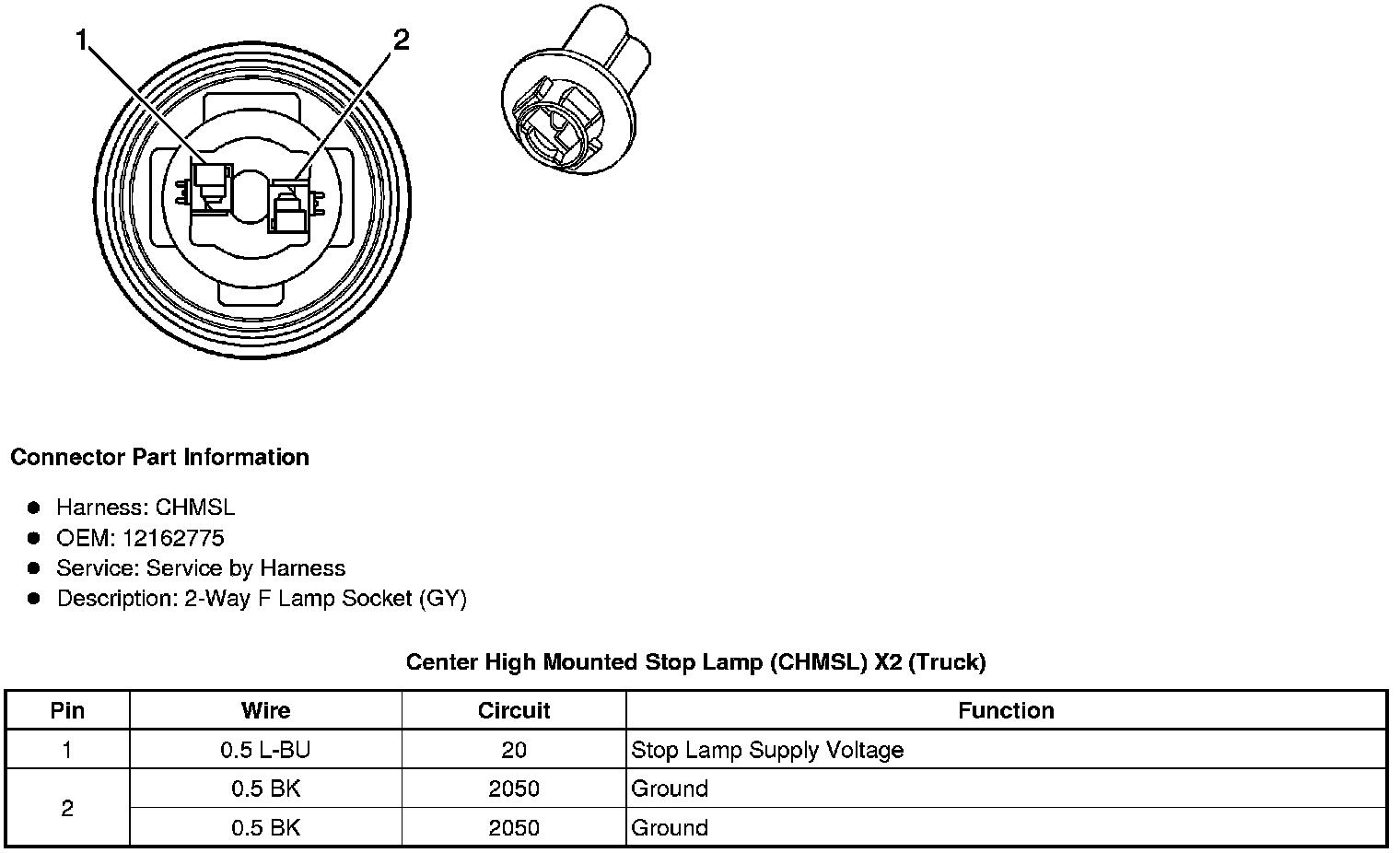

Center High Mounted Stop Lamp (CHMSL) X2 (Truck)

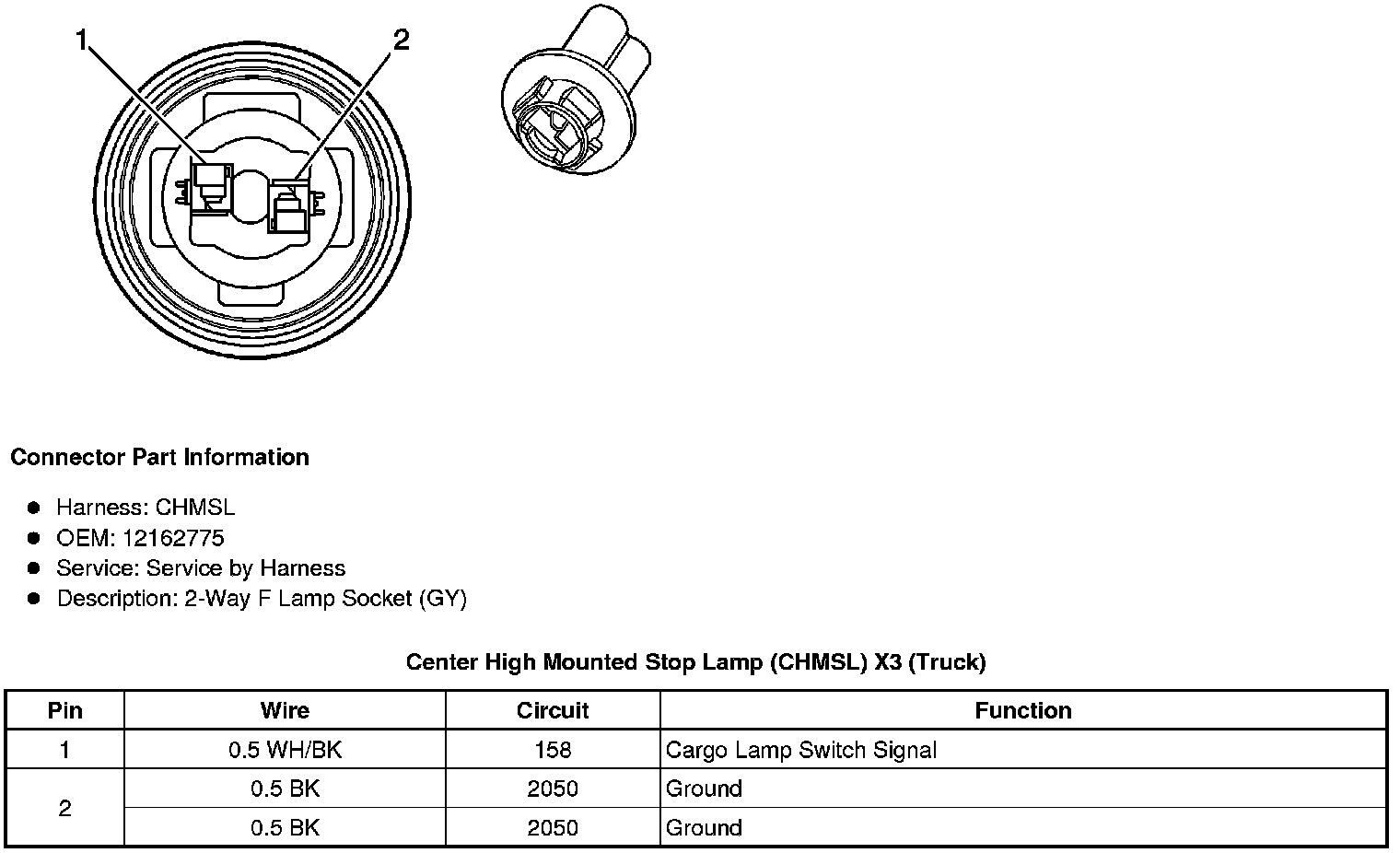

Center High Mounted Stop Lamp (CHMSL) X3 (Truck)

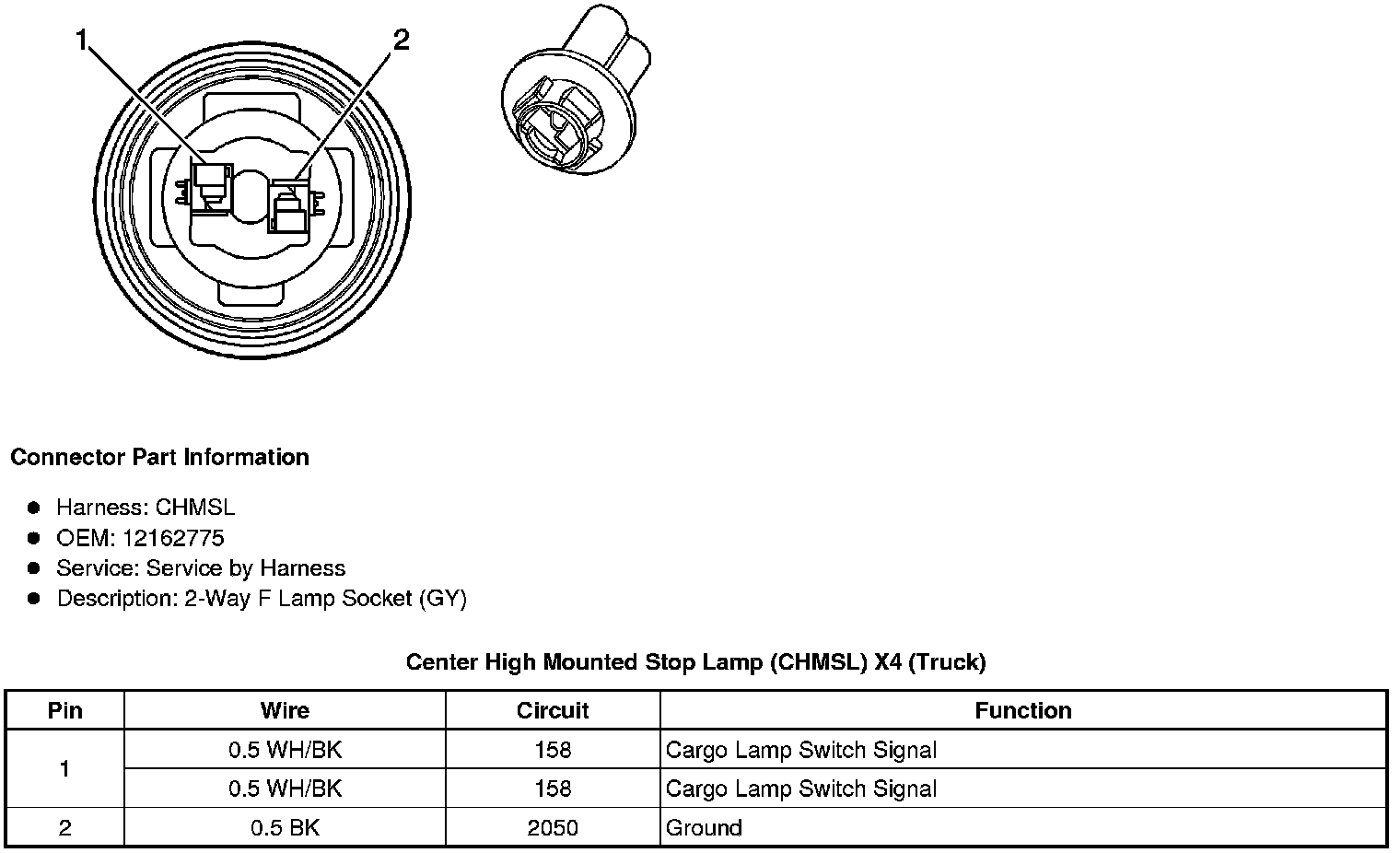

Center High Mounted Stop Lamp (CHMSL) X4 (Truck)
Clutch Pedal Position (CPP) Sensor (MA5)
Crankshaft Position (CKP) Sensor (LH9)
Crankshaft Position (CKP) Sensor (LLR)
Cruise Control Release Switch
Data Link Connector (DLC)
Data Link Resistor

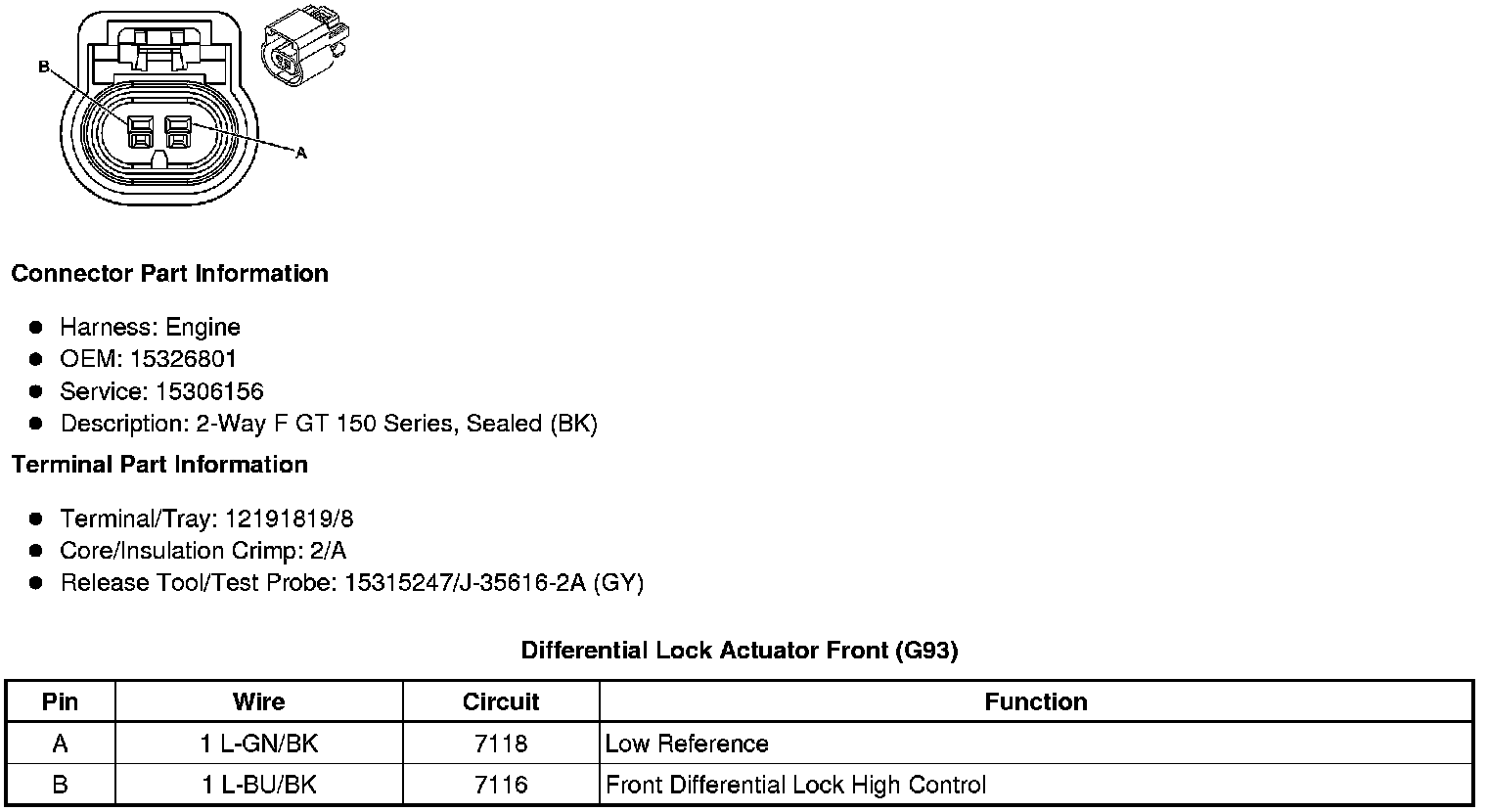

Differential Lock Actuator Front (G93)

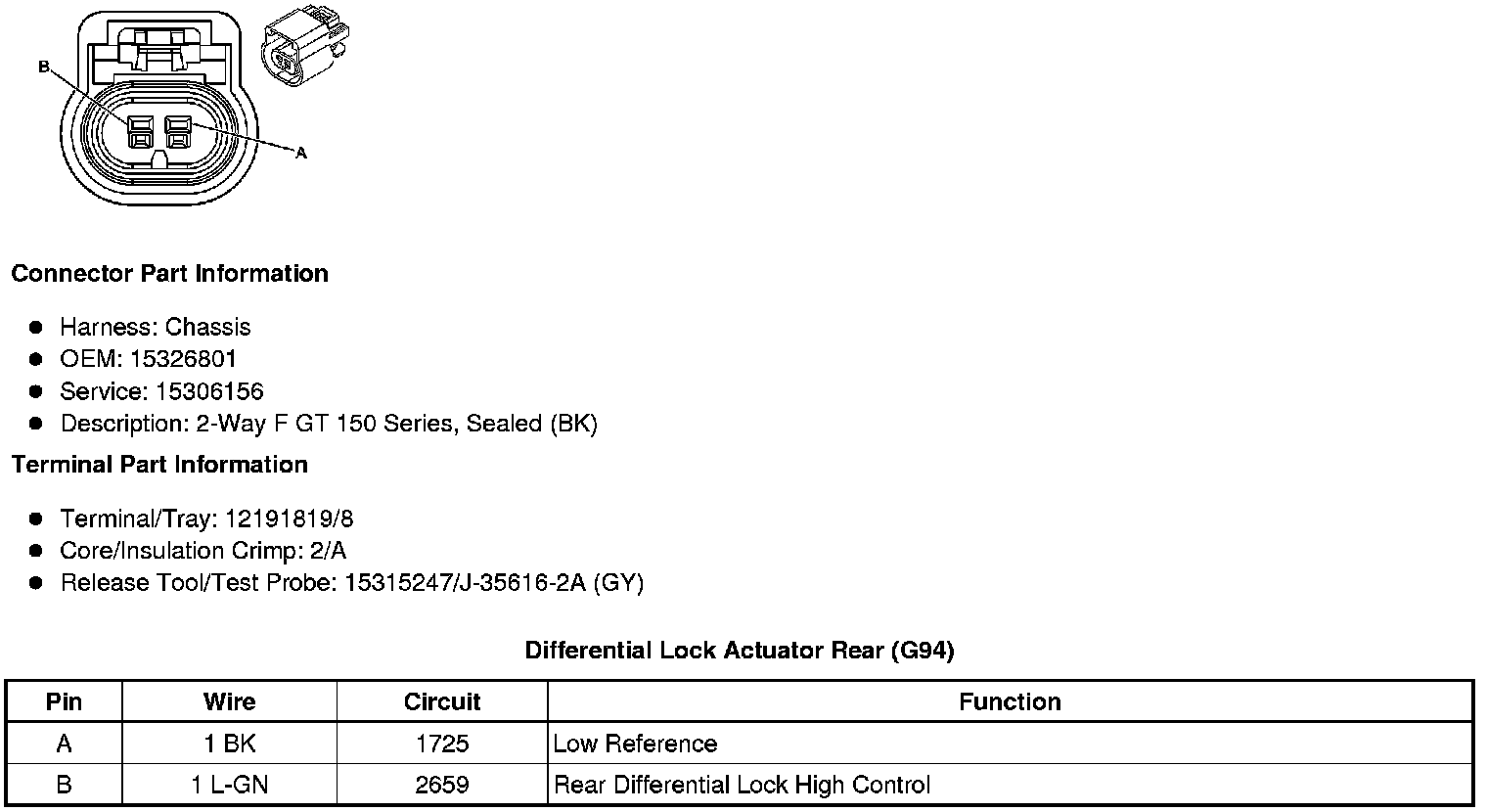

Differential Lock Actuator Rear (G94)

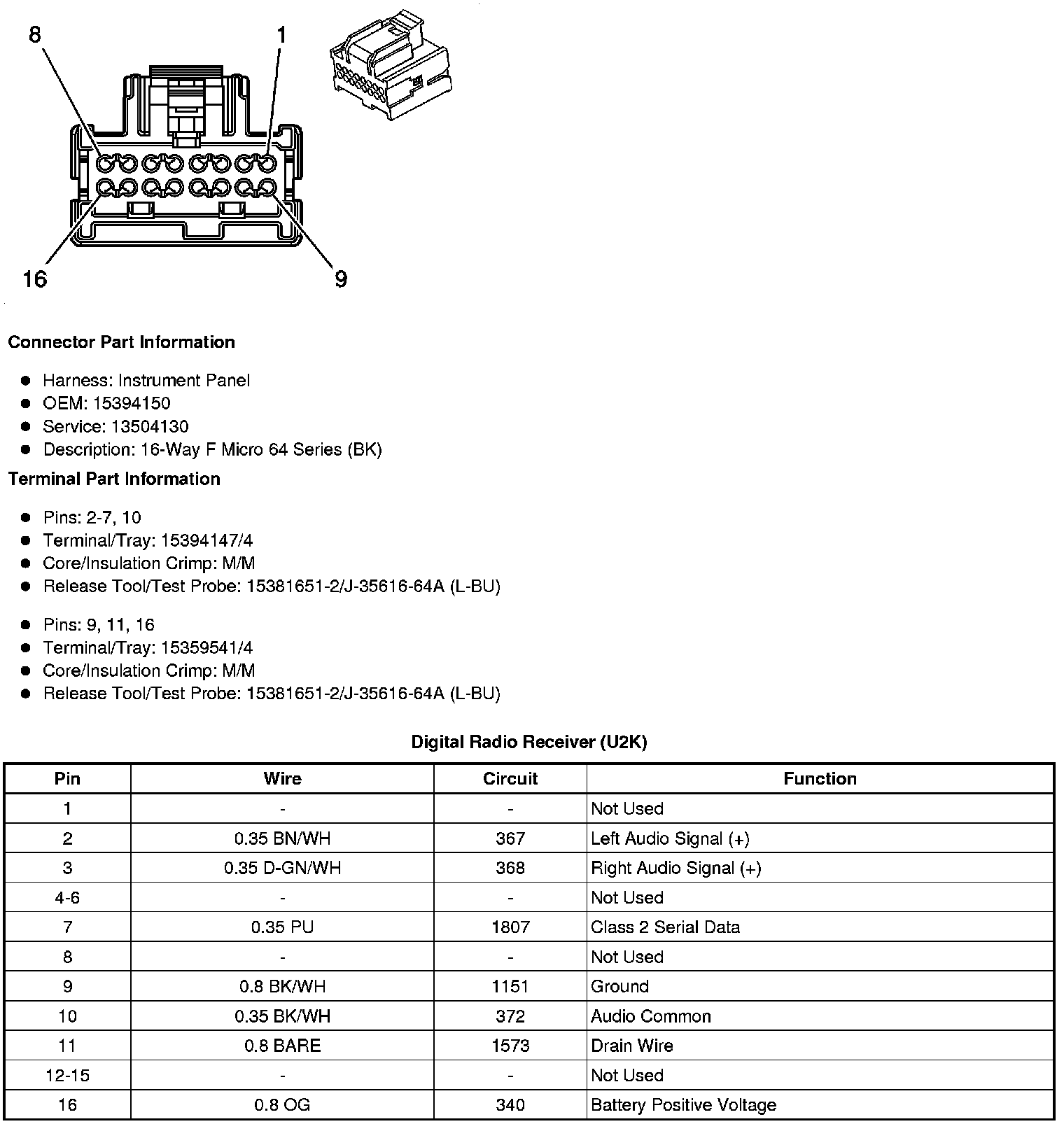

Digital Radio Receiver (U2K)
Digital Video Disc (DVD) Control Module X1 (SPO DVD)

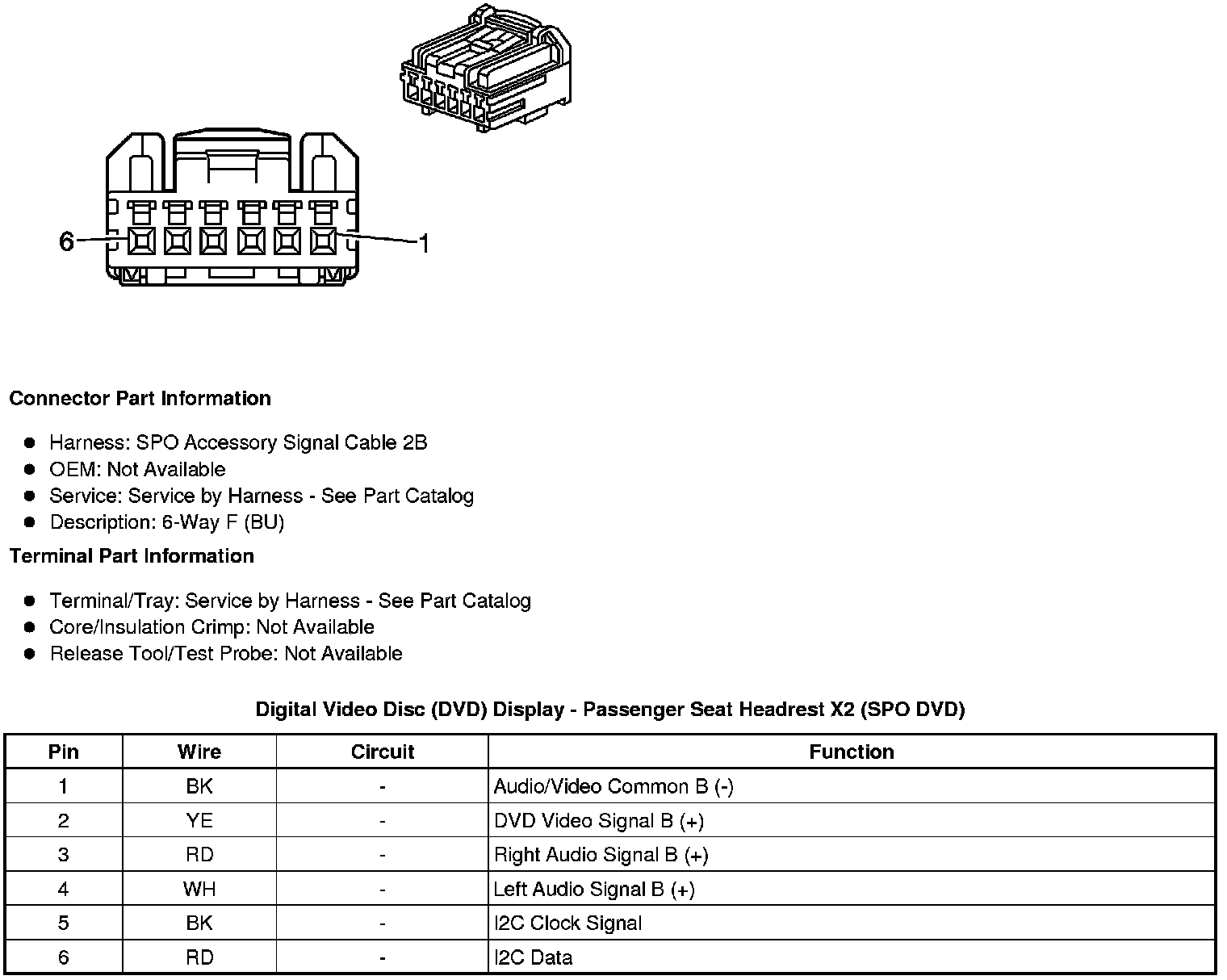

Digital Video Disc (DVD) Display - Passenger Seat Headrest X2 (SPO DVD)
Digital Video Disc (DVD) Control Module X3 (SPO DVD)
Digital Video Disc (DVD) Control Module X4 (SPO DVD)
Digital Video Disc (DVD) Control Module X5 (SPO DVD)
Digital Video Disc (DVD) Control Module X6 (SPO DVD)
Digital Video Disc (DVD) Display - Driver Seat Headrest X1 (SPO DVD)
