Clutch Pedal Position Sensor / Switch: Diagrams




Component Connector End Views

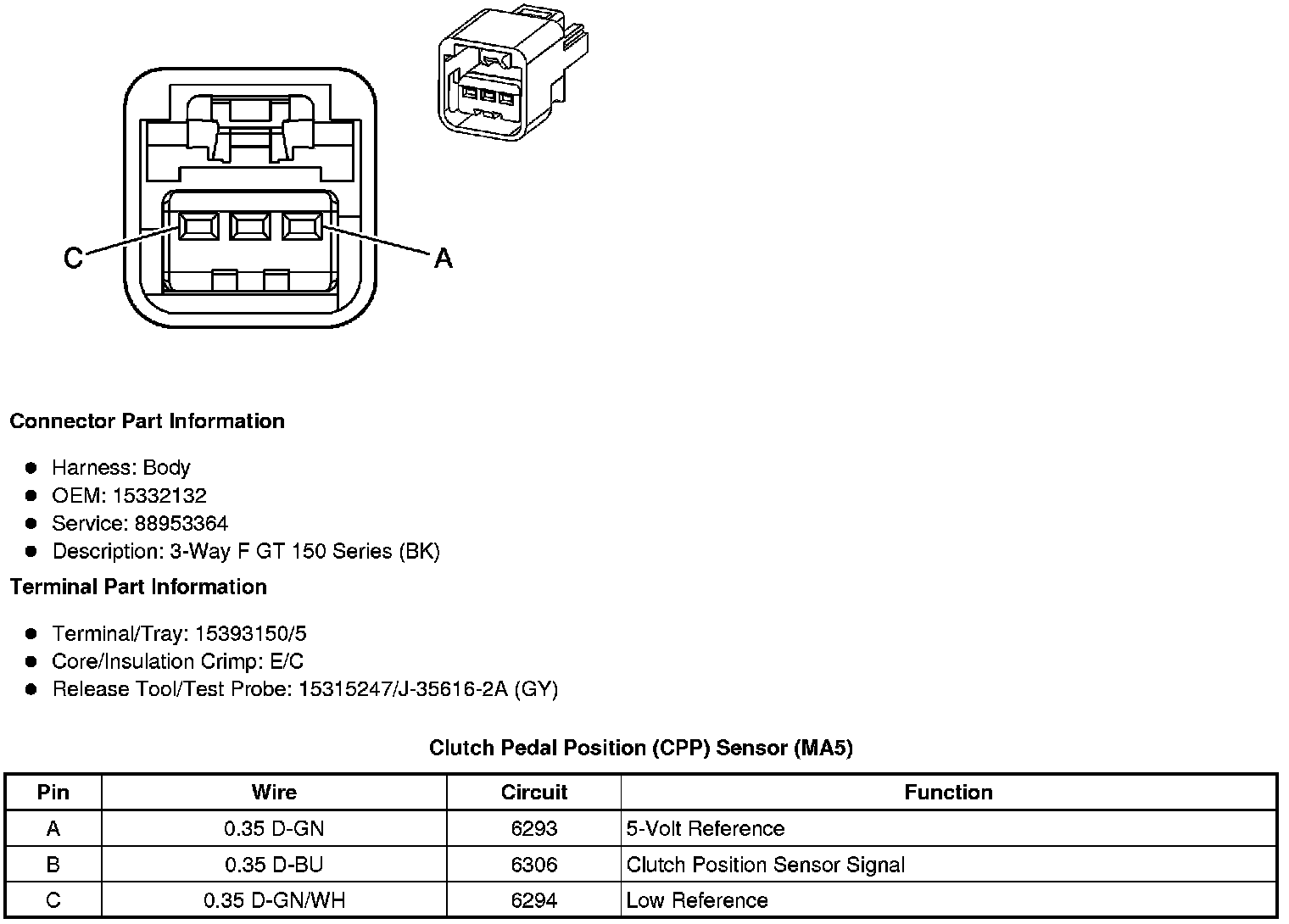

Clutch Pedal Position (CPP) Sensor (MA5)
