Turn Signal Switch: Locations

Instrument Panel/Center Console Component Views

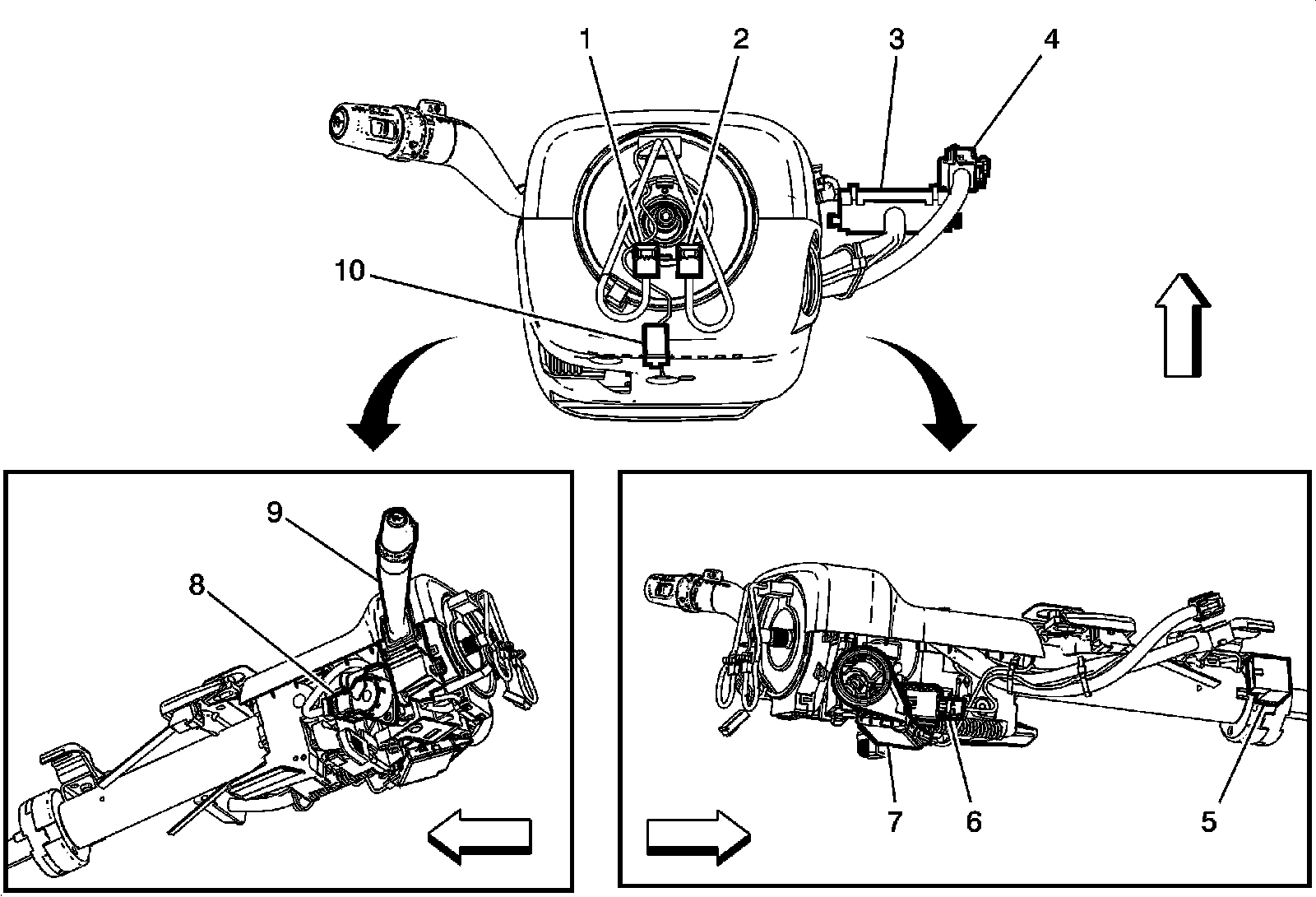

Steering Column Components




1 - Inflatable Restraint Steering Wheel Module X2
2 - Inflatable Restraint Steering Wheel Module X1
3 - X201 (Right Hand Drive)
4 - X275 (Right Hand Drive)
5 - Steering Wheel Position Sensor
6 - Ignition Lock Cylinder Control Actuator (MD8 or M30)
7 - Theft Deterrent Module (TDM) (BAE)
8 - Ignition Switch
9 - Turn Signal/Multifunction Switch
10 - Horn Switch Connector

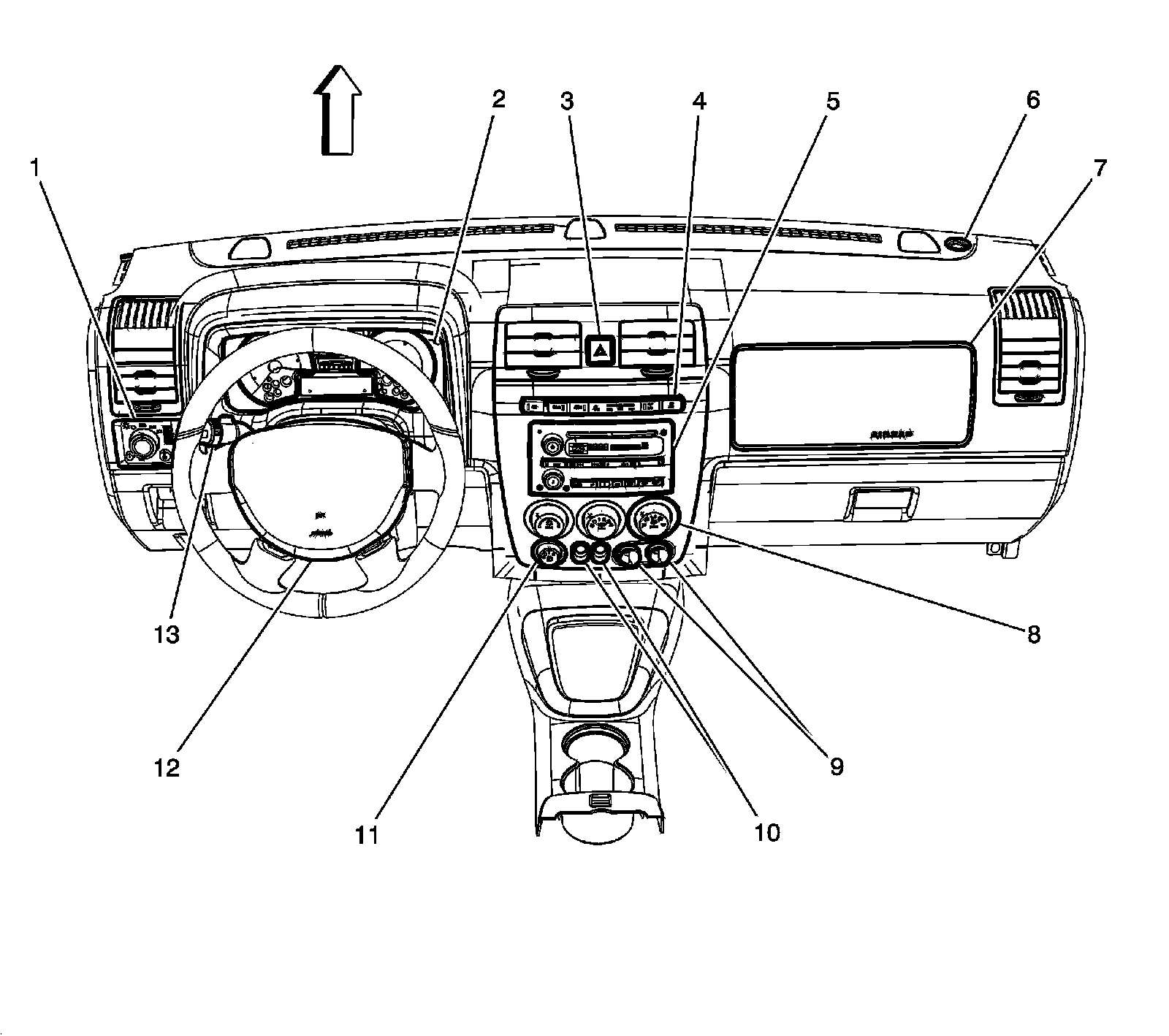

Front of the I/P Components




1 - Headlamp Switch (Left Hand Drive)
2 - Instrument Panel Cluster (IPC) (Left Hand Drive)
3 - Hazard Warning Switch
4 - Multifunction Switch I/P
5 - Radio
6 - Ambient Light Sensor (Left Hand Drive)
7 - Inflatable Restraint I/P Module (Left Hand Drive)
8 - HVAC Control Module
9 - Accessory Power Outlet - I/P 1 and Accessory Power Outlet - I/P 2
10 - Frontview Camera Switch (UVF), Off Road Grille Lamp Switch (UNR), Off Road Roof Lamp Switch (UNJ), or Traction Control Switch (TCS) (G93)
11 - Window Wiper/Washer Switch - Rear (SUV)
12 - Inflatable Restraint Steering Wheel Module (Left Hand Drive)
13 - Turn Signal/Multifunction Switch (Left Hand Drive)

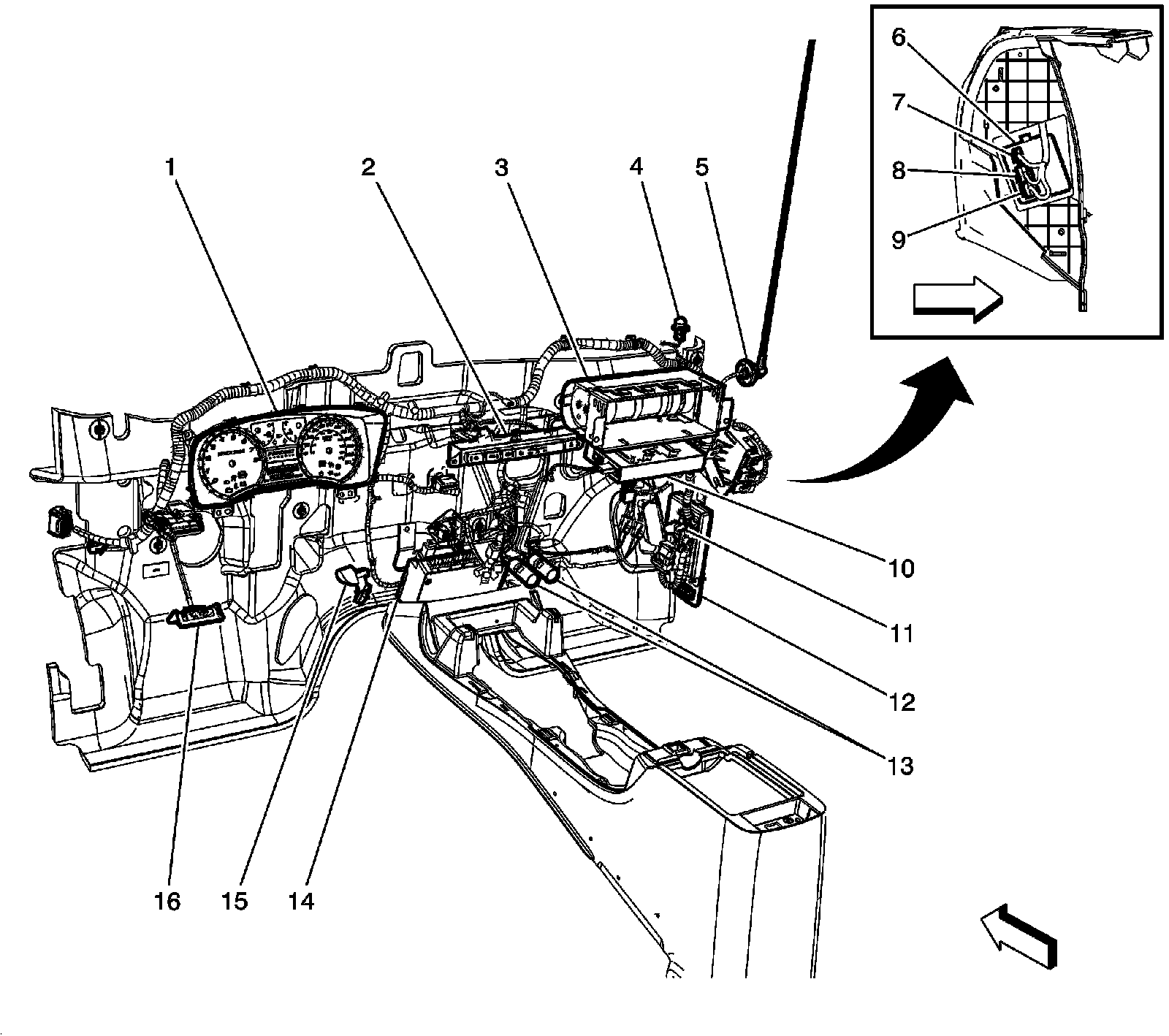

Behind the I/P Components - 1 of 2




1 - Instrument Panel Cluster (Left Hand Drive)
2 - Multifunction Switch - I/P
3 - Inflatable Restraint I/P Module
4 - Ambient Light Sensor (Left Hand Drive)
5 - Radio Antenna
6 - Transfer Case Shift Control Module
7 - Transfer Case Shift Control Module X3
8 - Transfer Case Shift Control Module X2
9 - Transfer Case Shift Control Module X1
10 - Digital Radio Receiver (U2K)
11 - I/P Courtesy Lamp - Right (Left Hand Drive)
12 - Body Control Module (BCM)
13 - Accessory Power Outlet - 1 and Accessory Power Outlet - 2
14 - Vehicle Communication Interface Module (VCIM) (UE1) or Serial Data Gateway Module (SDGM) (LVC)
15 - I/P Courtesy Lamp - Left (Left Hand Drive)
16 - Data Link Connector (DLC)
