Transmission Speed Sensor: Diagrams

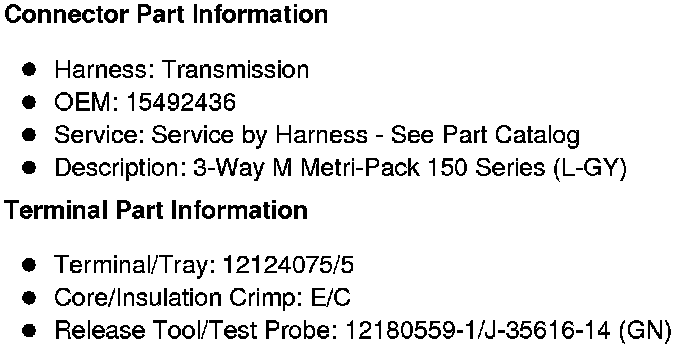

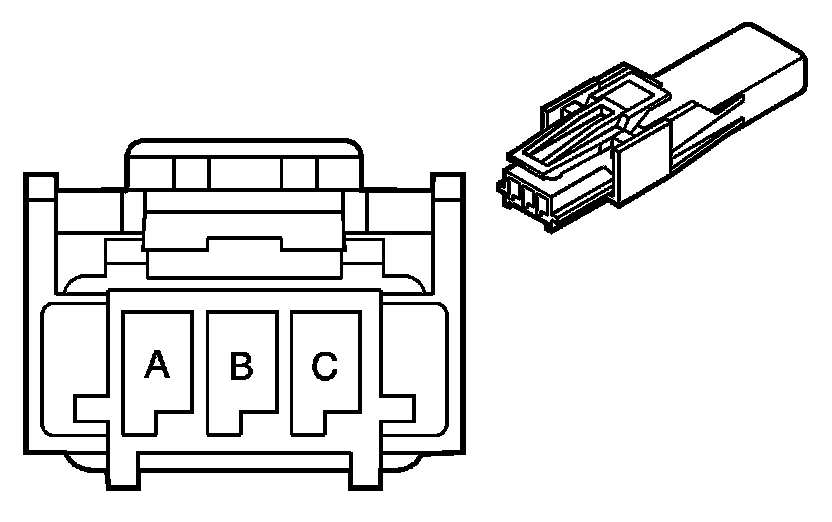

Component Connector End Views

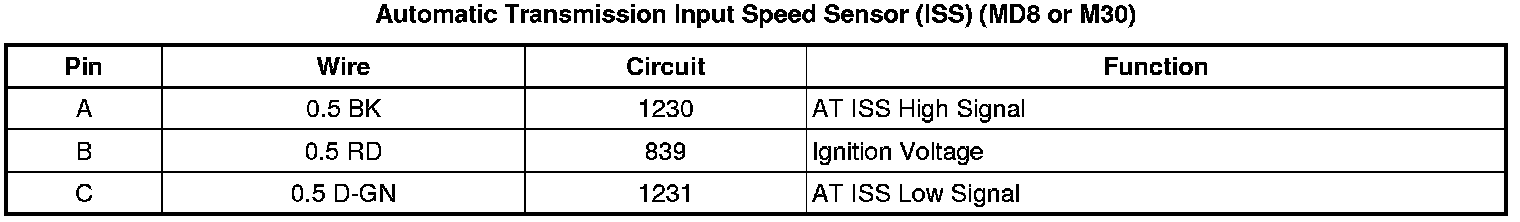

Automatic Transmission Input Speed Sensor (ISS) (MD8 or M30)
