Oxygen Sensor: Diagrams

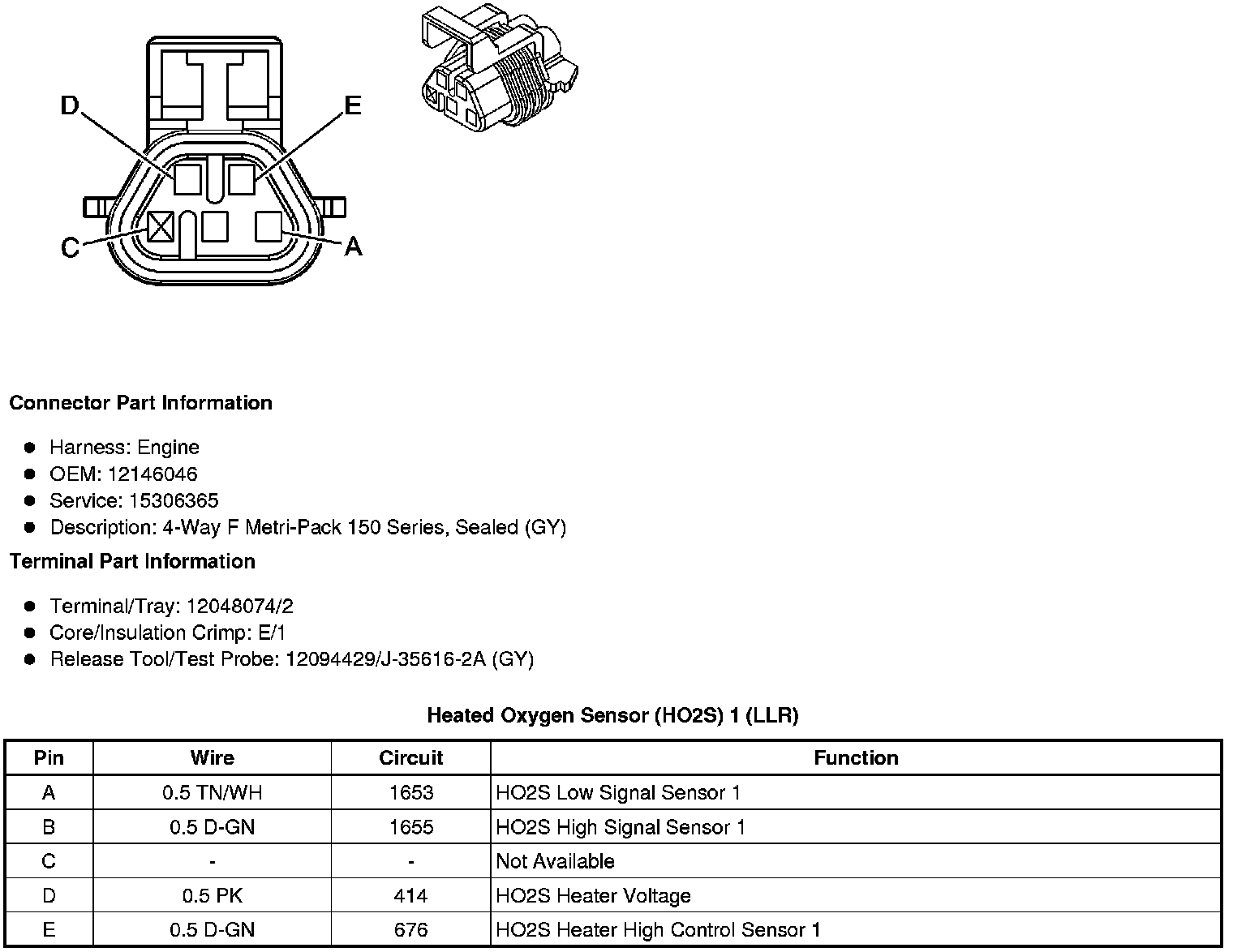

Heated Oxygen Sensor (HO2S) 1 (LLR)

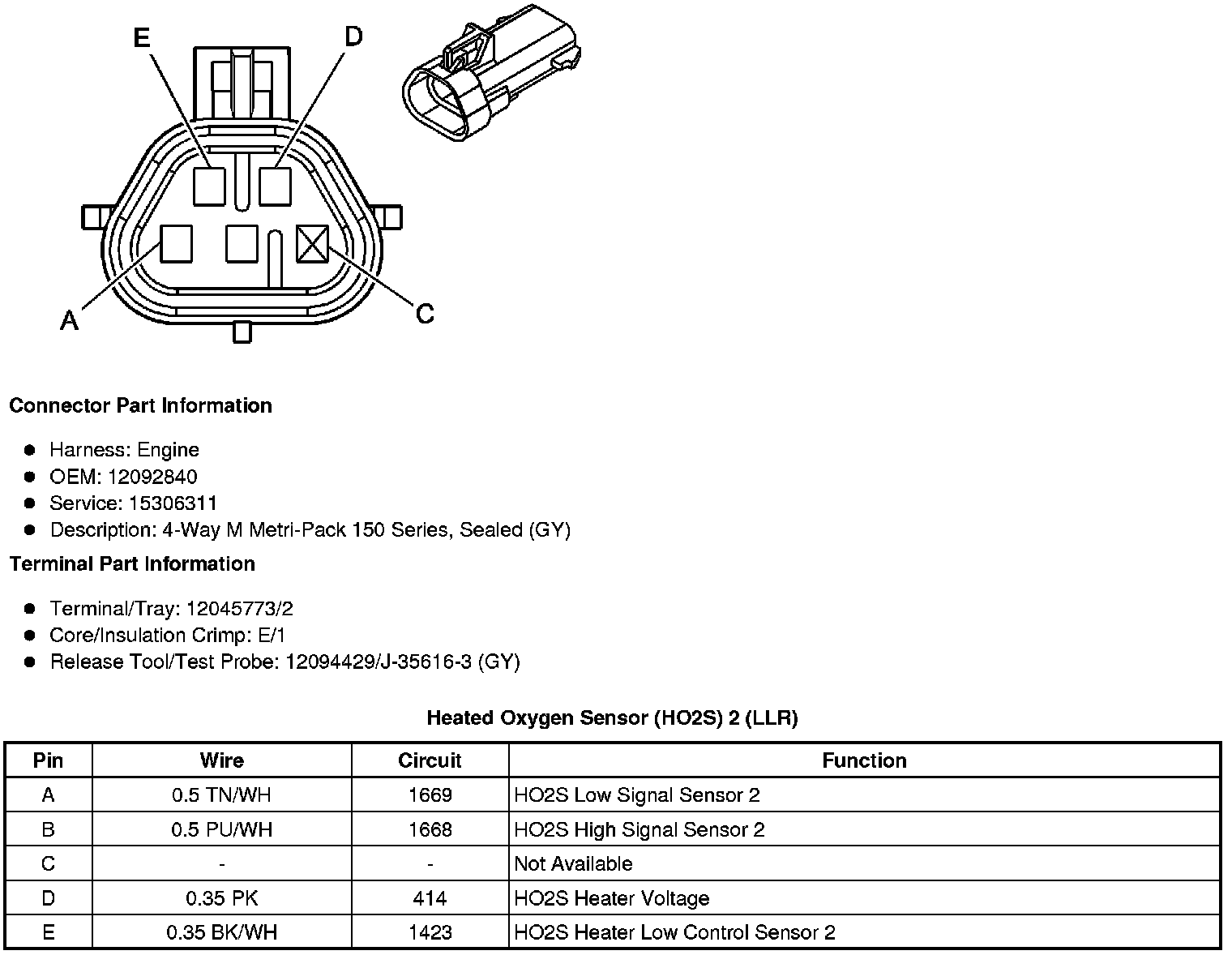

Heated Oxygen Sensor (HO2S) 2 (LLR)

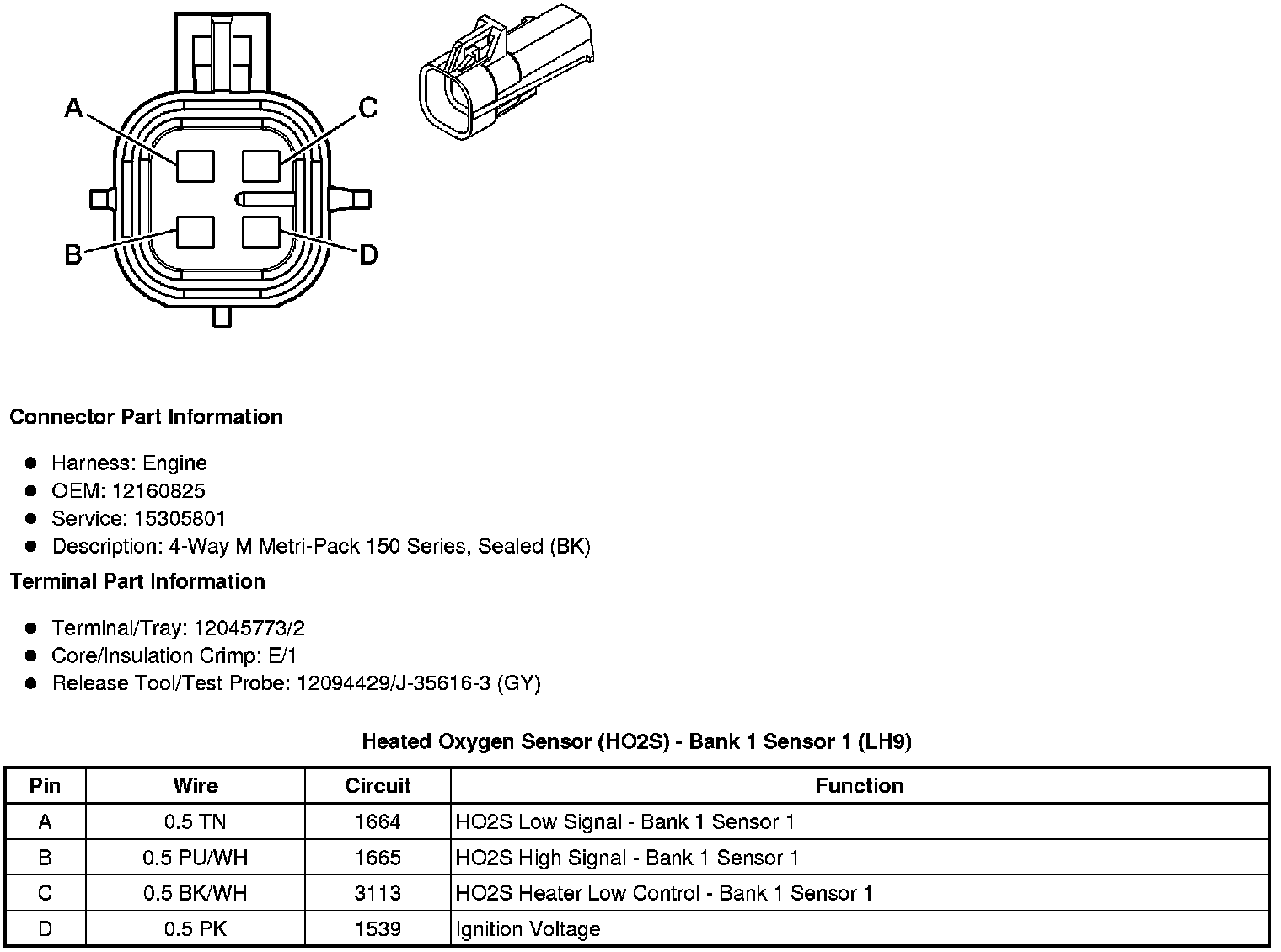

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LH9)

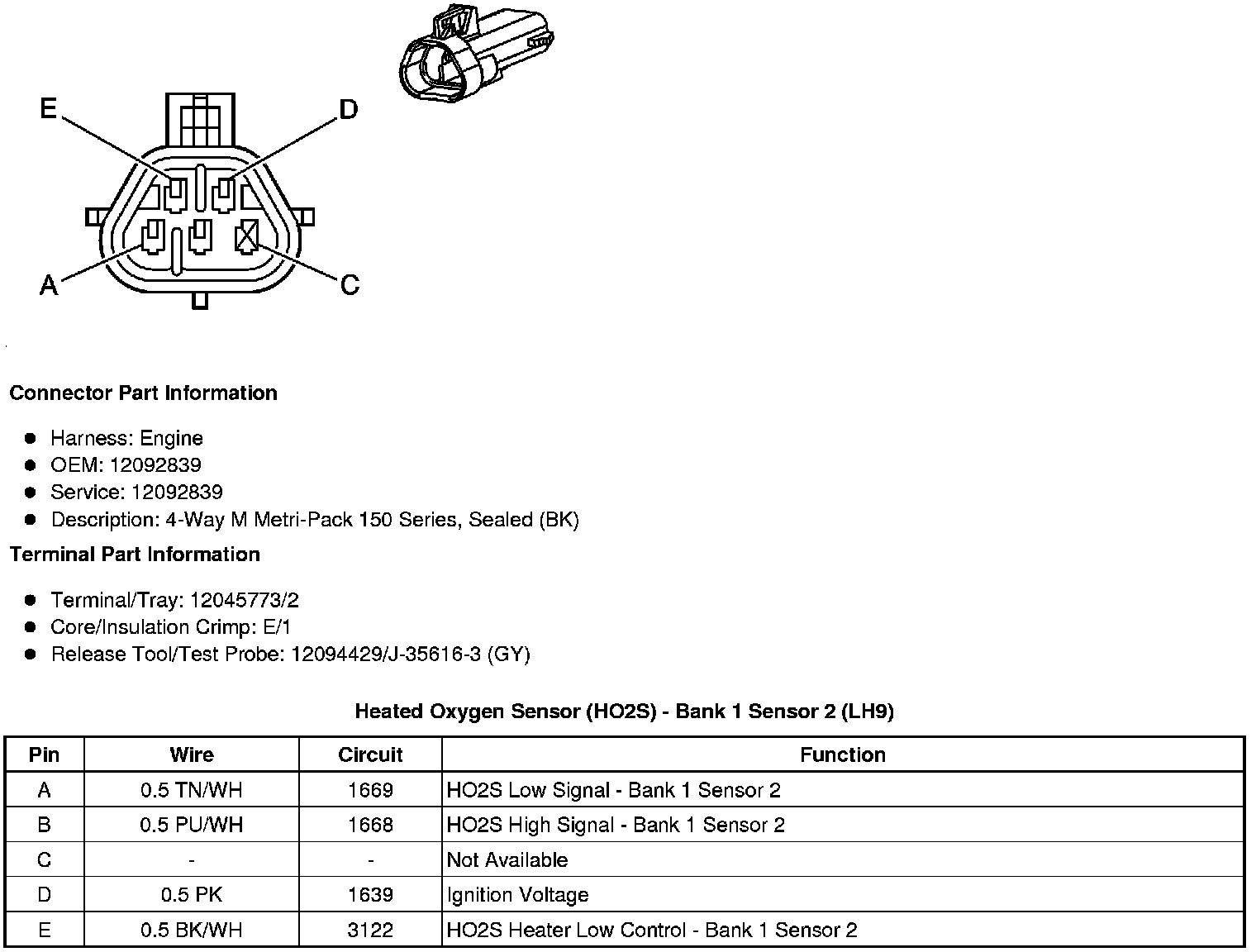

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH9)

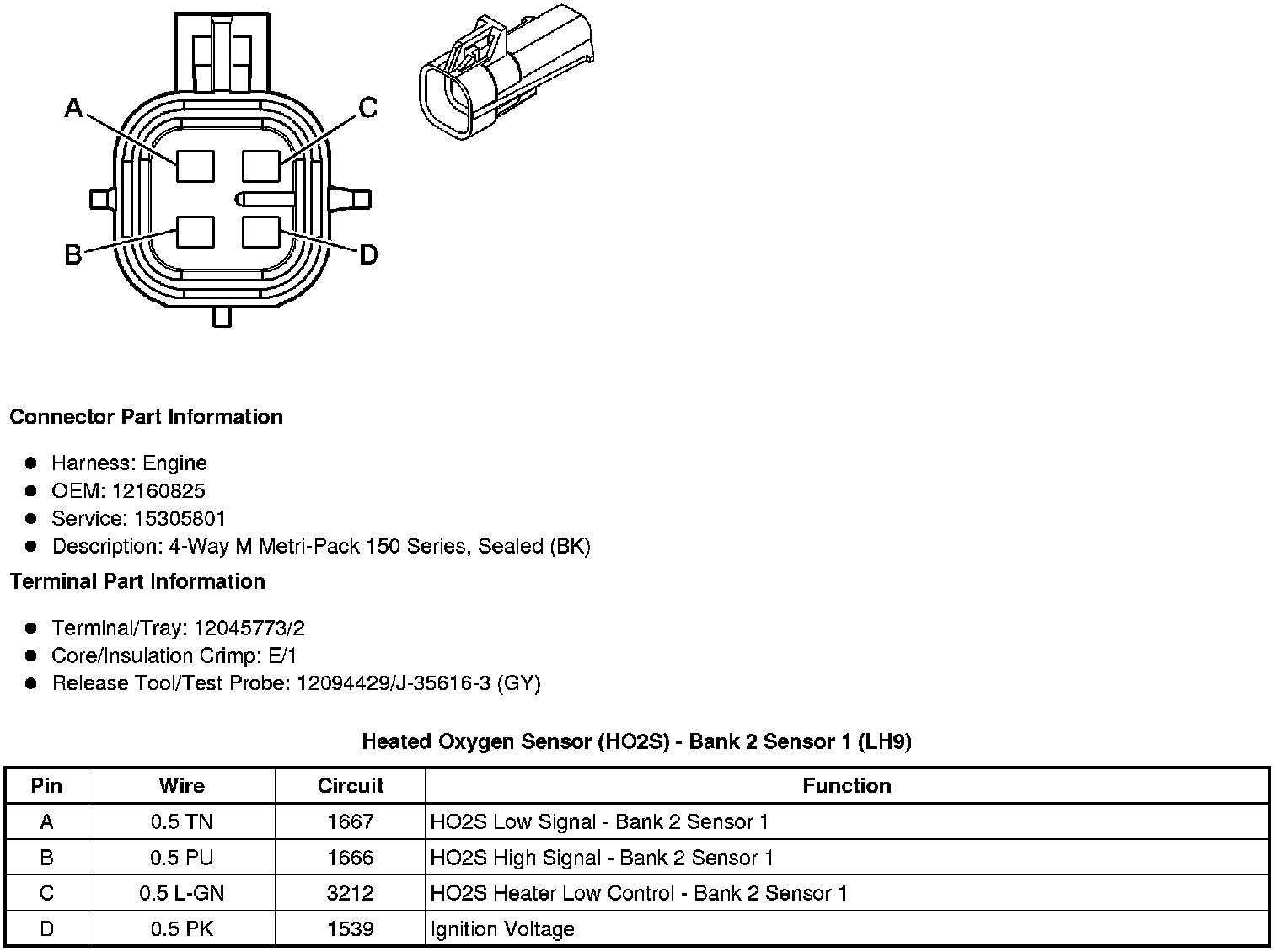

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH9)

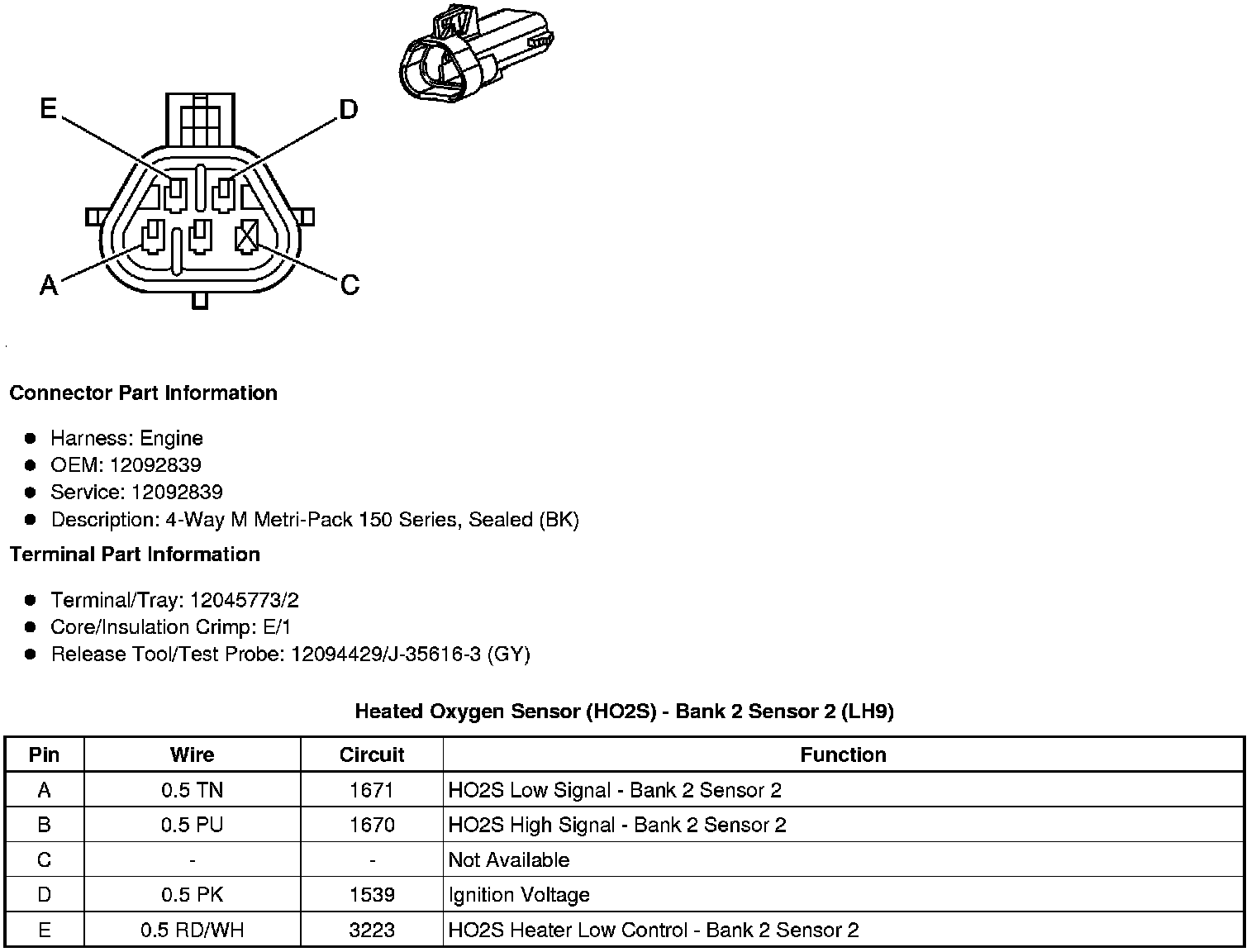

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LH9)
