X510
X510

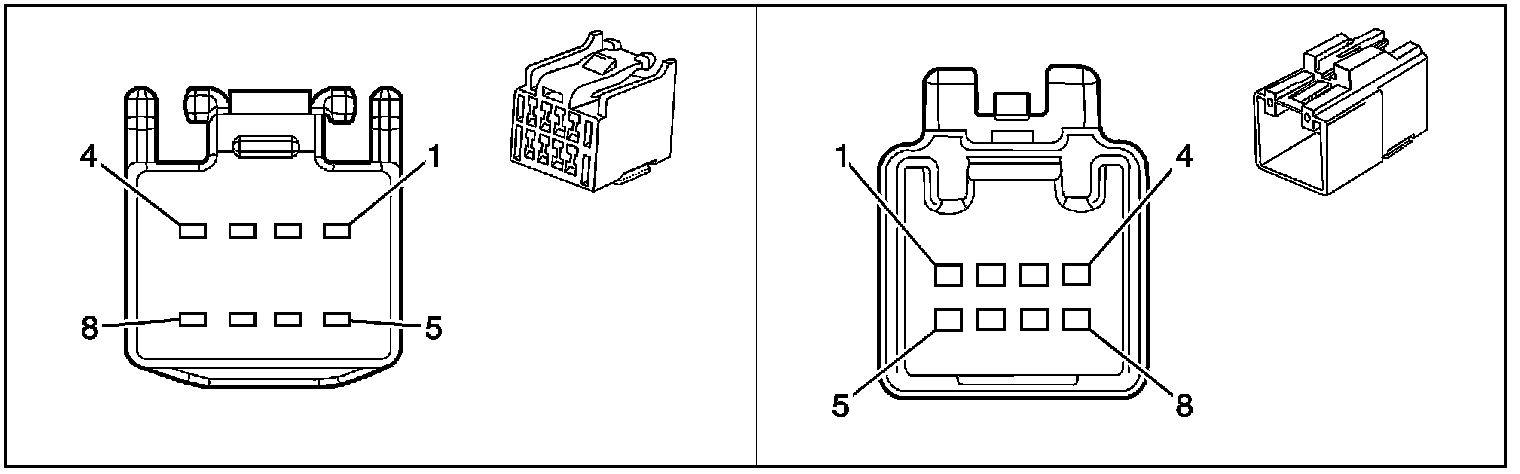

Inline Harness Connector End Views

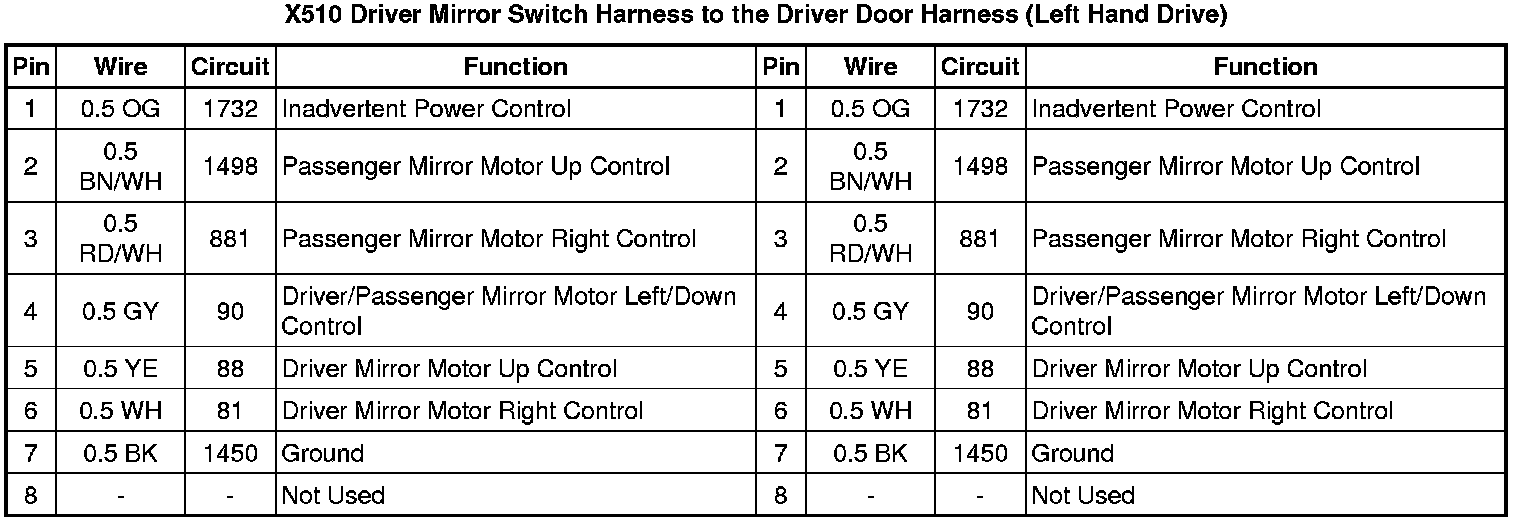

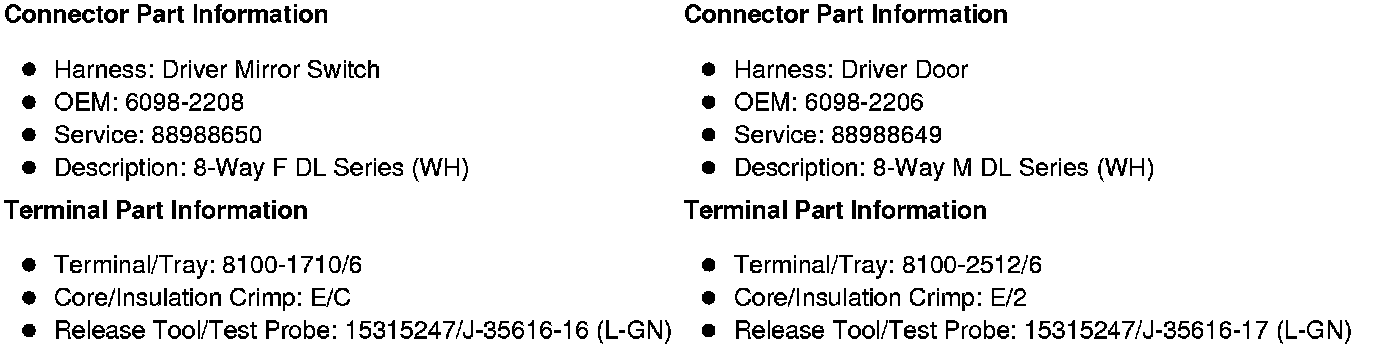

X510 Driver Mirror Switch Harness to the Driver Door Harness (Left Hand Drive)
