Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

Rear of Frame Components




1 - Fuel Tank Pressure Sensor
2 - Fuel Pump and Sender Assembly
3 - Fuel Pump Flow Control Module
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Chassis Harness
6 - Fuel Tank

Wheel Hub Components




1 - Wheel Speed Sensor (WSS) - Right Front
2 - Wheel Speed Sensor (WSS) - Right Front Connector
3 - Wheel Speed Sensor (WSS) - Right Rear
4 - Wheel Speed Sensor (WSS) - Right Rear Connector
5 - Wheel Speed Sensor (WSS) - Left Rear
6 - Wheel Speed Sensor (WSS) - Left Rear Connector
7 - Wheel Speed Sensor (WSS) - Left Front
8 - Wheel Speed Sensor (WSS) - Left Front Connector

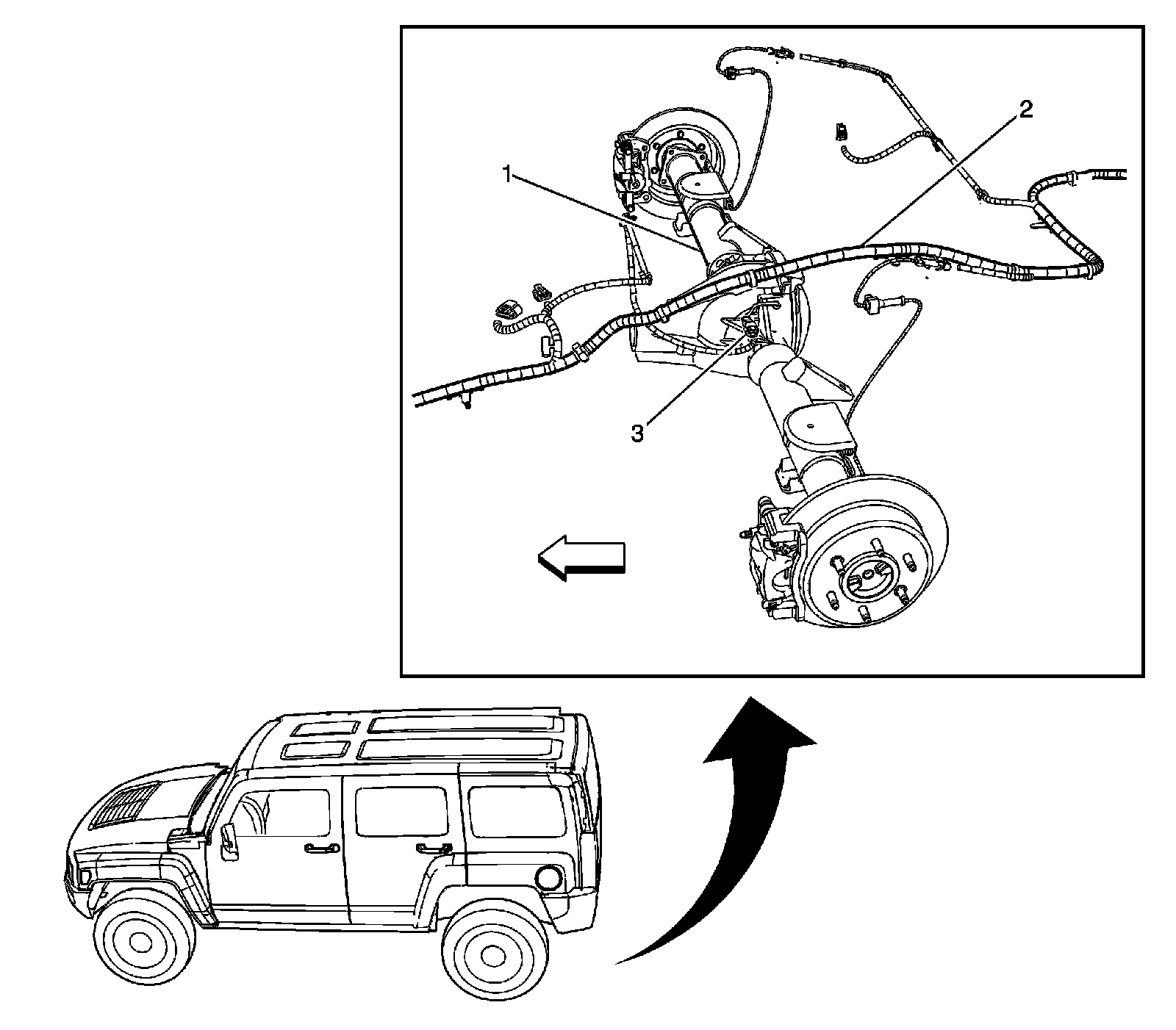

Rear Axle Components




1 - Rear Axle
2 - Chassis Harness
3 - Differential Lock Actuator (G94)
