Marker Lamp: Diagrams




Component Connector End Views

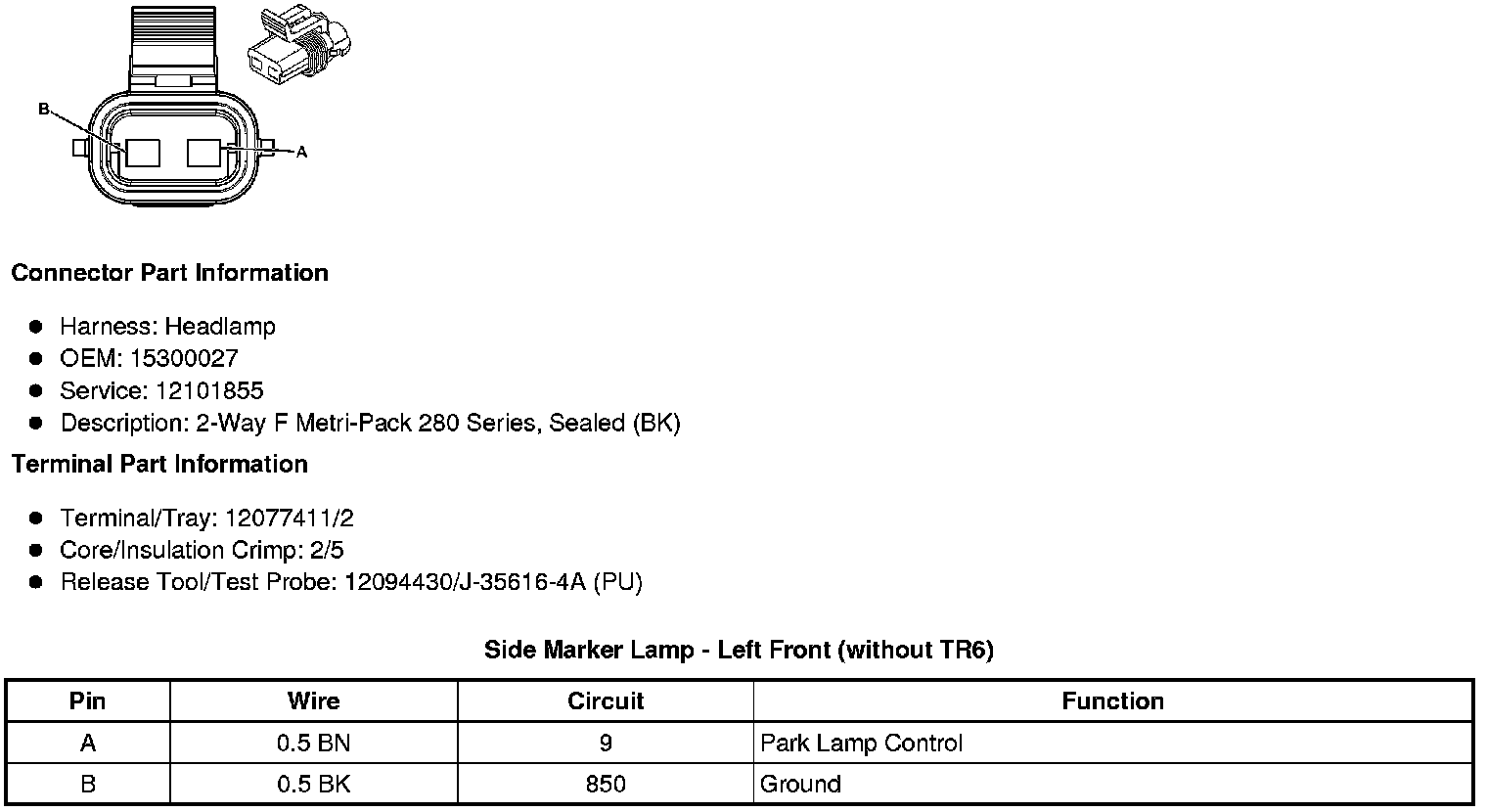

Side Marker Lamp - Left Front (without TR6)





Side Marker Lamp - Right Front (without TR6)
