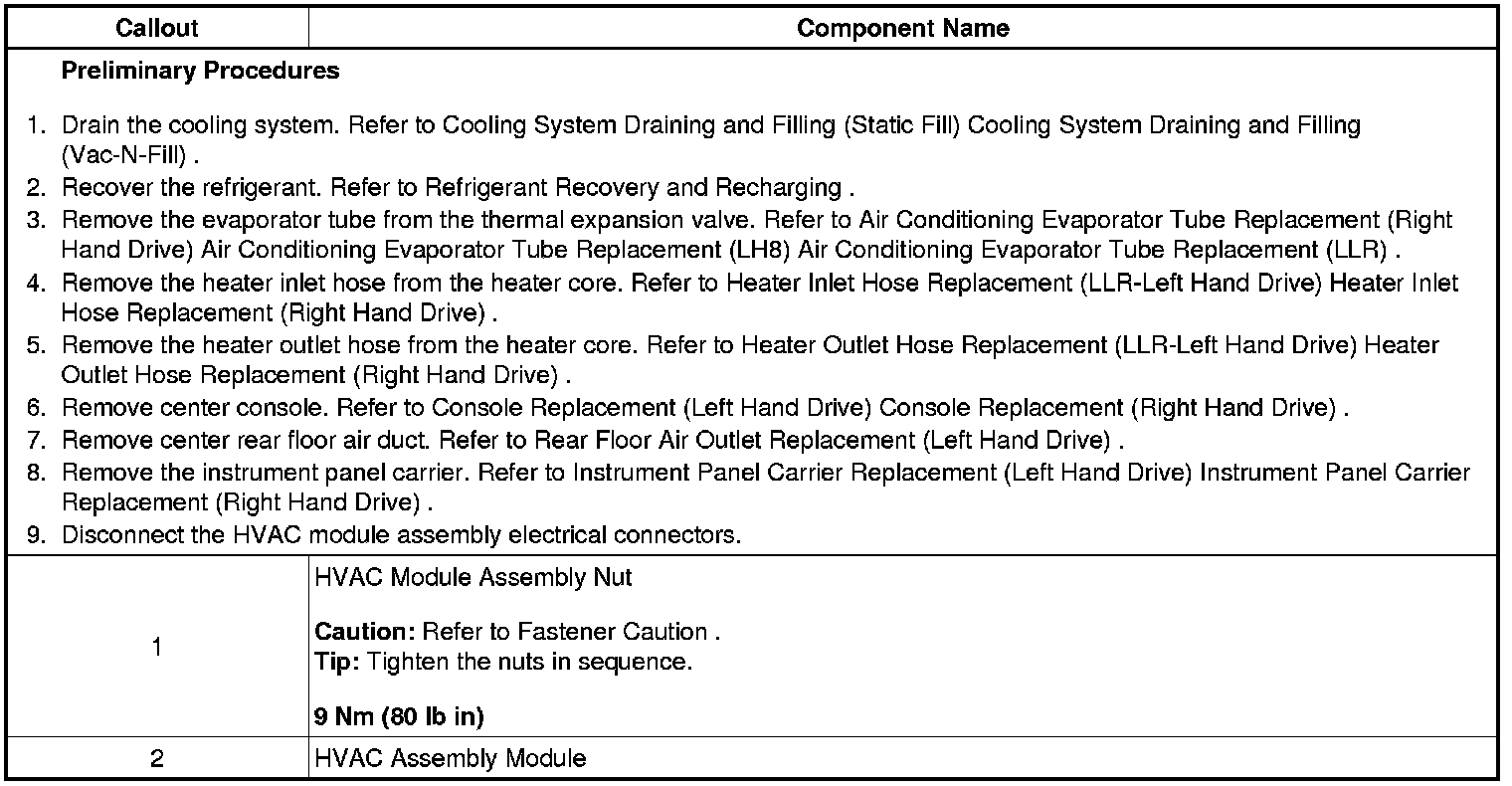

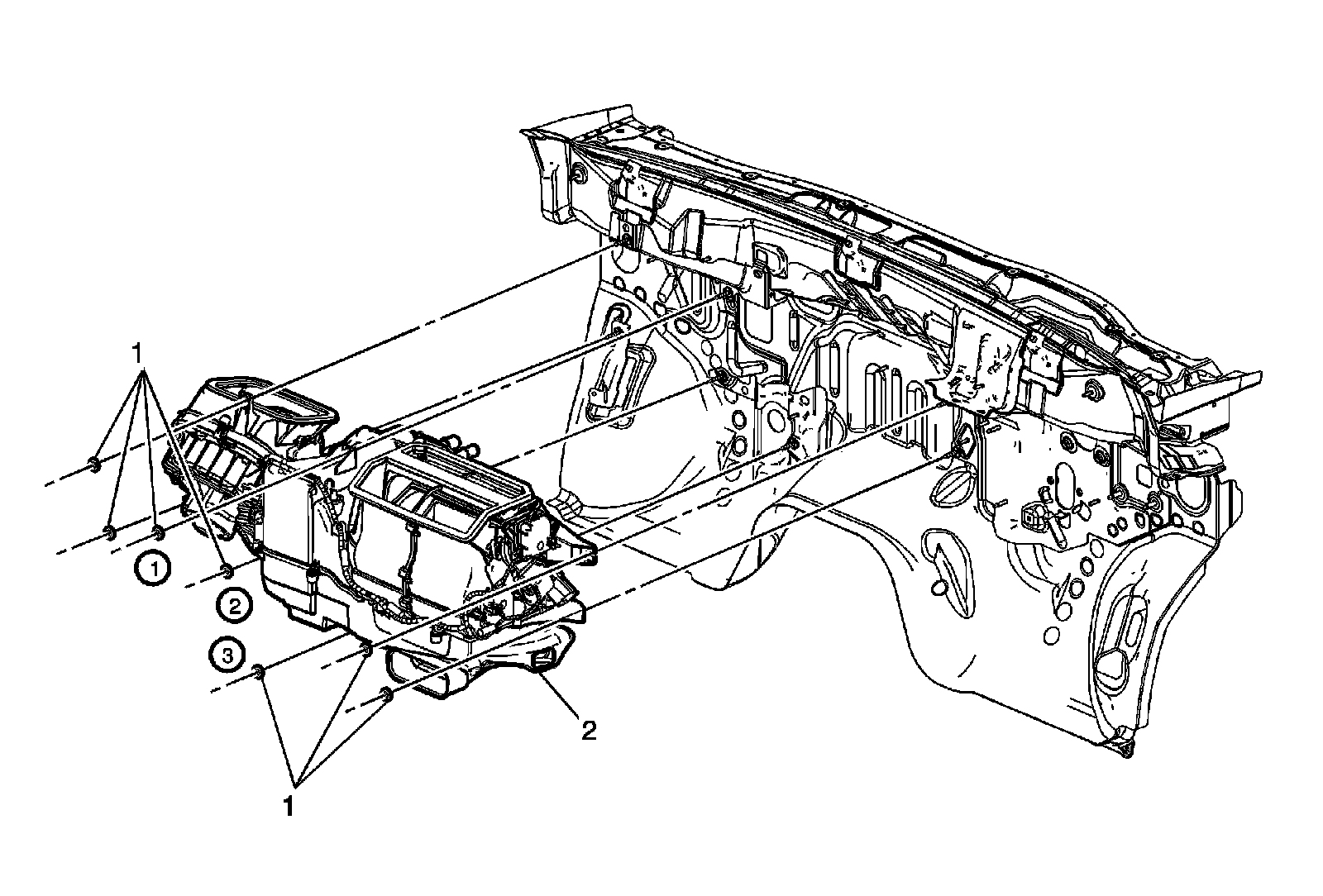

Air Conditioning and Heater Module Assembly Removal and Installation (Right Hand Drive)




Air Conditioning and Heater Module Assembly Removal and Installation (Right Hand Drive)
