Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Service and Repair

Expansion Block/Orifice Tube: Service and Repair

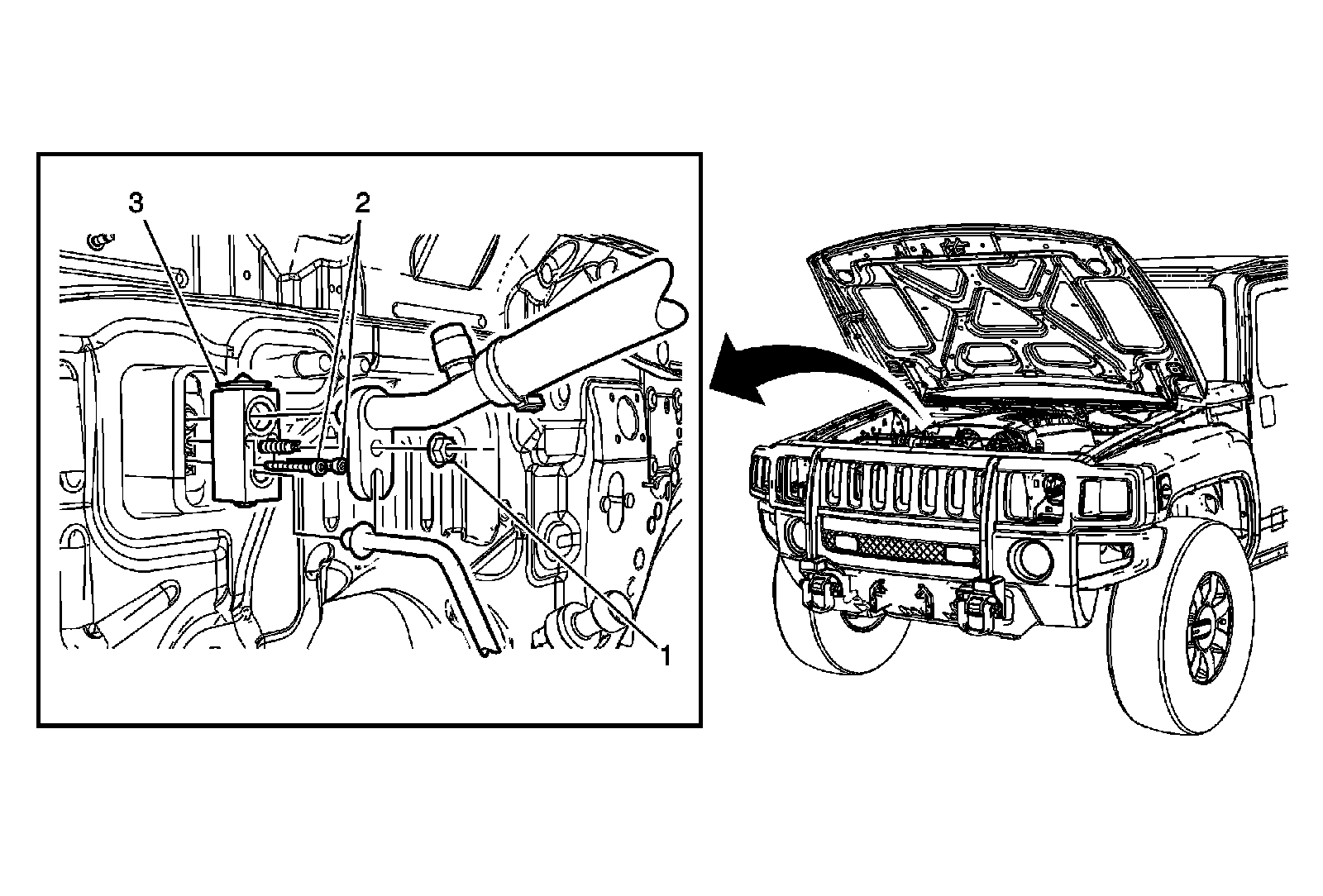

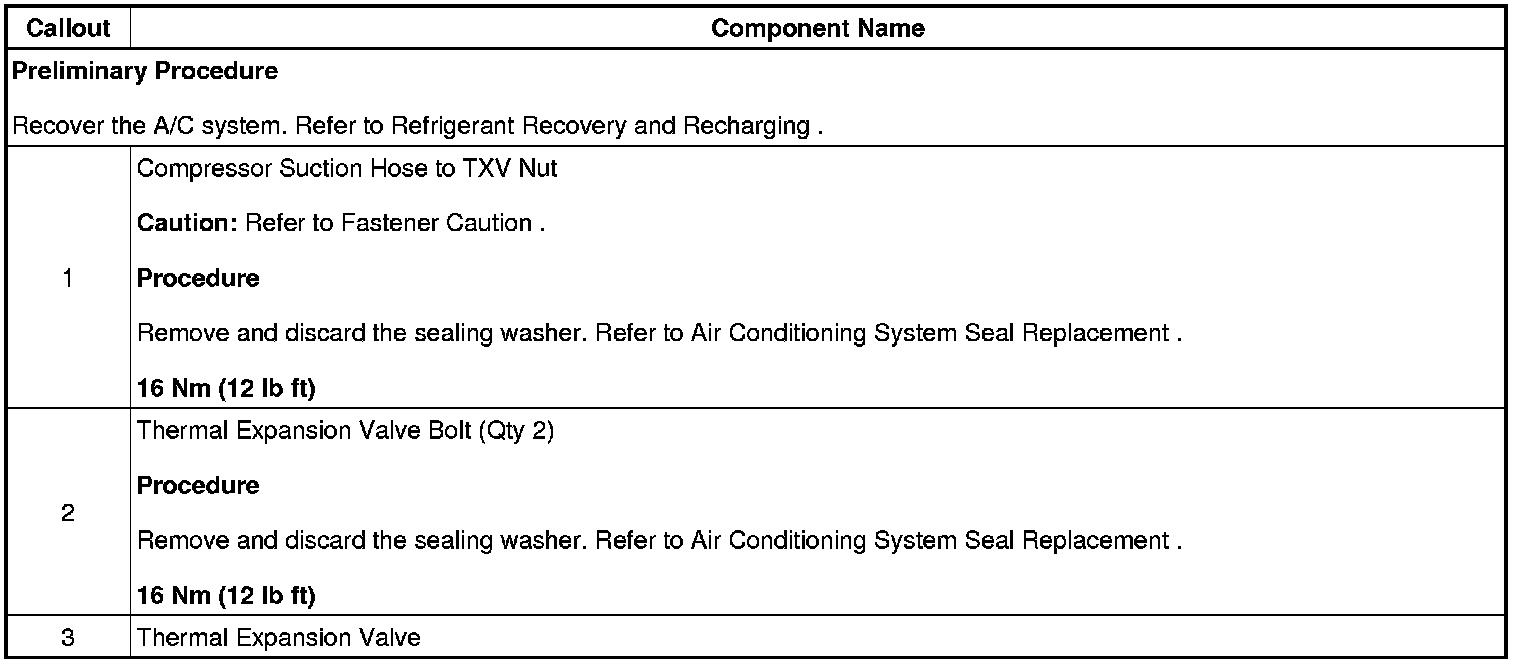

Air Conditioning Evaporator Thermal Expansion Valve Replacement (Left Hand Drive)
