Compressor Clutch Hub: Service and Repair

Compressor Clutch Plate/Hub Assembly Replacement (LLR)

Removal Procedure

1. Remove the skid plate. Refer to Oil Pan Skid Plate Replacement (Oil Pan Skid Plate Replacement).
2. Remove the engine belt. Refer to Drive Belt Replacement (Without A/C) (Drive Belt Replacement (Without A/C))Drive Belt Replacement (With A/C) (Drive Belt Replacement (With A/C)).

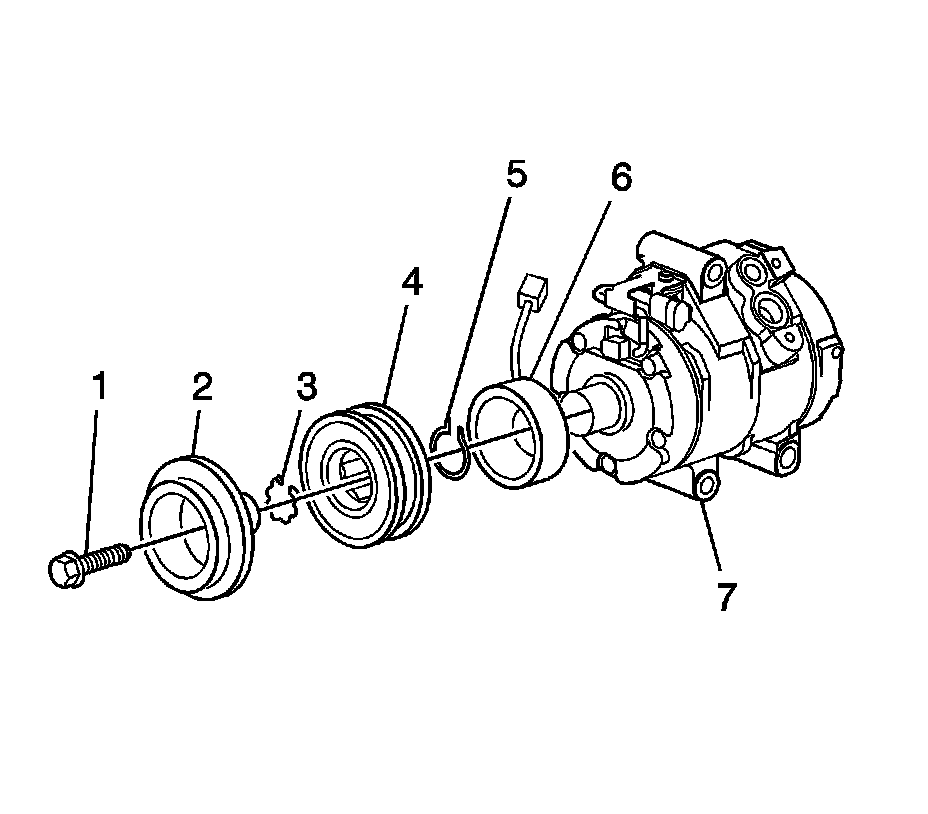

3. Remove the clutch plate retaining bolt (1).
4. Remove the cooling fan. Refer to Fan Replacement (LLR) (Fan Replacement)Fan Replacement (LH9) (Fan Replacement).
5. Remove the clutch plate assembly (2).
6. Remove the clutch hub/bearing snap ring (3).
7. Remove the clutch hub/bearing assembly (4).

Installation Procedure




1. Install the clutch hub/bearing assembly (4).
2. Install the clutch hub/bearing snap ring (3).
3. Install the clutch plate assembly (2).

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the clutch plate retaining bolt (1).

Tighten the bolt to 18 Nm (13 lb ft).

5. Install the cooling fan. Refer to Fan Replacement (LLR) (Fan Replacement)Fan Replacement (LH9) (Fan Replacement).
6. Install the engine belt. Refer to Drive Belt Replacement (Without A/C) (Drive Belt Replacement (Without A/C))Drive Belt Replacement (With A/C) (Drive Belt Replacement (With A/C)).
7. Install the skid plate. Refer to Oil Pan Skid Plate Replacement (Oil Pan Skid Plate Replacement).
