Home >> Hummer >> 2010 >> H3 L5-3.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Exhaust System >> Heat Shield >> Service and Repair >> Exhaust Pipe Heat Shield Replacement (H3T)

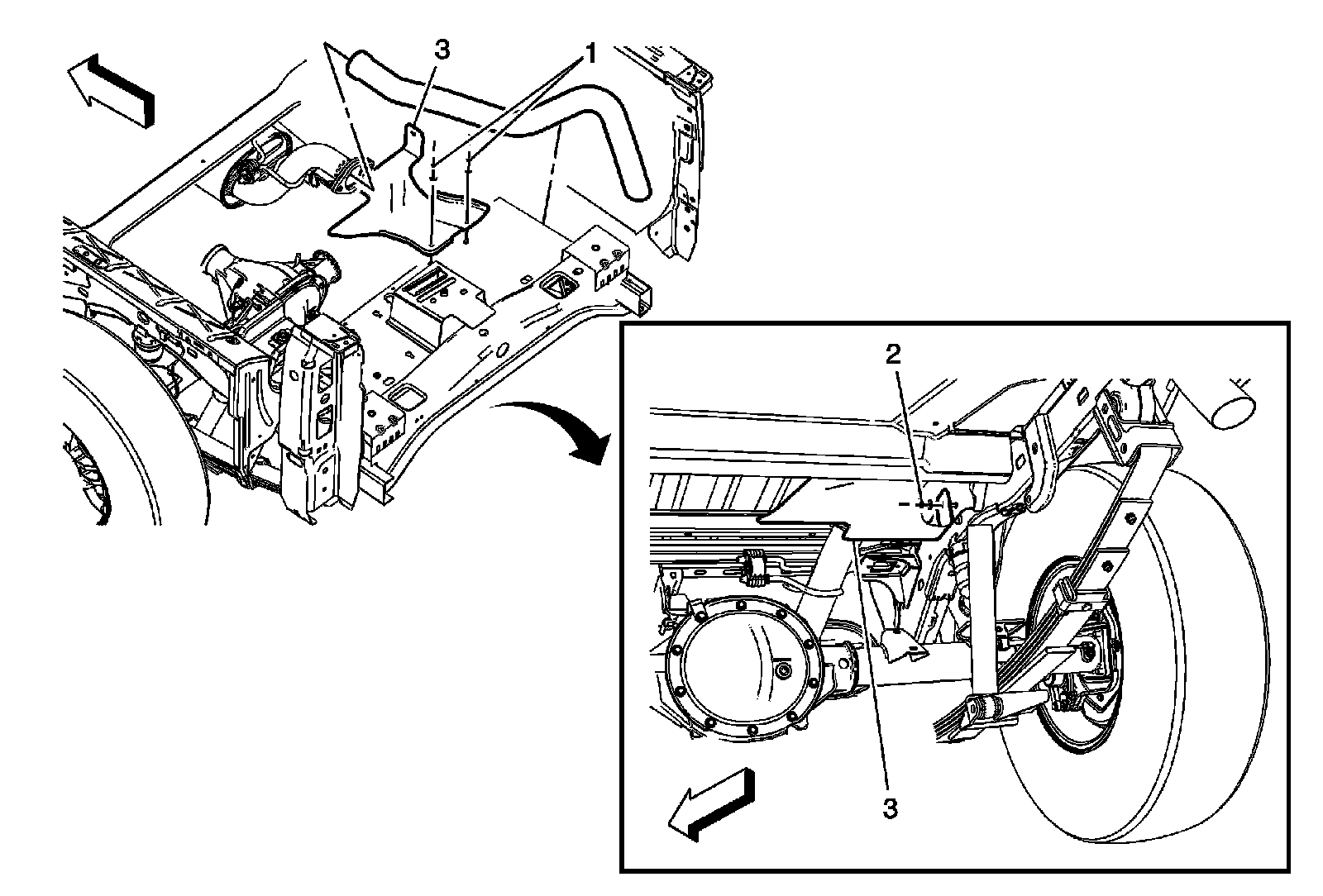

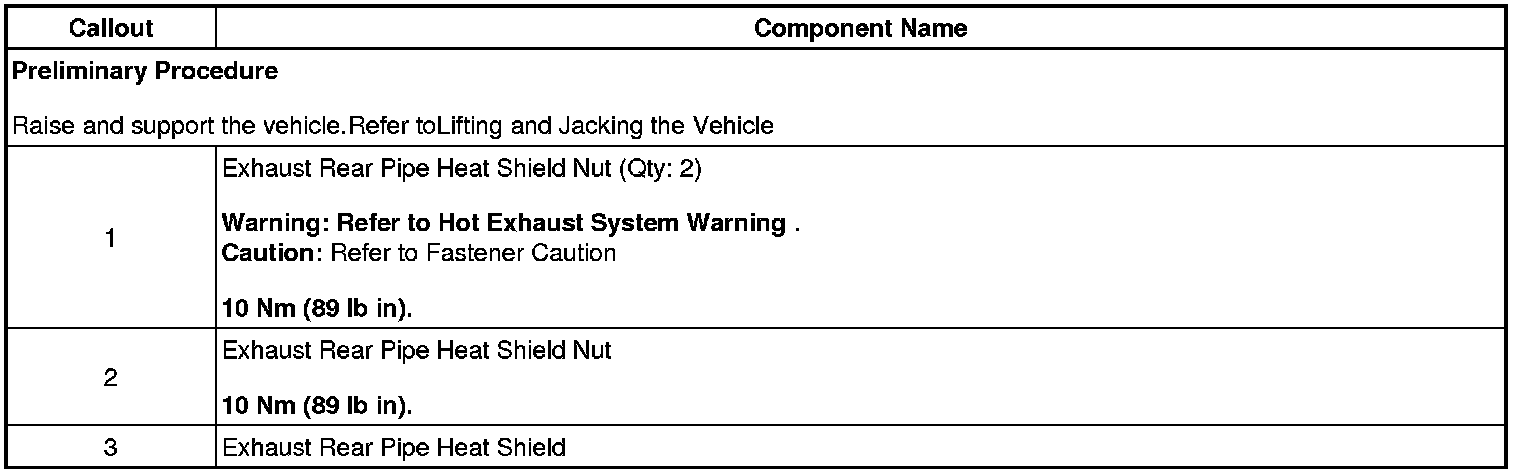

Exhaust Pipe Heat Shield Replacement (H3T)




Exhaust Pipe Heat Shield Replacement (H3T)
