Exhaust Pipe/Muffler Hanger: Service and Repair

Exhaust System Insulator, Hanger, Bracket Replacement

Removal Procedure
Warning: Refer to Exhaust Service Warning (Exhaust Service Warning).

Warning: Refer to Protective Goggles and Glove Warning (Protective Goggles and Glove Warning).


1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).





Note: Service the exhaust hangers individually in order to retain the support of the exhaust system.

Note: Do not use oil base lubricants.

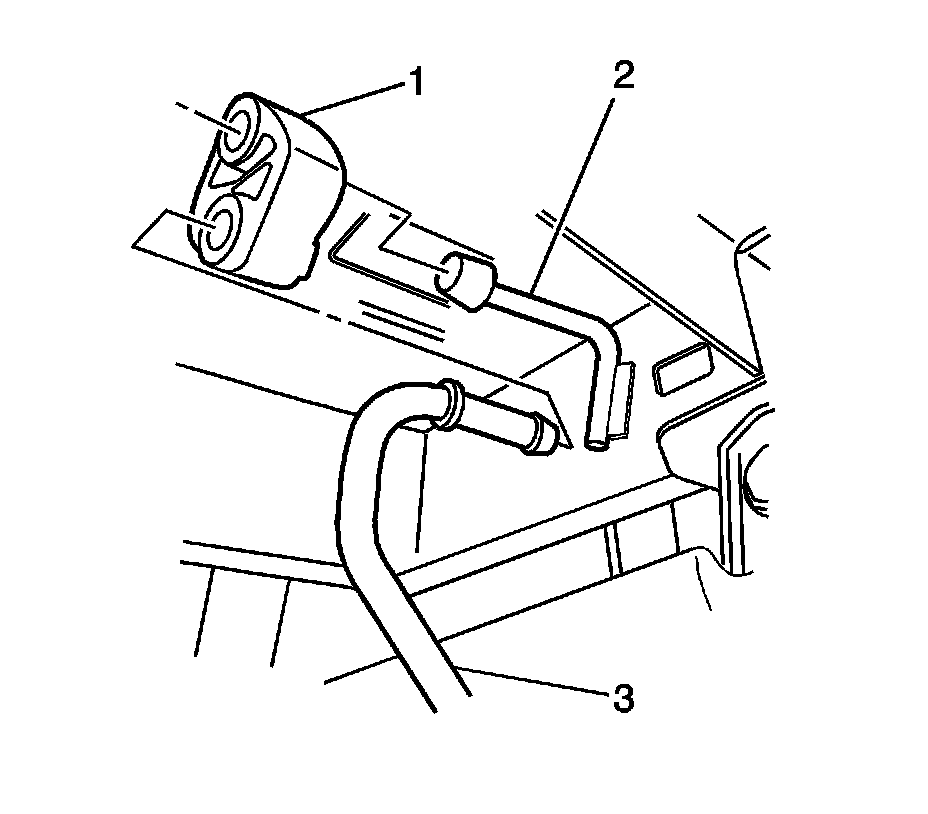

2. Apply a soapy solution to the following in order to ease the removal of the hanger (1):

* The frame support bracket rod (2)
* The exhaust pipe hanger rod (3)

3. Pry the exhaust pipe hanger (1) free from the following:

* The frame support bracket rod (2)
* The exhaust pipe hanger rod (3)

Installation Procedure





Note: Do not use oil base lubricants.

1. Apply a soapy solution to the following in order to ease the installation of the hanger (1):

* The frame support bracket rod (2)
* The inner diameter of the exhaust pipe hanger (1)
* The exhaust pipe hanger rod (3)

2. Press the exhaust pipe hanger (1) over the following:

* The frame support bracket rod (2)
* The exhaust pipe hanger rod (3)

3. Lower the vehicle.
