90. Heater Inlet Pipe Installation

Heater Inlet Pipe Installation

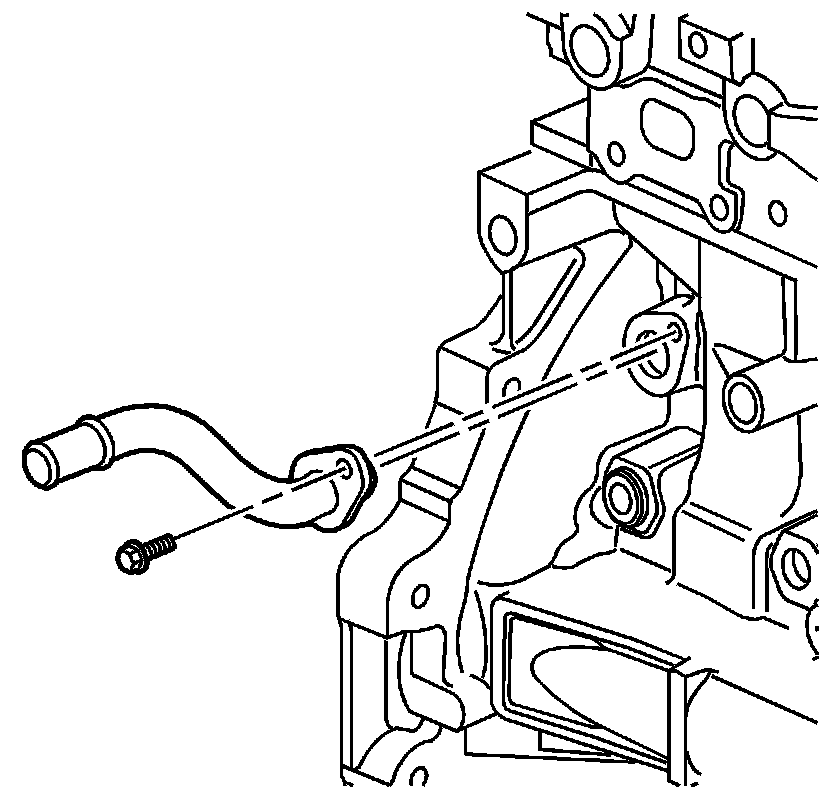

1. Install the heater inlet pipe.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the heater inlet pipe bolt. Tighten the heater inlet pipe bolt to 10 Nm (89 lb in).
