21. Crankshaft Front Oil Seal Removal

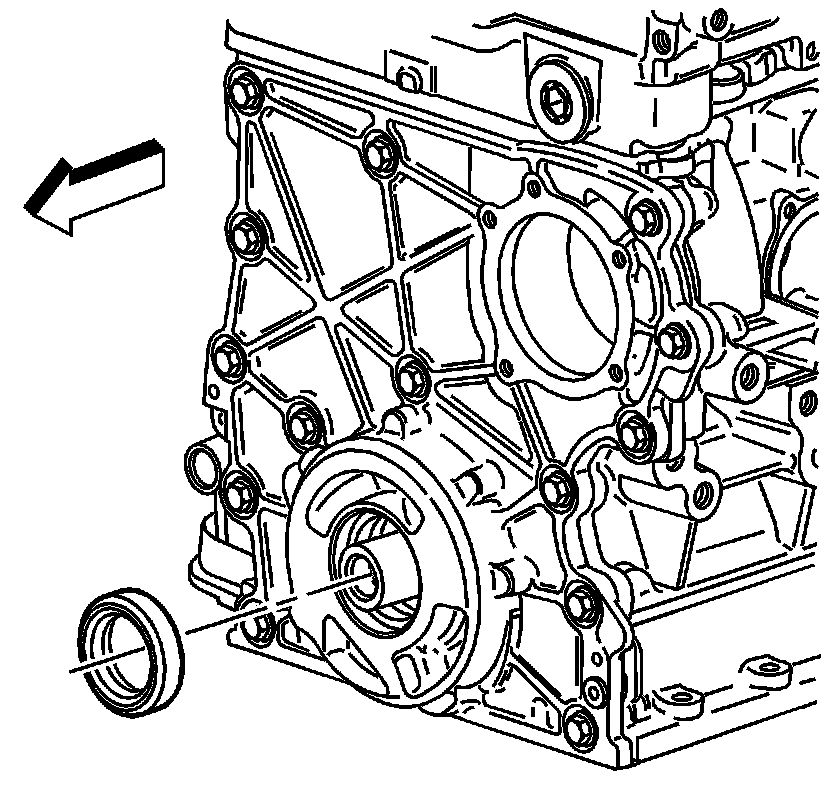

Crankshaft Front Oil Seal Removal





Important: Do not damage the engine front cover or the crankshaft.


Pry out and discard the crankshaft front oil seal using a suitable tool.
