Automatic Transmission

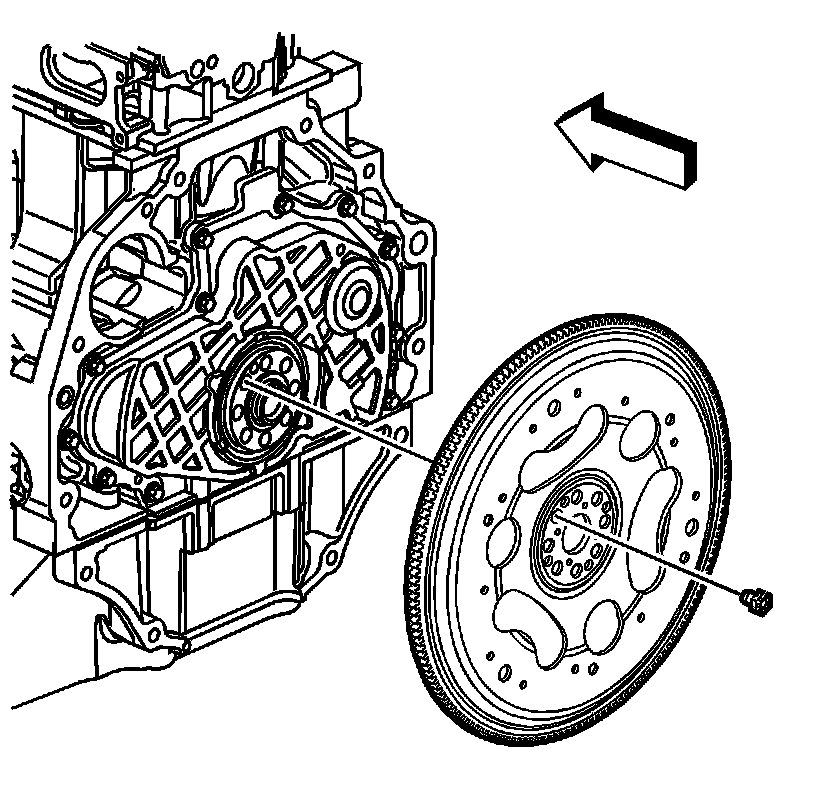

Engine Flywheel Removal (Automatic Transmission)




1. Remove and discard the flywheel bolts.
2. Remove the flywheel.
