Coolant Heater Replacement

Coolant Heater Replacement (LLR)

Removal Procedure




1. Raise and support the vehicle only high enough to access the coolant heater (6) through the wheelhouse. Refer to Lifting and Jacking the Vehicle (Service and Repair).
2. Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Service and Repair).

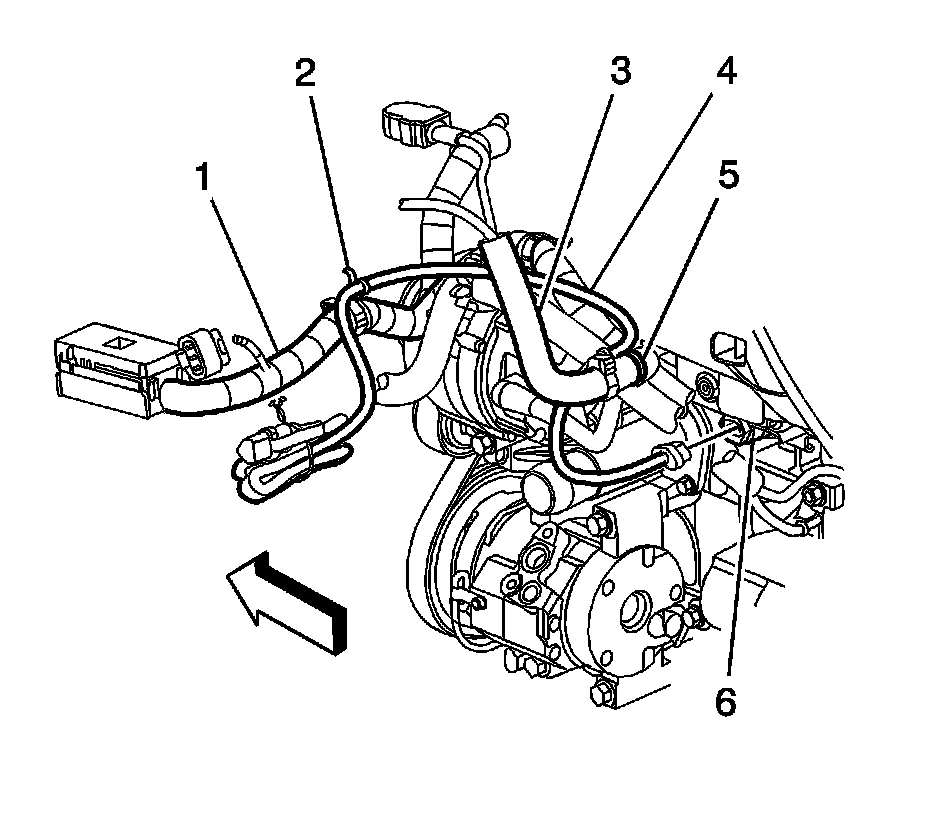

3. Disconnect the coolant heater cord (4) from the coolant heater (6).
4. Remove the coolant heater from the engine block.

Installation Procedure

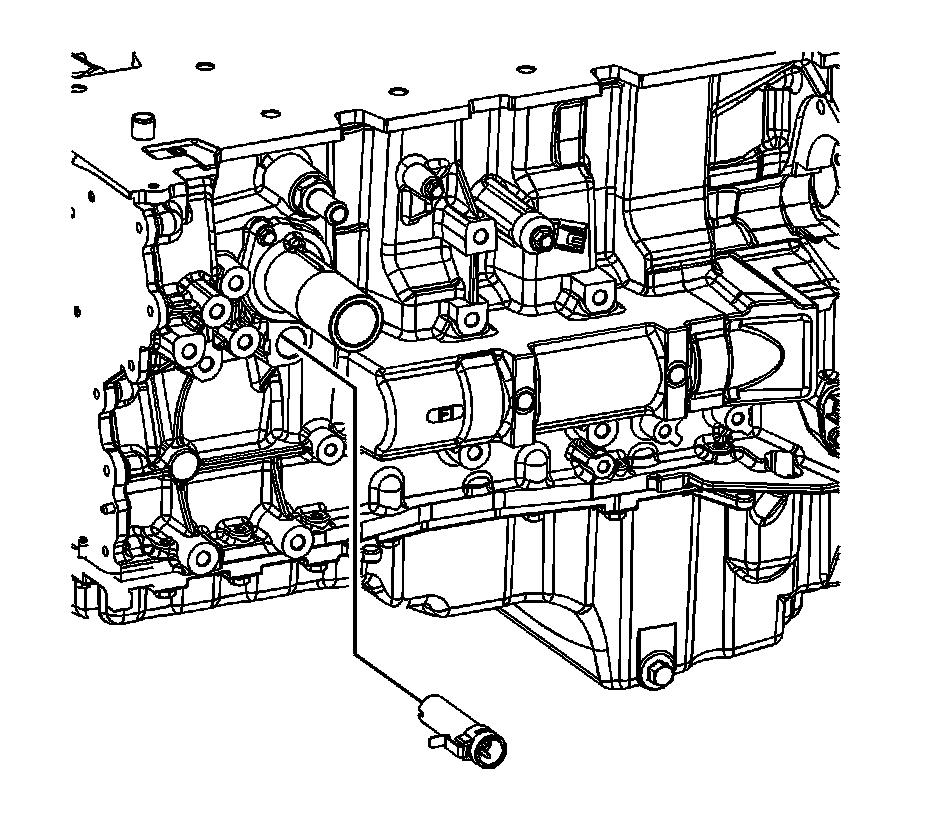

1. Locate the block heater hole on side the block.
2. While lining up the retaining clip on the block heater to notch on block, insert the block heater and snap into place.




3. Connect the coolant heater cord (4) to the coolant heater (6).
4. Install the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Service and Repair).
5. Lower the vehicle.
