Door Harness Routing

Harness Routing Views

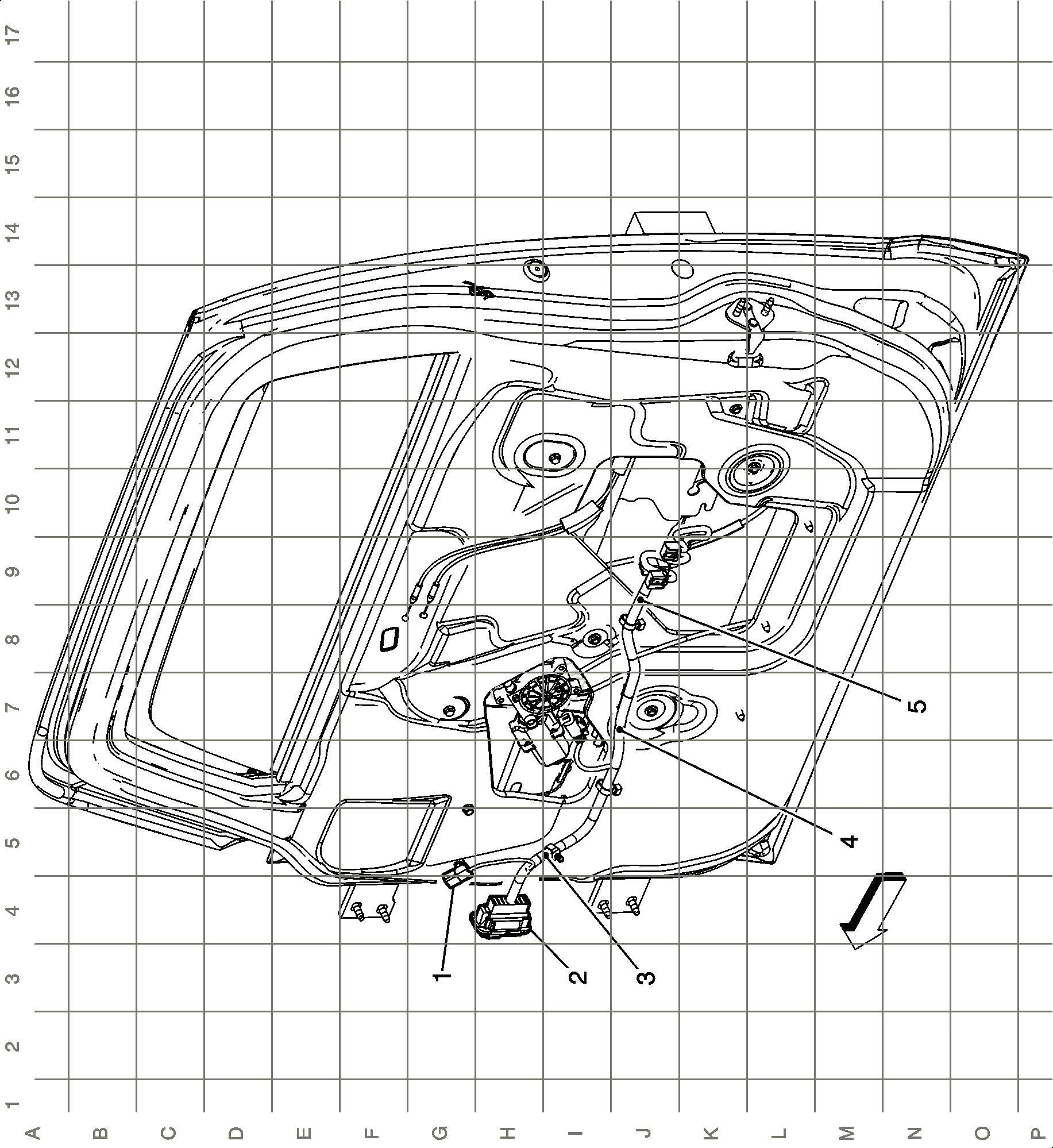

Left Front Door Harness Routing (Left Hand Drive)




1 - X510
2 - X500
3 - J529
4 - J590
5 - J514

Right Front Door Harness Routing (Left Hand Drive)




1 - X610
2 - X600

Right Front Door Harness Routing (Right Hand Drive)




1 - X610
2 - X600
3 - J629
4 - J690
5 - J614

Left Front Door Harness Routing (Right Hand Drive)




1 - X510
2 - X500

Left Rear Door Harness Routing




1 - X700
